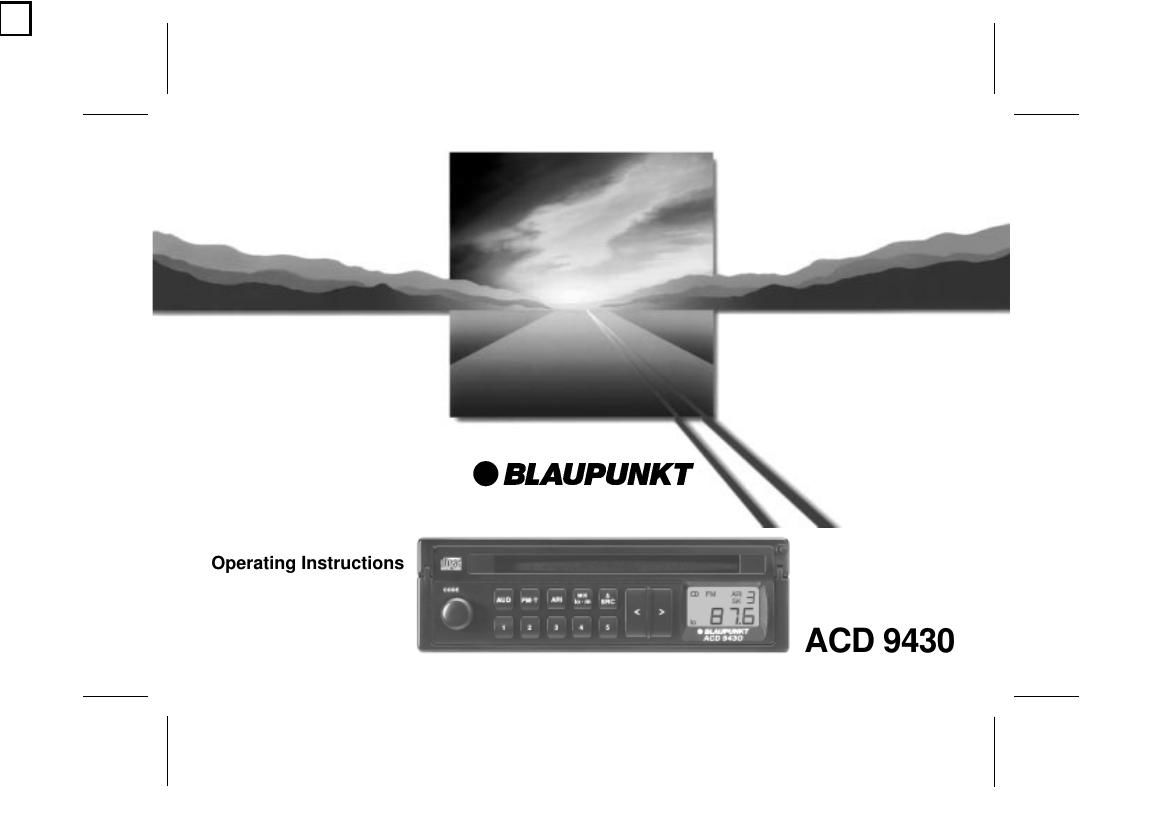

Blaupunkt ACD 9430 Owners Manual
This is the 10 pages manual for Blaupunkt ACD 9430 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Blaupunkt ACD 9430 Owners Manual (Ocr-read)
Page 1
2 8 6 3 4 5 1 10 9 7 3 2 Radio 3 CD 1 j i 9 b c 9 d a g f e h QuickOut a b QuickOut
Page 2
12 Front Panel Description 1ON/OFF Switch on the set by turning knob 1. 2 AUD button (sound control/broader interior sound impression) BAS – Adjustment of the low frequen- cies via buttons 7. TRE – Adjustment of the high frequen- cies via buttons 7. BAL – Adjustment of the left/right volu- me via buttons 7. FAD – Adjustment of the front/rear vo- lume via buttons 7. 3 FM-T button ( Frequency Modulation) FM button This button is used for shifting between the different individual FM storage le- vels and T ( Travelstore). 4 ARI button Use this button to activate the ARI func- tion. 5 MIX-lo-m button CD: Use this button to play the CD titles in an arbitrary order. Radio: Button to shift between the normal and high-sensitivity manual station seek mode, and mono switch. 6 - SRC button (Sou rce) To shift between the individual audio sources, e.g. CD ♦ Radio ♦ CD. By pressing the - SRC button 6 for more than than 3 seconds, the CD is ejected. 7 <> rocker switch Radio: Automatic station selection CD: Skipping to next/previous title Pressing the rocker switch < > longer than 1 sec. activates fast forward (cue) or fast reverse (review). 8 CD slot Insert the CD with the label side sho- wing to the top. 9 Display : Preset buttons Storing a station: Keep button depressed during radio operation until the station becomes audible again. Recalling a station: Press button briefly.
