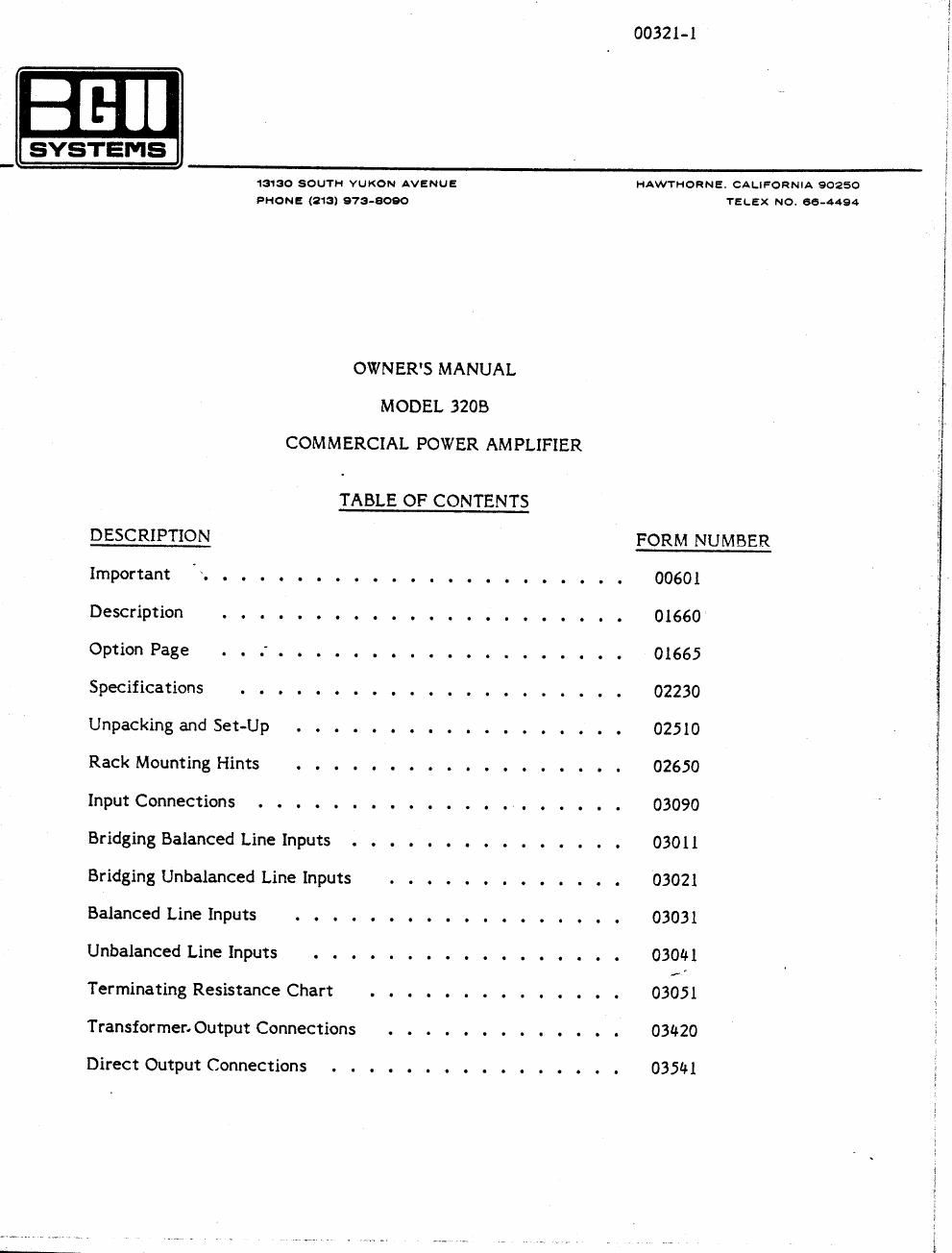

Page 1
00321-1 5
13130 SOUTH vuxou AVENUE HAWTHORN: CALIFonNIA 90250
PHONE (213) 973-3090 TELEX no. 66-4494
OWNER'S MANUAL
MODEL 3205
COMMERCIAL POWER AMPLIFIER
TABLE OF CONTENTS
DESCRIPTION FORM NUMBER 1
important.......................00601
Description 01660
OptionPage 01665
Specifications 02230
Unpacking and Set-Up ..... . . . . . . . . . . . . . 02510
RackMountingHints 02650
InputConnections 03090 7 i
Bridging Balanced Line Inputs . . . . . . . . . . . . . . . 03011
Bridging Unbalanced Line Inputs . . . . . . . . . . . . . 03021
BalancedLinelnputs 03031
i
x
1
I
i
1
i
1
r
Unbalanced Line Inputs . . . . . . . . . . . . . . . . . 030141
Terminating Resistance Chart . . . . . . . . . . . . . . 03051
TransformenOutput Connections . . . . . . . . . . . . . 03420
Direct Output Connections . . . . . . . . . . . . . . . . 035M
Page 2
00321-2
Damping Factor Chart . . ................. 03510
Speaker Fuse Nomograph ....... . . ......... 03530
25/70v Line Applications . . . . . . . . . . . ...... . 03241
25/70v Line vs. Impedance Chart . . . . . . . . . . . . . . 03250
Power Mains Connection . . . . . . ......... . . . 04000
Operating Precautions . . . . . . . . . . . . . . . . . . . 05001
Circuit Description, 3208 . . . . . . . . . . . . . . . . . 06271
Schematic, Amplifier Module . . . . . . . . . . . . . . . . 12710/11
Schematic, Chassis . . . . . . . . . . . ..... . . . . 12720/21
BlockDiagram ...... ...12730
PartsList ........ 12740
Power Mains Voltage Conversion . . . . . . . . . . . . . . 00500
Warranty . . . ............... . . . . . . 17000
Service Authorization Form . . . . . . . . . ....... 17020
Warranty Registration Form ..... . . . . . . . . . . . 17030 _
