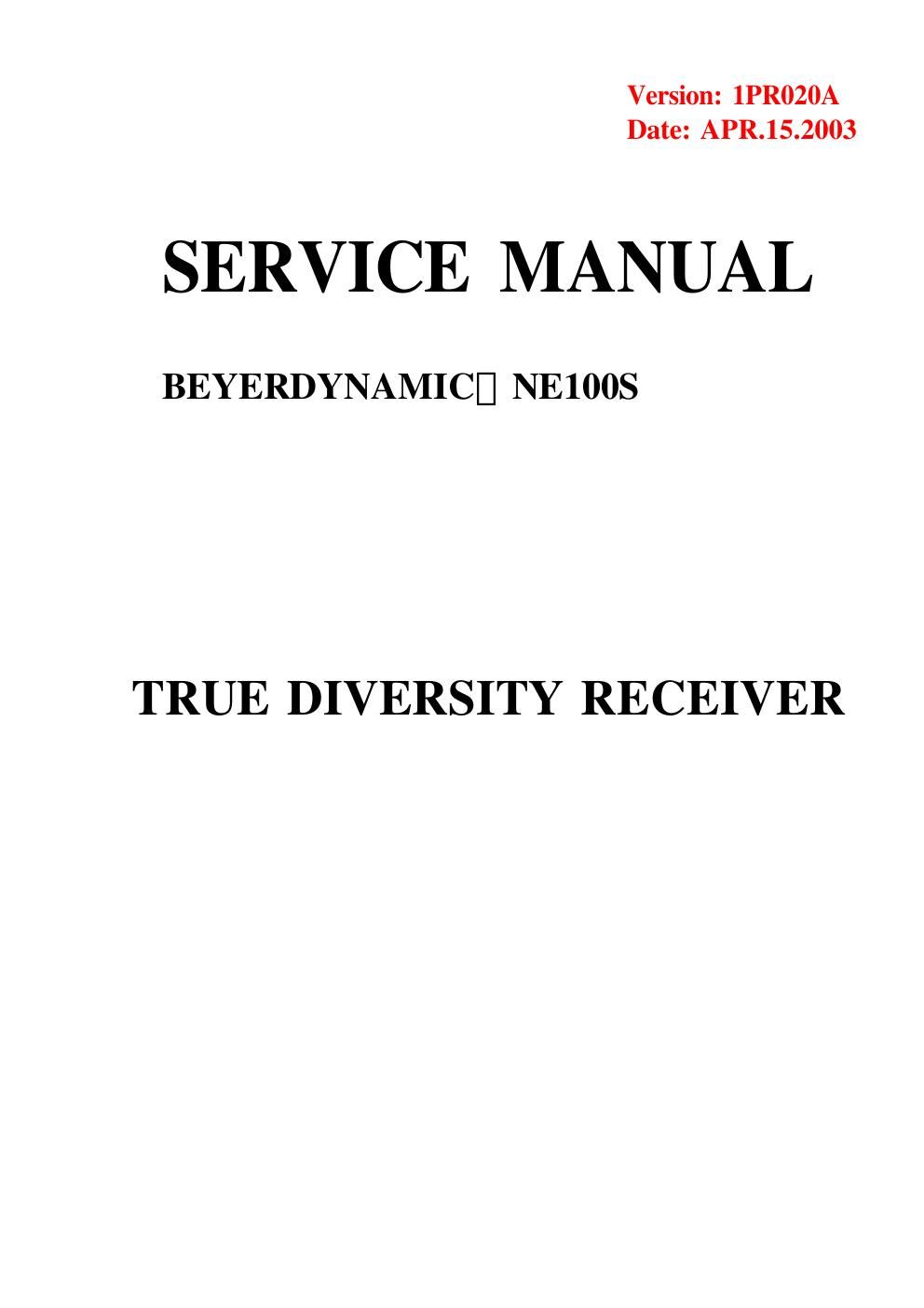

Page 1
Version: 1PR020A
Date: APR.15.2003
SERVICE MANUAL
BEYERDYNAMICI] NEIOOS
TRUE DIVERSITY RECEIVER
Page 2
EQUIPMENT DESCRIPTION
SPECIFICATIONS FOR NE100$ RECEIVER
ITEM SPECIFICATIONS
1. FREQUENCY RANGE 174.0 ~ 216.0MHz
2. FREQUENCY STABILITY 10.005% 0° ~ +50°C
3. SENSITIVITY +12 dBuV FOR >80dB S/N
4. IMAGE REJECTION >63dB
5. SPURIOUS REJECTION >80dB
6. INTERMODULATION REJECTION 63dB
(S/N:30dB THREE SG MODE) >
7. ADJACENT CHANNEL REJECTION 80 dB
(WHEN MISTUNED BY 350KHz) >
8. SPURIOUS EMISSIONS <»75dBm
9. SQUELCH , ADJUSTABLE 12dBuV - 45dBuV
10. DE»EMPHASIS 50113
11. FREQUENCY RESPONSE 50Hz TO 15KHZi-3dB
1. DISTORTION LESS THAN 0.5% (AT 1KHz)
12. ULTIMATE S/N 100dB MIN
13 OUTPUT LEVEL UNBALANCED 870mV RMS open load
' BALANCED 300mV RMS open load
14. POWER SUPPLY DC 12-15V
15. CURRENT DRAIN APPROX. 250mA
16. DIMENSION (m/m) 210(L) ><170(W)><44(H)
17. WEIGHTS APPROX. 6509
18. ENVIRONMENTAL FULL SPECS -10° ~ 60°C
R518|028
