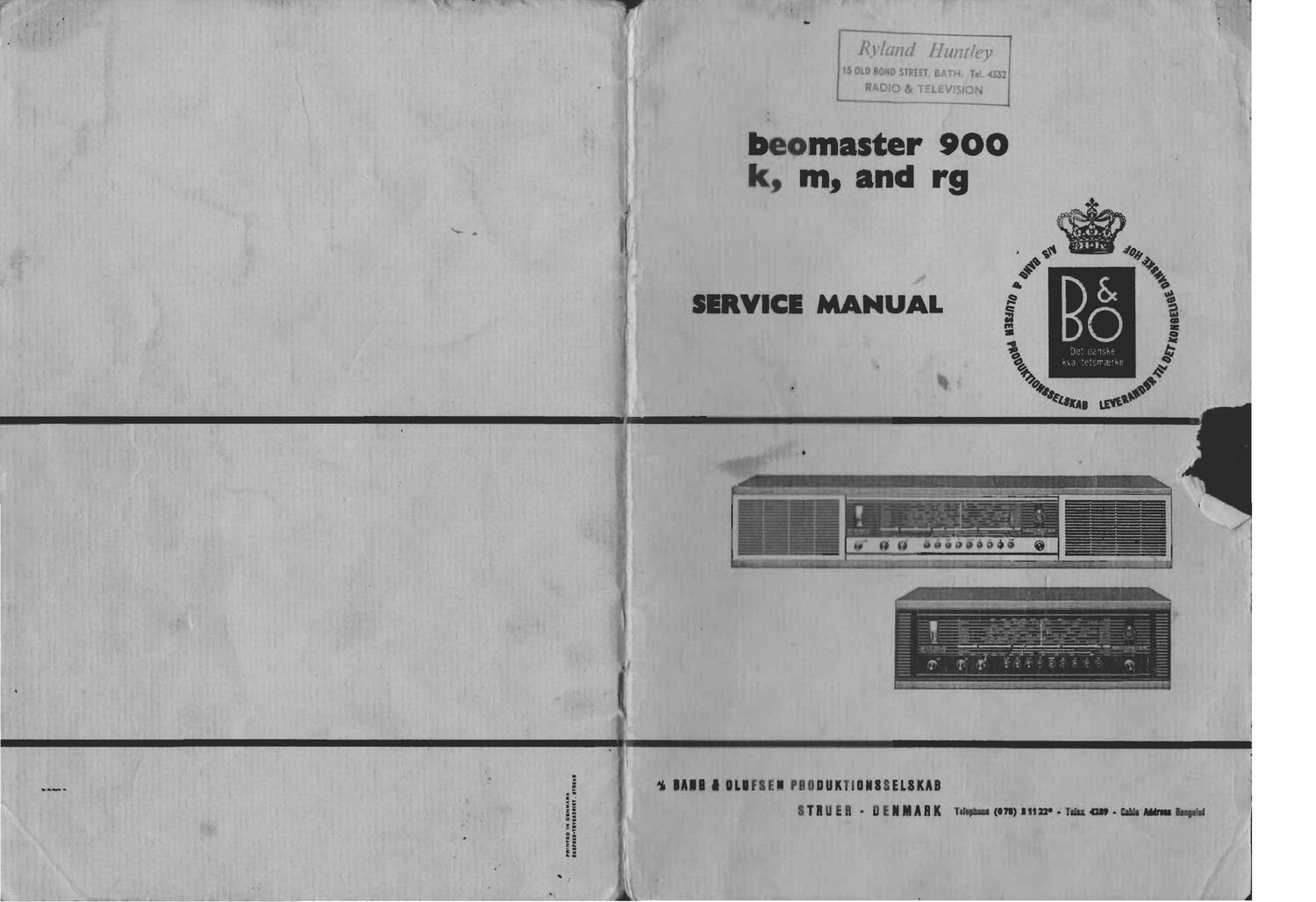

Bang Olufsen Beomaster 900 Service Manual

This is the 27 pages manual for Bang Olufsen Beomaster 900 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 27
Bang Olufsen Beomaster 900 Service Manual

Extracted text from Bang Olufsen Beomaster 900 Service Manual (Ocr-read)


Page 2

95 BEOMASTER 900 1

name

TECHNICAL DATA

AM aerial: Ferrite aerial for LW,MW,FW;push-button switching to

external aerial.

Channel separation: Better than 28 dB.

Dimensions,l\/lodel K: 291/4 in.wide, 59/16 in.high,9 in. deep

(744 x 142 X 229 mm).
Dimensions, Model M: 17 in. wide, 5 9/16 in. high, 9 in. deep
(432 X 142 x 229 mm).

External-speaker impedance: 3-59, switching provided in connector soc-
kets.DIN sockets for two side speakers
and one additional speaker on left channel.

FM aerial: Built-in FM aerial, and telescopic dipole.

FM: Tuner with automatic frequency control (AFC).

Frequency range: 30-15000 c/s at iSdB (bass and treble controls at

mid-scale).

Gramophone connection: B&.O stereo player G 42 VF or crystal pick-up

Sensitivity: 180 mV at max.output.

Hum with volume control at minimum: under 4 microwatts.

Oscillator radiation: Suppressed in conformity with present German

standards.

Power consumption: 10 watts at lUOmW output.Max. output approx.65

watts.

Power output: 2 X 6 watts.

Stereo indicator: Green light for stereo gramophone, stereo reproduca

tion from tape, and with stereo decoder installed.

Supply voltage: 220 volts AC (for operation on 110 and 24:0 volts,see

page 6).

Tuning indicator: Pointer instrument.

Tape recorder connection: 5-contact DIN socket for monaural and ste-
reo tape recorders.Playback through sepa-
rate push~button.

Wave bands,receivers with serial numbers under 8.263:

LW 2040 - 940m, 147 - 320kc/s
MW 578 - 188 - 520 ~1500 _
FW 194 _ 75 - 1550 - 4000 _
FM 3.4. - 2.8 _ 88 - lOBMc/s

Receivers numbered 8.263 and higher:

LW 2040 - 857m, 147 - 350kc/s
Other bands identical.

. BEOMASTER 900 2

WIRING DIAGRAM FOR FF TRANSFORMERS

H*.__. v ..

47;:

I

1!. l3 l2

l'MF amazes ZMF 97IH207
"H" 2lF

7 9 )0 H l2
AM Dd. 97114209

0793099

FM Del. 9711-1225

12 amt-156

Page 6

0A7

MK

59

336 HT

BELLA

ulrfl - Kqurm

r
urn
fuw
n.
v
I"!
ug:

rk
1c:

blau
bra un
gclb
grim
gnu
vein
W
rot
schwarz
violet!

56ij!)

990R

530C633
650C634

95 BEOMASTER 900 6

know

Mo dific ation, LW Band.

Receivers numbered 3.263 and higher have an LW band covering 147-
350kc/s.They correspond to the circuit diagram on page 3.
Dial glass: Type 760 F 485.

Receivers with serial numbers under 8.263 have an LW band covering
147-320kc/s,and the following components differ from the circuit dia-
gram:
Diagram no. 52 47 pF N 150.
- - 56 GOpF trimmer capacitor.

_ _ rs1 27UpF St.125V.

- - {$4
Dial glass:

180;)1" St. 125 V.
Type 760 F 484.

Power transformer:

Standard version 220 - 240V. ST.3907.

Special version

110 - 220V. ST.3439/2.

220V HOV

::. 240V :' 4 O
220V
0 I I
a o I
ST 3907 5T3
