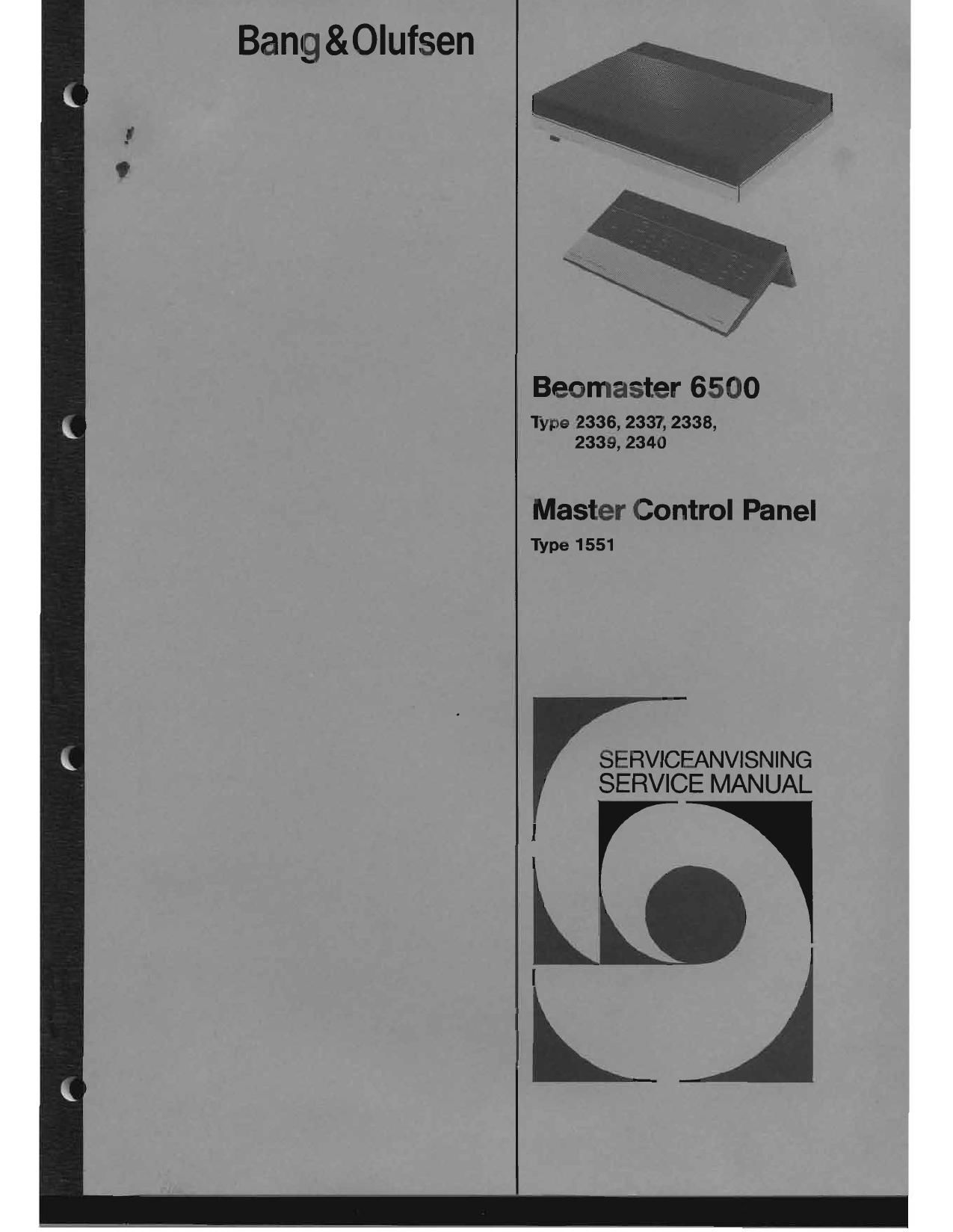

Bang Olufsen Beomaster 6500 Service Manual

Page 1

Bang &Olufsen

Beomaster 6500

Type 2336, 2337, 2338,
2339, 2340

Master Control Panel
Type 1551

SERVICEANVISNING
SERVICE MANUAL

Page 2

Bang &0|ufsen

1 HF ......................................
2 Output and Power Supply ..................
3 Preamplifier ..............................
4 Microcomputer ...........................
5 Speaker sockets ..........................
6 Fan regulation ............................
7 Relay ....................................

diagr. A
page 2-2

diagr. 8
page 2-4

diagr. 8
page 2-4

diagr. 0
page 2-5

diagr. B
page 2-4

diagr. B
page 2-4

diagr. 8
page 2-4

11

12

13

14

15

17

1-1

Display .................................. diagr. c
page 2-5
Master Control, keyboard .................. diagr. E
page 2-6
Master Control, Mircocomputer ............ diagr. E
page 2-6
Master Control, IB-lafl .................... diagr. E
page 2-6
Master Control, lR-right ................... diagr. E
page 2-6
Master Control, Display .................... diagr. E
page 2-6
Tuner - FM ............................. diagr. 7??

page 1-7

Page 5

1-4

Options:

En Beomaster i et Beolinksystem

Options eller situationer beskriver hvordan bode
audio- 0g videoprodukterne 1 et Beolinksystem ska]
programmeres i den valgte stilling.

Option 1 (Situation 1):

Et audio- 0g et videosystem placeres i samme rum, sa
signalerne fra Beol'mk terminalen kan opfanges af
begge systemer samtidigt

Option 2:

Audio- og videosystemet er placeret i hver sit rum, 5a
signaleme fra Beolink terminalen kun kan opfanges af
ét system ad gangen.

Beomaster 6500 i Master Control Link 2-systemetz

Option 3:
Anvendes nar der er to audiokilder i samme rum
(f.eks.: en MCL 2-enhed og en Beomaster 6500).

Option 4:
Anvendes nar der or to audio- 09; en videokilde i
samme rum (f.eks.: MCL 2, Beomaster 0g Beovision).

Option 0:

Szetter IR-foler ud at funktion, hvilket kan udnyttes
felts. i butiksvinduer eller ved udstillinger. Der kan
dog stadig vaelges ny option med Beolink terminalen.

Programmering:
Options programmeres med Beolink terminalen, med
Beomaster 6500 i standby:

_. Option nr. STERE
Option nr.

Tast:
Display viser:

Beomaster 6500 er fra fabrikken programmeret til
option 1.

Stikdéseme Line in/out 0g AUX/TV:

Line in/out anvendes ved tilslutning at en equalizer.
Husk kortslutningsprop (bestillingsnr. 7220265) nar
equalizer ikke er tilsluttet

AUX/TV anvendes ved tilslutning at et Beolink-
kompatibelt flernsyn eller ieks. Bang & Olufsen
bandoptager.

Bang &O|ufsen

Options:

A Beomaster in a Beolink System

Options or situations describe how both the audio and
video products in a Beolink system are programmed
in the chosen setting,

Option 1 (Situation 1):

An audio and a video system are placed in the same
room so the signals from Beolink terminal can be
received by both systems at the same time.

Option 2:

The audio and video systems are placed in separate
rooms so the signals from Beolink terminal can only
be received by one system at a time.

Beomaster 6500 in the Master Control Link 2 system:

Option 3:
15 used when there are two audio sources in the Same
room (eg. an MCLZ unit and a Beomaster 6500).

Option 4:

Is used when there are two audio sources and one
video source in the same room (eg. MCLZ,
Beomaster and Beovision),

Option 0:

Puts the IR sensor out of operation; this can be used
in shop windows or at exhibitions for example.
However. new options can still be selected with
Beolink terminalen.

Programming:
Options are programmed with Beolink terminal, with
Beomaster 6500 in standby:

_, Option no.

Option no.

Key:
Display shows

Beomastcr 6500 is programmed at the factory to
option 1.

The Line in/out and AUX/TV sockets:

Line in/out is used for connecting an equalizer.
Remember short~eircuiting fuse (order no. 7220265)
when the equalizer is not connected.

AUX/TV is used for connecting a Beolink-compatible
television or egg. Bang & Oluisen cassette recorder.
