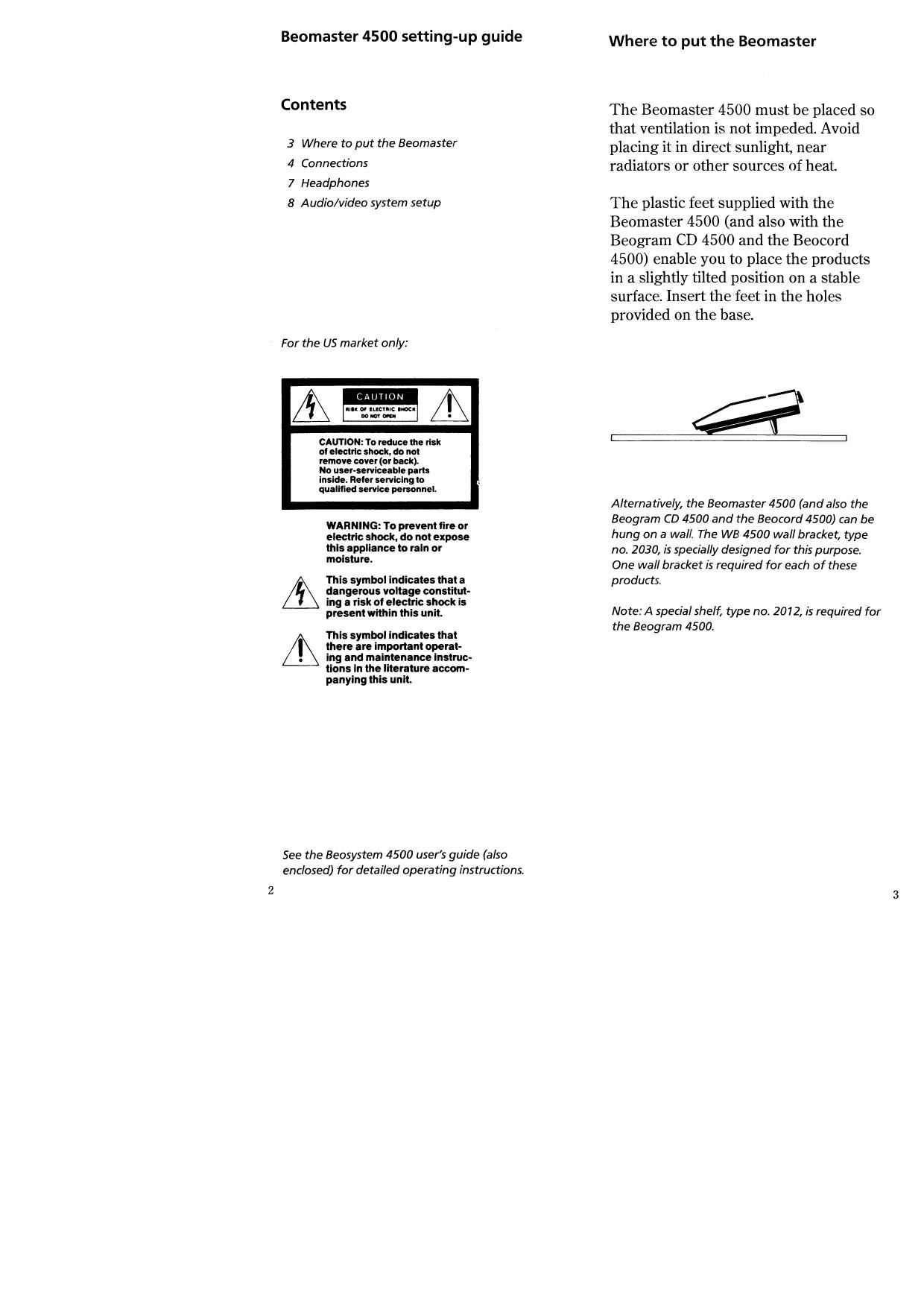

Beomaster 4500 setting-up guide

Contents
3 Where to put the Beomaster
4 Connections

7 Headphones
8 Audio/video system setup

For the US market only:

CAUTION: To reduce the risk

or eleetrlc shock. do not
remove cover (or back).
N0 "SEV-SGWICEI
inslde. Reter ten!
annulled servlce

WARNING: To prevent lire or
electric shock. do not upon
thls Ippllance to raln or
moisture.

Thls symbol indicates theta
dangerous voltage constitut-
ing a risk of electric shock is
present within this unit.

th3 symbol indicates that
there are important operat-
ing and maintenance Instruc-
tions In the literature accom-
panying this unlt.

9%

See the Beosystem 4500 user's guide (also
enclosed) for detailed operating instructions.

Where to put the Beomaster

The Beomaster 4500 must be placed so
that ventilation is not impeded. Avoid
placing it in direct sunlight, near
radiators or other sources of heat.

The plastic feet supplied with the
Beomaster 4500 (and also with the
Beogram CD 4500 and the Beocord
4500) enable you to place the products
in a slightly tilted position on a stable
surface. Insert the feet in the holes
provided on the base.

Alternatively, the Beomaster 4500 (and also the
Beogram CD 4500 and the Beocord 4500) can be
hung on a wall. The WB 4500 wall bracket, type
no. 2030, is specially design ed for this purpose.
One wall bracket is required for each of these
products.

Note: A special shelf, type no. 2012, is required for
the Beogram 4500.

Page 2

Connections

Connect loudspeakers, antennae and the
other units in the Beosystem (if any) to
the Beomaster before connecting it to the
mains.

Once connected to the mains, the
Beomaster is in stand-by mode and
ready to be operated. The Beomaster is
designed to be left in stand-by mode
when not in use.

AM Beogram 4500
antenna (ora second

tape recorder
or CD player)

FM Beogram
Antenna CD 4500

The metal bar supplied with the Beomaster 4500
is for concealing cables. When you have made the
necessary connections, insert the bar in the holes
provided on the rear panel and press downwards.

Active Active Passive
speakers speakers speakers
(Power (Power (8 ohms)
Link) Link)

Right Left

mu

POWER LINK

Compatible
Bang & Olufsen TV Control
( or other auxiliary System
equipment) (MC L)

Beocord
4500
