Beomaster3300

Page 1

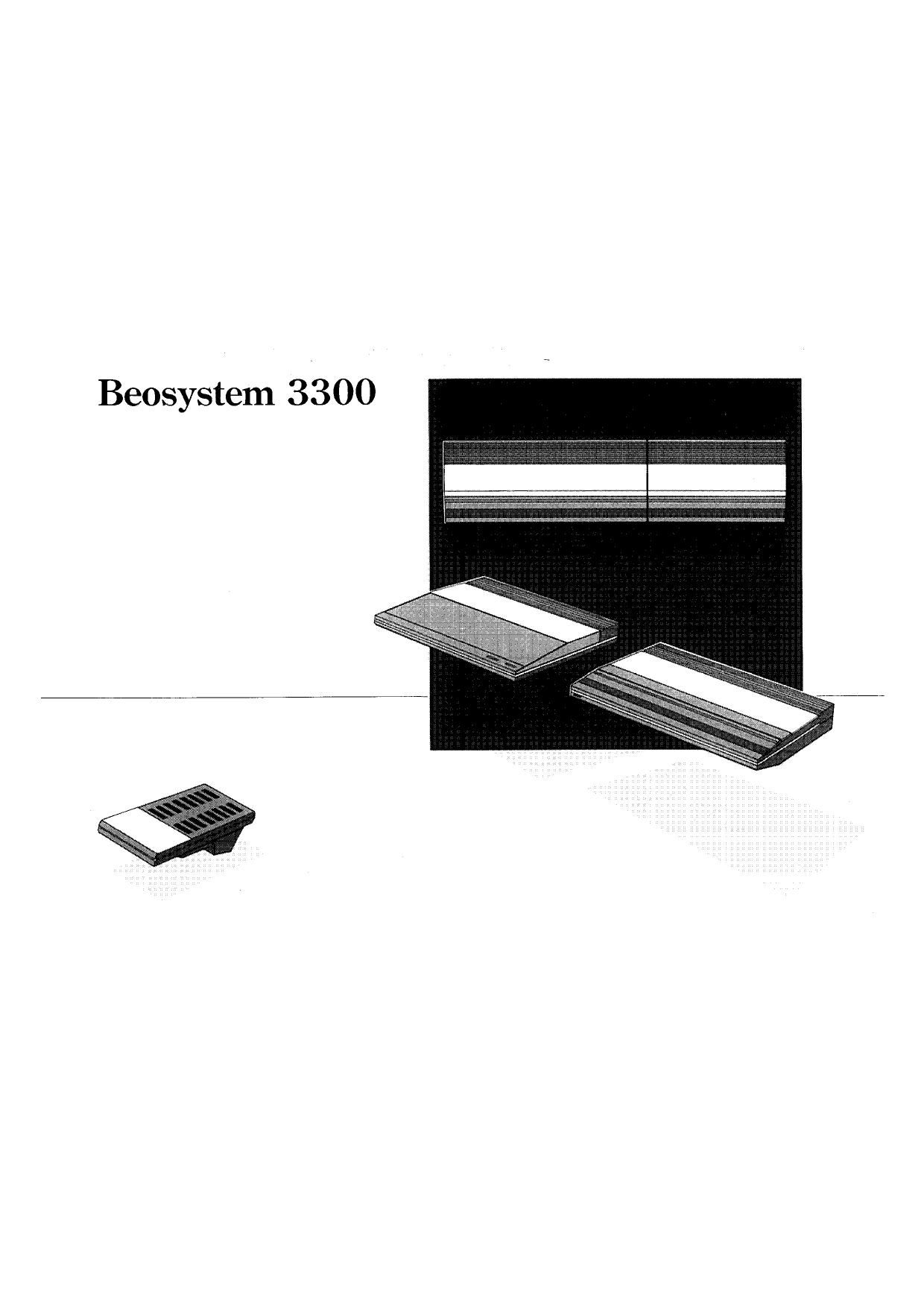

Beosystem 3300

Page 2

7}; Beomaster 3300 receiver is the master of
the Beosystem 3300. The other units in the Beosystem 3300 are:

- the Terminal 3300 remote control

- the Beocord 3300 tape recorder

- the Beogram CD 3300 compact disc player
- the Beogram 3300 record player

The sloping semi-touch panel on the front gives access to all the primary
functions. All you have to do is touch the area below the appropriate text or
symbol.

The switches and controls underneath the hinged aluminium lid give
access to all the secondary functions.

To open the lid press the extreme lefl-hand side of the narrow front strip.
Close the lid again by pressing it down gently until you hear a click.

Page 9

Switching off

Switch off by pressing IE on the right-hand side The Beomaster will revert to stand-by mode. The
of the operation panel. other units in the Beosystem, if any will also
revert to stand-by mode.

Muting

Press MUTE to make the sound disappear This is useful if you want temporary silence
immediately. without switching off.

Press MUTE again to recall the sound

Page 15

14

Remote control

The Terminal 3300 enables you to operate all the
primary functions in your Beosystem 3300 by
remote control, eg. adjusting volume, playing a
compact disc, 3 record or a tape, or switching
from one radio station to another. The
Beomaster 3300 is provided with an infrared-
receiver (see diagram) which picks up all the
commands sent by the Terminal 3300.

How'to use the Terminal 3300

The following list gives you a brig] explanation of how to use the buttons on the Terminal 3300.

Volume
[2 & Press to lower or raise the volume leveL [m Press to start playing a record on the
Beogram 3300 record player.
Source
{El -> [15-51 Press to hear the radio stations on P1 Press to start playing a compact disc in
up to P5. the Beog'ram CD 3300 compact dISC
player.

Page 21

20

WB 3300 wall bracket

The WB 3300 wall bracket is specially designed
for the Beosystem 3300. It enables you to hang
all the units on the wall with excellent con-
cealment of leads and cables.

All the Bang 8: Olufsen equipment referred to in
this paragraph is available from your Bang &
Olufsen dealer as optionally purchased extras
