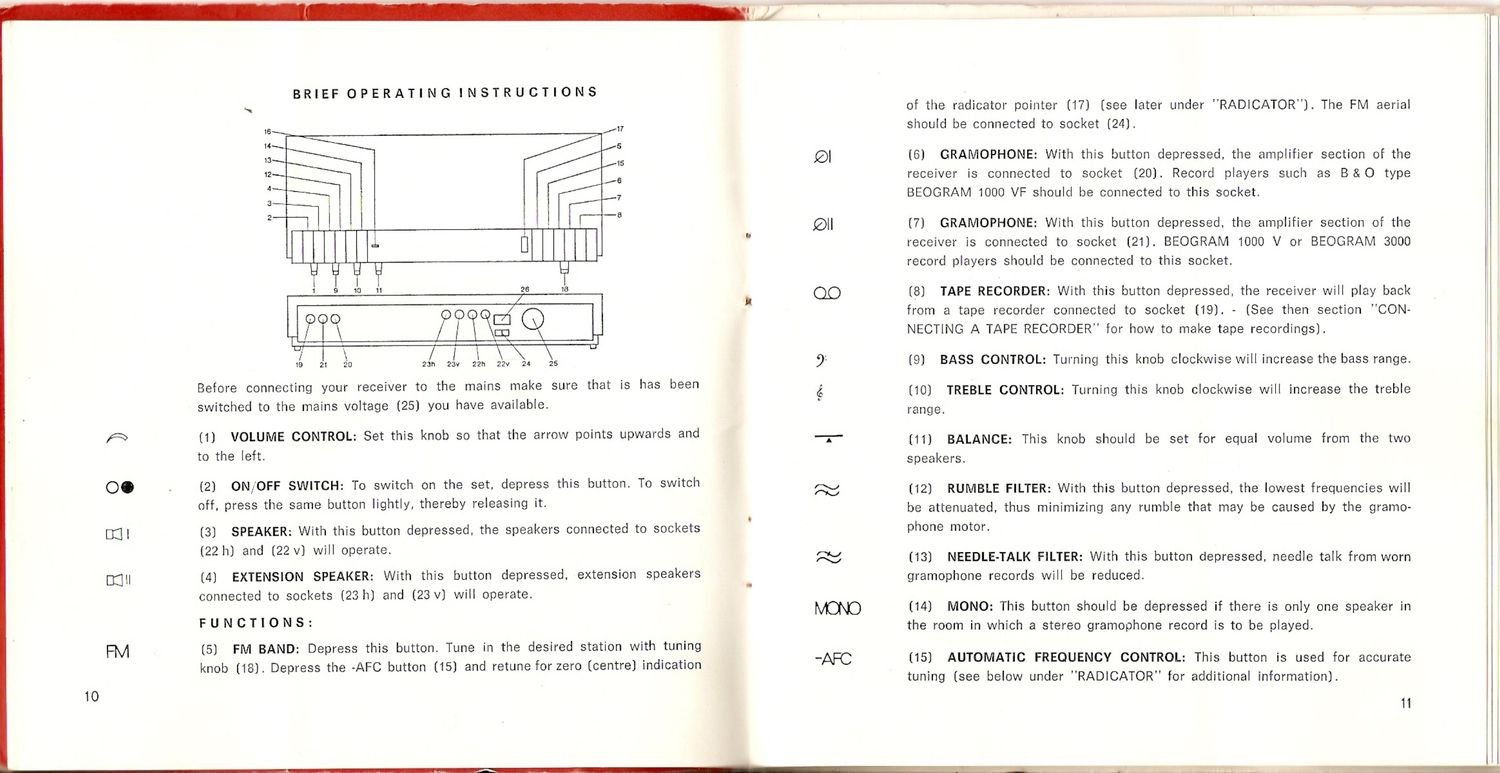

BRIEF OPERATING INSTRUCTIONS

\
16x /17
1 _/5
13% /'I5
12 6
4'
3:3 I r/Mv
l
2-31 l I . I a r":
l

1 9 10 11 A/23 18
PM @0le Q
. \w / 1 FR. .
I" / l i \\ \ ..
19 21 20 23h 23V 22h 22v 24 25

Before connecting your receiver to the mains make sure that is has been
switched to the mains voltage (25] you have available.

[1) VOLUME CONTROL: Set this knob so that the arrow points upwards and
to the left.

(2) ONIOFF SWITCH: To switch on the set, depress this button. To switch
off, press the same button lightly, thereby releasing it.

(3] SPEAKER: With this button depressed, the speakers connected to sockets
[22h] and (22 v] will operate.

(4] EXTENSION SPEAKER: With this button depressed. extension speakers
connected to sockets (23 h] and (23 v] will operate.

FUNCTIONS:

[5] FM BAND: Depress this button. Tune in the desired station with tuning
knob [18]. Depress the -AFC button [15] and retune for zero (centre) indication

Ql

Q

of the radicator pointer [17) [see later under RADICATOR"). The FM aerial
should be connected to socket [24).

(6] GRAMOPHONE: With this button depressed, the amplifier section of the
receiver is connected to socket [20]. Record players such as 8&0 type
BEOGRAM 1000 VF should be connected to this socket.

(7) GRAMOPHONE: With this button depressed. the amplifier section of the
receiver is connected to socket [21). BEOGRAM 1000 V or BEOGRAM 3000
record players should be connected to this socket.

[8] TAPE RECORDER: With this button depressed. the receiver will play back
from a tape recorder connected to socket [19]. - [See then section CON-
NECTING A TAPE RECORDER for how to make tape recordings].

[9] BASS CONTROL: Turning this knob clockwise will increase the bass range.

[10] TREBLE CONTROL: Turning this knob clockwise will increase the treble
range.

[11) BALANCE: This knob should be set for equal volume from the two
speakers.

[12) RUMBLE FILTER: With this button depressed, the lowest frequencies will
be attenuated, thus minimizing any rumble that may be caused by the gramo-
phone motor.

[13] NEEDLE-TALK FILTER: With this button depressed. needle talk from worn
gramophone records will be reduced.

[14) MONO: This button should be depressed if there is only one speaker in
the room in which a stereo gramophone record is to be played.

(15) AUTOMATIC FREQUENCY CONTROL: This button is used for accurate
tuning (see below under RADICATOR for additional information].

11

Page 2

0|

Qll

Wit
#2::
"II-

12

[16) STEREO INDICATOR

[17] RADICATOR: The radicator pointer should be at mid-scale [zero] when
the receiver is tuned to a station.

[18) FM TUNING

EXTERNAL CONNECTIONS:
[19] TAPE RECORDER SOCKET: See below.

[20] GRAMOPHONE SOCKET: For crystal pick-up or magnetic pick-up with
pre-amplifier.

[21) GRAMOPHONE SOCKET: For magnetic pick-up without pre-amplifier.
For details see below.

[22) SPEAKER SOCKETS: For left and right speakers.
[23) SPEAKER SOCKETS: For extension speakers, left and right.
[24) FM AERIAL SOCKET.

(26] HOLDER FOR V-AERIAL: Your receiver is designed for use with a type
2010 telescoping V-aerial. This aerial will usually provide satisfactory reception
in strong-signal areas [close to a transmitter). If not. you should see your
dealer about installing an outdoor directional aerial.

RADICATOR:

STEREO INDICATOR:

BALANCE ADJUSTMENT:

Your receiver uses an entirely new type of tuning meter. This
meter, known as a radicator (pointer instrument), is of the zero
centre type. Zero reading indicates that the receiver detector is
in perfect balance. an important point for correct, distortionless
reproduction, especially when receiving stereo broadcasts.
When the receiver is not tuned to a station, the radicator pointer
will be at mid-scale [zero]. To tune, first depress the -AFC button.
thus cutting out the automatic frequency control circuit; then
tune to the desired station. As you do this, the radicator pointer
will first deflect to one side. depending on which direction you
are tuning from; then continue tuning until the pointer is back at
zero. Now depress the -AFC button again, and the automatic
control circuit will thereafter assure correct reproduction.

When tuning in a weak or distant station adjacent to a strong
one you may find it necessary to cut out the automatic frequency
control circuit [depress the -AFC button).

[16] will show light with the receiver switched for reproduction
from a tape recorder or gramophone, unless the MONO button
[14) is depressed.

If your receiver is provided with a stereo decoder (see under
"STEREO BROADCASTS"), the indicator will show a light as you
tune in a station from which a stereo broadcast is in progress.

Once adjusted correctly. this control normally need not be
touched. Adjustment is performed as follows:

Slowly rotate the balance potentiometer [11] until you have ba-
lanced reproduction - that is, you will have soual volume from
the two speakers when playing a monaural record with the set
switched for either ,,stereo" or ,,mono".

On monaural reproduction the two channels are connected, but
