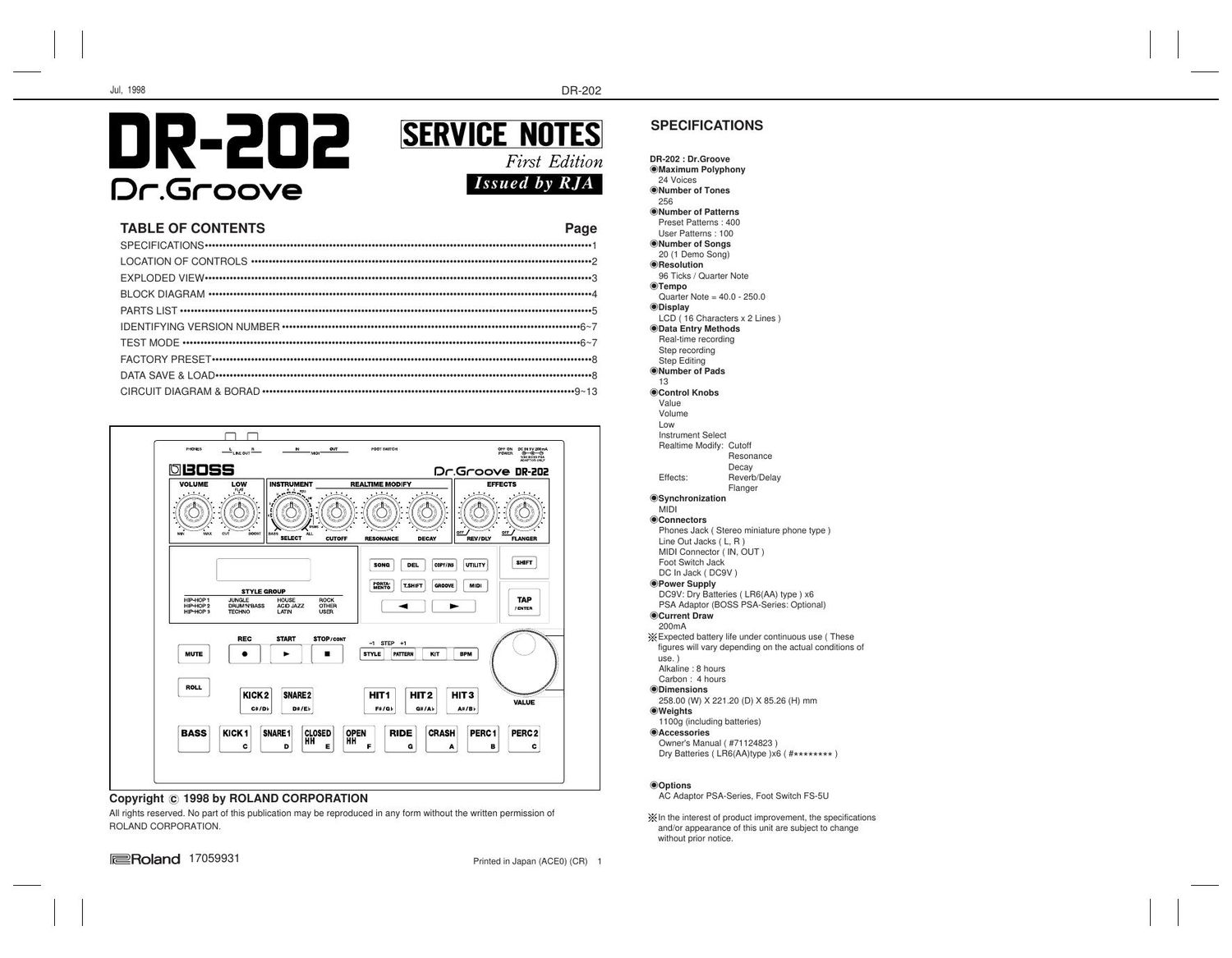

Boss DR 202 Dr.Groove Service Manual
This is the 13 pages manual for Boss DR 202 Dr.Groove Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Boss DR 202 Dr.Groove Service Manual (Ocr-read)
Page 1
2 Pin Jack YKC21-3040 (#00451445)MIDI Jack YKF51-5048 (#13429676) Phone Jack HLJ7101-01-3010 (#13449283) Battery Cover (#01340545) Side Switch (Power Switch) HSW-0847-01-010 (#00123134) Adaptor Jack HEC2392-01-150 (#13449717) Top Case (#01450856) Bottom Case BOTTOM CASE ASSY (#71124789) Phones Jack HSJ-0912-01-040 (#13449434) Foot (x4) 15x15 FOOT (#01342589) Pot RK14K124 10KB (#01566523) Pot RK14K124 100KW (#01454045)Pot (x6) RK11K114 50KB (#01454067) Knob (x8) J R-KNOB SF (BLK/RED) (#01341267) Button RUBBER SW EFFECT (#01450934) Knob D R-KNOB L RED (#01450912) Rotary Encoder EC16B24204 (#01454090) Display Cover (#01450889) LCD CM1621-OS (#01451034) LED (x5) LTIU67A (#01342601) Button RUBBER SW PAD (#01450923) LOCATION OF CONTROLS DR-202 Jul, 1998
Page 2
3 EXPLODED VIEW 11 10 b 7 6 16 9 8 a 5 4 3 2 1 14 15 d c 13 12 17 18 DR-202 Jul, 1998 [PARTS] No. PART No. PART NAME q 01450856 TOP CASE w 01450934 RUBBER SW EFFECT e 01450923 RUBBER SW PAD r 71010823 SW BOARD ASSY t 71010812 MAIN BOARD ASSY y 71124789 BOTTOM CASE ASSY u 01340545 BATTERY COVER i 01450901 BATTERY TERMINAL (-) o 01450890 BATTERY TERMINAL (+) !0 01562290 BATTERY TERMINAL (+/-) !1 01342589 15x15 FOOT !2 01451034 LCD UNIT CM1621-OS !3 01450889 DISPLAY COVER !4 01341267 J R-KNOB SF(BLK/RED) !501450912 D R-KNOB L RED !6 01562356 SHIELD SHEET !7 01561489 FUJI CARD(16P) 16x160-A6.0BB-P1.25-HBL10-S !8 01561490 FUJI CARD(8P) 8x160-A6.0BB-P1.25-HBL10-S [SCREW] A 40011278 BINDING HEAD TAP TIGHT-P 3x8 ZC B 40011323 BINDING HEAD TAP TIGHT-P 3x10 BZC C ******** M9 WASHER D ******** M9 NUT
