Audiolab 8000 a service manual
This is the 17 pages manual for audiolab 8000 a service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from audiolab 8000 a service manual (Ocr-read)

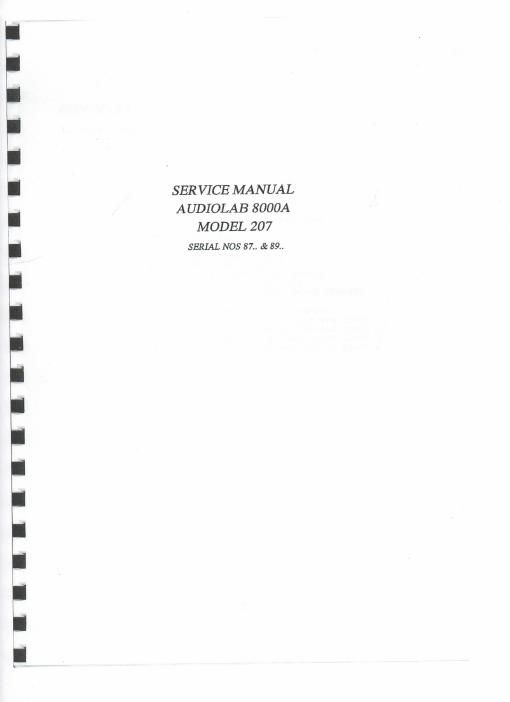

Page 1
I I ITrI'I
SER VICE MANUAL
A UDIOLAB 8000A
M ODEL 207
SERIAL Nos 87.. a: 89..
Page 2
CONTENTS
1. Power amplifier
2. Bias setting
3. Transistor outlines
4. Muting circuit
5. Transformer colour code and fuse ratings
6. Independent operation of pre/power amplifier
7. Drawing (Issue) Description
CST207-022 (1) MC AMPLIFIER CIRCUIT
CST207-023 (2) MM AMPLIFIER CIRCUIT
CST207-024 (3) LINE/TONE AMPLIFIER CIRCUIT
CST207-025 (4) POWER AMPLIFIER CIRCUIT
CST207-026 (5) PROTECTION AND RELAY DRIVE CIRCUIT
CST207-027 (3) POWER SUPPLY CIRCUIT
CST207-028 (4) CIRCUIT AND WIRING SCHEMATIC
CST207-036 (3) COMPONENT SIDE PCB CST207-016 ISSUE 3
CST207-036 (4) COMPONENT SIDE PCB CST207-016 ISSUE 4
IIIIIIIIIIIITIII
CST207-037 (3) TRACK SIDE ... PCB CST207-016 ISSUE 3
CST207-037 (4) TRACK SIDE ... PCB CST207-016 ISSUE 4
AUG 89
