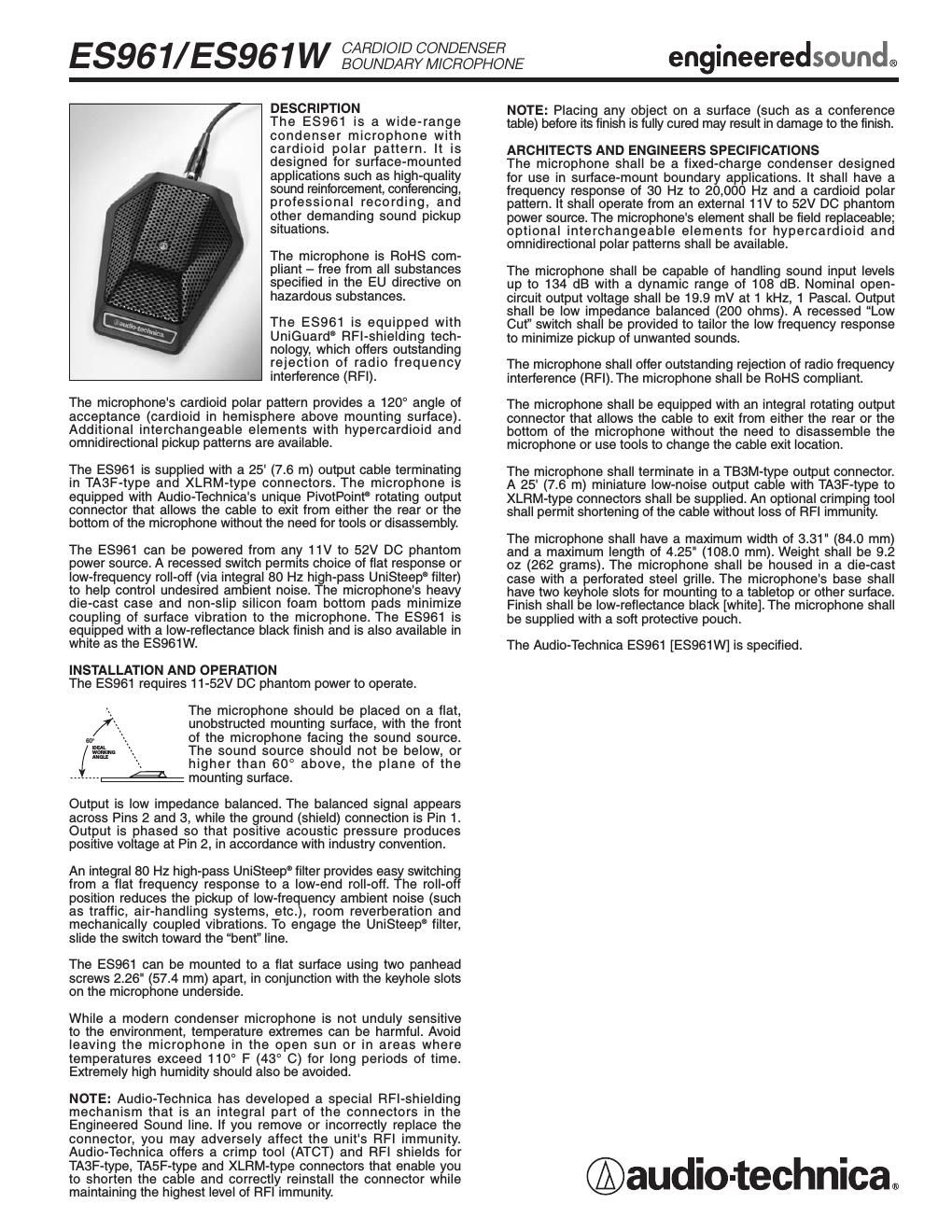

ES961 SPECIFICATIONS † ELEMENT Fixedcharge back plate permanently polarized condenser POLAR PATTERN Halfcardioid (cardioid in hemisphere abo ve mounting surface) FREQUENCY RESPONSE 3020,000 Hz LOW FREQUENCY ROLLOFF80 Hz, 18 dB/octave OPEN CIRCUIT SENSITIVITY –34 dB (19.9 mV) re 1V at 1 Pa* IMPEDANCE 200 ohms MAXIMUM INPUT SOUND LEVEL134 dB SPL, 1 kHz at 1% T.H.D. DYNAMIC RANGE(typical) 108 dB, 1 kHz at Max SPL SIGNALTONOISE RATIO 1 68 dB, 1 kHz at 1 Pa* PHANTOM POWER REQUIREMENTS 1152V DC, 4 mA typical SWITCH Flat, rolloff WEIGHT262 g (9.2 oz) DIMENSIONS 108.0 mm (4.25") long, 84.0 mm (3.31") maxim um width, 23.0 mm (0.91") height OUTPUT CONNECTOR TB3Mtype CABLE 7.6 m (25.0') long, 3.2 mm (0.13") diameter , 2conductor, shielded cable with TA3Ftype and XLRM type connectors OPTIONAL INTERCHANGEABLE UEO omnidirectional (360°); ELEMENTSUEH hypercardioid (100°) ACCESSORY FURNISHED Soft protective pouch †In the interest of standards development, A.T.U.S. offers full details on its test methods to other industry professionals on request. *1 Pascal = 10 dynes/cm 2= 10 microbars = 94 dB SPL 1Typical, Aweighted, using Audio Precision System One. Specifications are subject to change without notice. 8 kHz Polar Pattern SCALE IS 5 DECIBELS PER DIVISION LEGEND200 Hz 1 kHz5 kHz Frequency in Hertz LEGEND 12" or more on axis Frequency Response Response in dB Roll off Audio Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224 Audio Technica Limited, Old Lane, Leeds LS11 8AG England www .audiotechnica.com P5193801 ©2007 Audio Technica U.S., Inc. Printed in U.S A. 1.97" 50.1 mm 3.31" 84.0 mm 0.91" 23.0 mm 2.26" 57.4 mm 1.13" 28.7 mm 2.93" 74.4 mm 4.25" 108.0 mm
