Page 1
2 U100 Series Compatible with 7000 Series Wireless For greater convenience and flexibility, receivers and transmitters in the Audio-Technica U100 Series and 7000 Series are available individually and may be used interchangeably. All are 100-channel, PLL-synthesized UHF units operating in one of two UHF frequency ranges: ÒxÓ units in 656-668 MHz, and non-ÓxÓ units in 728-740 MHz. Model ÒxÓ transmitters must be used only with ÒxÓ receivers; the same holds true for non-ÓxÓ transmitters and receivers. Series Receiver Description U100 ATW-R100(x) Miniaturized, battery-powered receiver 7000 ATW-R73(x) Half-rack-mount, AC-powered receiver Series Transmitter Description U100 ATW-T101(x) Body-pack transmitter, metal case, TB5M input connector U100 ATW-T102(x) Plug-on transmitter for separate microphone 7000 ATW-T73(x) Integrated handheld condenser microphone/transmitter 7000 ATW-T75(x) Body-pack transmitter, plastic case, HRS input connector (Requires A-T mics with model numbers ending in ÒcW.Ó) 7000 ATW-T76(x) Integrated handheld dynamic microphone/transmitter
Page 2

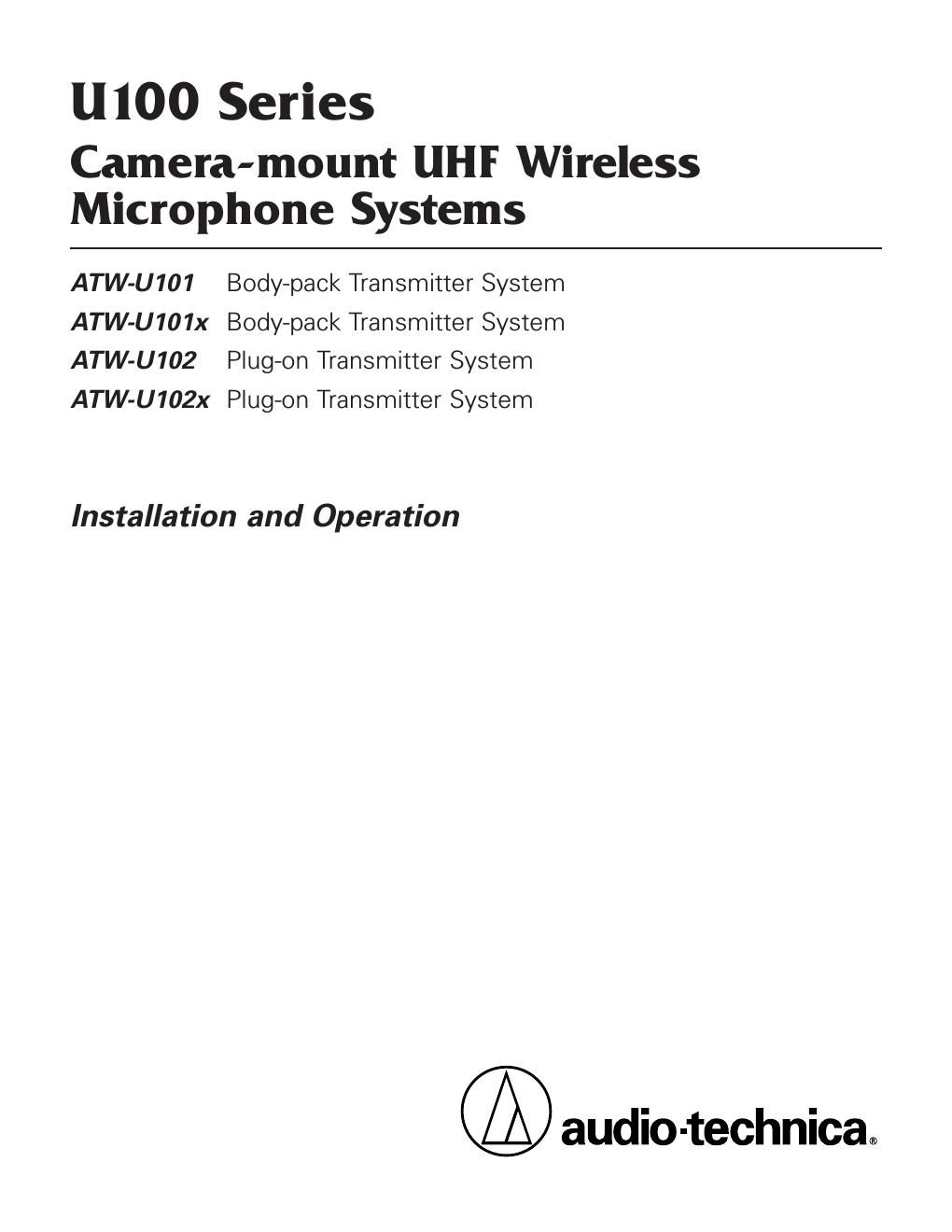

U100 Series Camera-mount UHF Wireless Microphone Systems Installation and Operation CAUTION!The circuits inside the receiver and transmitter have been precisely adjusted for optimum performance and compliance with federal regulations. Do not attempt to open the receiver or transmitter. To do so will void the warranty, and may cause improper operation. This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. This device complies with INDUSTRY CANADA R.S.S. 210, en conformitŽ avec IC: RSS-210/ CNR210. Operation is subject to the following conditions: 1) This device may not cause harmful interference and 2) this device must accept any interference received, including interference which may cause undesired operation. Introduction Thank you for choosing an Audio-Technica professional wireless system. You have joined thousands of other satisfied customers who have chosen our products because of their quality, performance and reliability. This Audio-Technica wireless system is the successful result of years of design and manufacturing experience. The U100 systems are designed primarily for use in audio-for- video applications, with the receiver mounted on a camera and connected to the cameraÕs audio input. U100 systems provide a choice of 100 PLL-synthesized UHF frequencies in one of two UHF frequency ranges: ÒxÓ units in 656-668 MHz, and non-ÓxÓ units in 728-740 MHz. Each system includes a receiver and either a body-pack or plug-on transmitter: System Receiver Transmitter ATW-U101 ATW-R100 ATW-T101 Body-pack ATW-U101x ATW-R100x ATW-T101x Body-pack ATW-U102 ATW-R100 ATW-T102 Plug-on ATW-U102x ATW-R100x ATW-T102x Plug-on The ATW-R100(x) receiver features true diversity reception. Two antennas feed two completely independent RF sections on the same frequency; automatic logic circuitry continuously compares and selects the superior received signal, providing better sound quality and reducing the possibility of dropouts. Front-end helical filter design improves rejection of interference. The receiver also offers balanced audio output with level control, a headphone jack with volume control, removable antennas, a hinged battery door, and LED indicators. It operates on two internal 9V batteries or external 12V DC. Each transmitter is powered by one internal 9V battery and has an Off/Standby/On switch, input level control, battery condition indicator and channel selector switches. The ATW-T101(x) body-pack transmitter has an industry-standard TB5M input connector with both low- and high-impedance inputs plus a bias connection. The ATW-T102(x) has a 3-pin XLRF-type input connector with a locking collar. Note: Since ÒxÓ and non-ÓxÓ units operate in different frequency ranges, they are not compatible. Model ÒxÓ transmitters must be used only with ÒxÓ receivers; the same holds true for non-ÓxÓ transmitters and receivers. Please note that in multiple system applications there must be a transmitter-receiver combination set to a separate frequency for each input desired (only one transmitter for each receiver). Because the operating frequencies of U100 Systems are in UHF TV frequencies, only certain wireless frequencies may be useable in a particular geographic area. Also, only certain of the available operating frequencies may be used together. Suggestions for multiple-system frequency grouping will be found on pages 9 and 10. Warning: To prevent fire or shock hazard, do not expose this appliance to rain or moisture. Attention: Pour prŽvenir feu ou choc Žlectrique, ne pas exposŽ lÕappareil ˆ la pluie ou ˆ lÕhumiditŽ. Notice to individuals with implanted car diac pacemakers or AICD devices : Any source of RF (radio frequency) energy may interfere with normal functioning of the implanted device. All wireless microphones have low-power transmitters (less than 0.05 watts output) which are unlikely to cause difficulty, especially if they are at least a few inches away. However, since a Òbody-packÓ mic transmitter typically is placed against the body, we suggest attaching it at the belt, rather than in a shirt pocket where it may be immediately adjacent to the medical device. Note also that any medical- device disruption will cease when the RF transmitting source is turned off . Please contact your physician or medical - device provider if you have any questions, or experience any problems with the use of this or any other RF equipment. 3
