Page 1

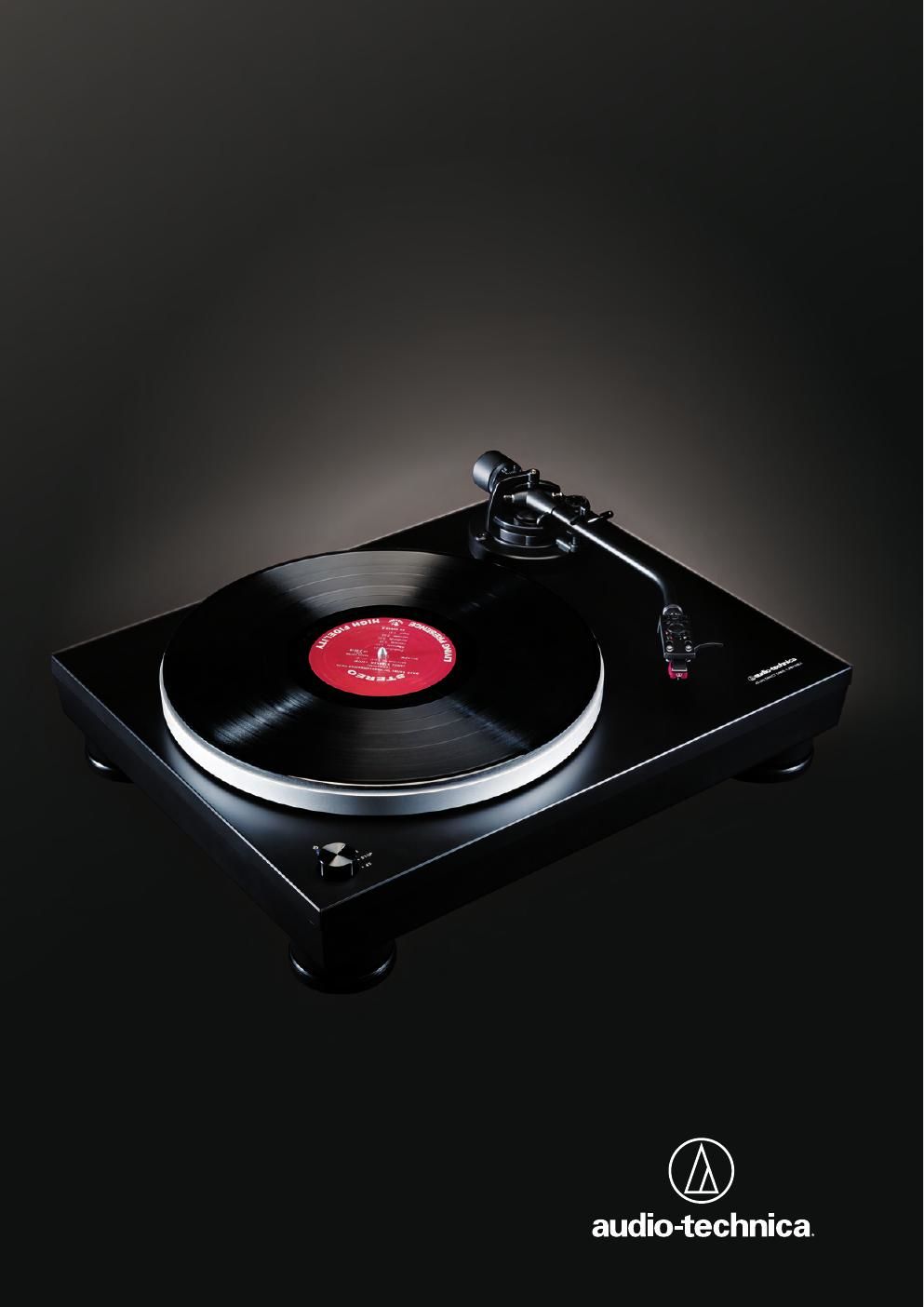

A perfect balance of technology and design, the sleek contemporary lines of the AT-LP5 turntable grace any room in the home while delivering performance features born out of Audio-Technicas rich analog heritage. The direct-drive engine provides playback for both 33 1/ 3 rd & 45 RPM records with a cast aluminium platter and thick damping mat housed together in a structure that has been engineered for minimum chassis resonance, while skilfully retaining the discreet look that complements todays listening environments. The J-shaped tonearm, engineered to minimise tracking error, harks back to the original Audio-Technica designs of the 1960s & 70s complementing the AT-LP5s clean lines and comes fitted with Audio- Technicas lightweight AT-HS10 headshell and the exclusive AT95EX Dual Moving Magnet cartridge. Created specifically for the AT-LP5 turntable, the AT95EX cartridge delivers extended frequency and transient response through new materials selected by Audio-Technicas cartridge experts in Japan. With great attention paid to the complete analog signal path, subtle features such as the gold-plated u-shaped connections of the headshell, the choice of using both the internal or an external phono pre-amplifier, and a stable high-rated internal mains power supply with enhanced grounding, the audio reproduction credentials of the AT-LP5 are assured… while the looks simply speak for themselves. Per formance in Technology Purity in Design
Page 2
123 45 67 8 910 12 11 1 2 3 10 4 56 7 89 AT - LP5 - top and rear panel features 1. Ergonomic Start /Stop and Speed SelectorTop panel-mounted switch selects play (speed 33 1/3 rpm or 45 rpm) and stop (standby) with LED power indicator. 2. Anti-Vibration Materials Structural design elements include heavy-mass metal inserts fitted to the chassis to minimise unwanted resonance. 3. Platter Die-cast aluminium platter, precision-machined for perfect on-axis, balanced rotation. 4. Direct Drive Direct Drive technology provides stable rotation. 5. Rubber Mat 5 mm thick rubber-compound damping mat for improved low-frequency reproduction. 6. Cartridge AT95EX high-performance cartridge, exclusively designed for the AT-LP5. 7. Headshell AT-HS10 lightweight (10 grams) headshell can accommodate most half-inch mount cartridges available on the market. 8. Tonearm Design & Construction AT-LP5 tonearm features metallic gimbal suspension system and precision bearings. 9. Tonearm Clamp Locks the tonearm when not playing records to avoid accidental damage to the cartridge stylus. 10. Tonearm Lift Hydraulically damped for slow and accurate tone arm descent and lift. 11. Anti-Skate Control Knob Applies a small outward force to counteract the natural tendency of a tonearm to move inward as the record rotates. 12. Damping Materials Engineered damping materials precisely positioned within the chassis make the AT-LP5 a class-leader in limiting low frequency acoustical feedback. 1. Adjustable Feet Isolated and adjustable feet for levelling of turntable when placed in-situ. 2. Adjustable Counterweight Balances the tonearm and provides adjustment for the correct downward tracking force of the stylus. 3. Reinforced Tonearm Mounting Unit Computer-aided design reinforced moulded tonearm mounting unit minimises transmission between turntable motor and base through to the tonearm. 4. Stereo Analog Audio Outputs Audio output on RCA connectors with grounding connector provides connection to amplifiers and external audio equipment using included stereo RCA + ground audio cable or own interconnects. 5. Pre-amplifier Selector Switch Switch sets analog audio outputs to use AT-LP5 internal phono pre-amplifier for direct line-level connection to amplifiers & external audio equipment; or bypass for connection to either amplifier with dedicated magnetic phono inputs or a standalone phono pre-amplifier. 6. Ground Terminal Terminal provides grounding connection to external amplifier or phono pre-amplifier using included RCA + ground audio cable or own interconnects. 7. USB Output Digital audio USB output for direct connection to personal computer ( PC / Mac™) using included USB cable. Digitise vinyl with included Audacity ® software or other 3rd-party software. 8. AC Power Inlet & Master Power SwitchDirectly connect mains to AT-LP5 internal power supply with included IEC power cable or own mains interconnects. 9. On/Off SwitchMaster on /off switch to power turnable. 10. Dustcover Hinge Mounts with Screws Hinge mounting points with screws for optional, removable hinged dustcover.
