Audio technica 935 amr owners manual

Page 1

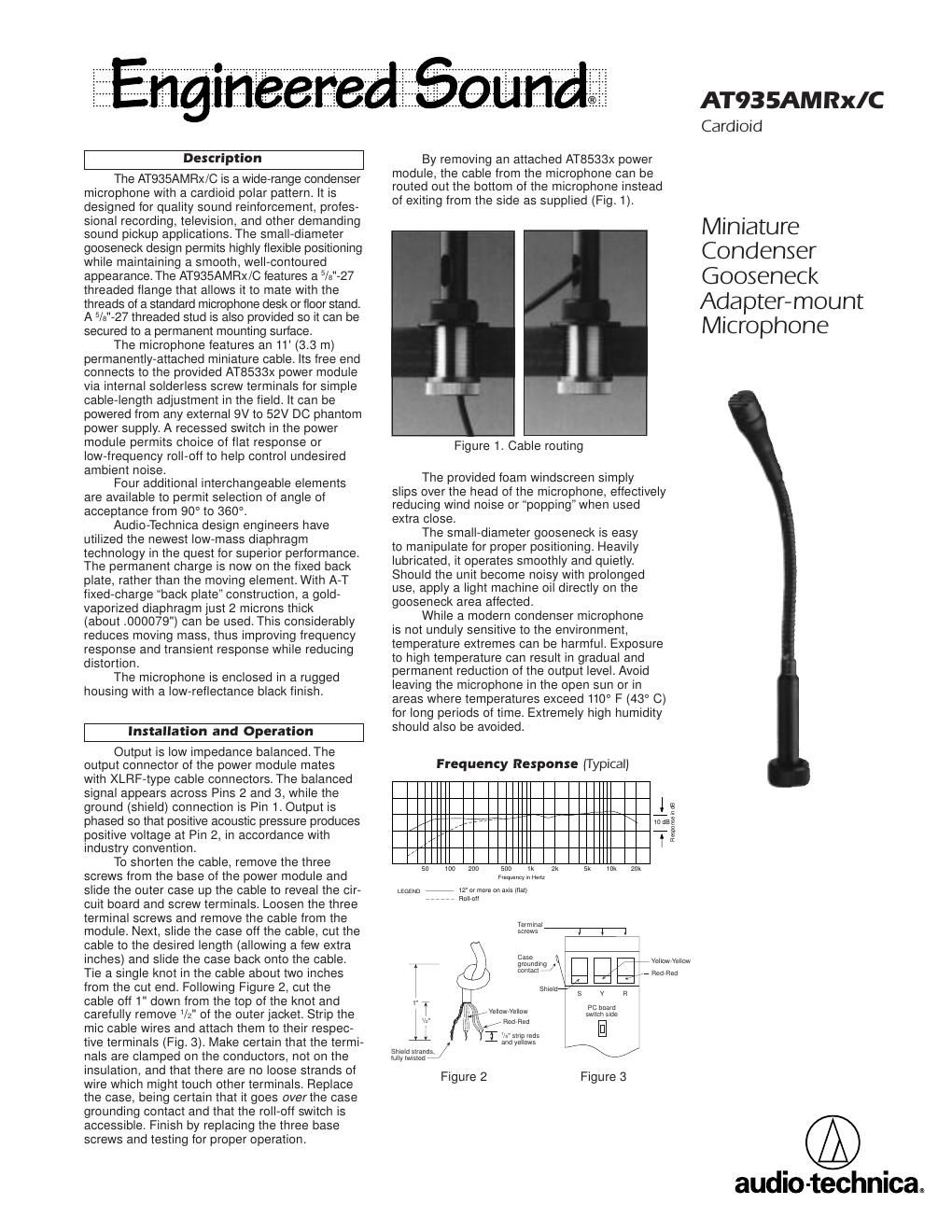

Audio -Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224 Audio -Technica Limited, Old Lane, Leeds LS11 8AG England One -Year Limited Warranty Audio -Technica microphones and accessories purchased in the U.S.A. are warranted for one year from date of purchase by Audio -Technica U.S., Inc. (A.T.U.S.) to be free of defects in materials and workmanship. In event of such defect, product will be repaired promptly without charge or, at our option, replaced with a new product of equal or superior value if delivered to A.T.U.S. or an Authorized Service Center, prepaid, together with the sales slip or other proof of purchase date. Prior approval from A.T.U.S. is required for return. This warranty excludes defects due to normal wear, abuse, shipping damage, or failure to use product in accordance with instructions. This warranty is void in the event of unauthorized repair or modification. For return approval and shipping information, contact the Service Department, Audio -Technica U.S., Inc., 12 21 Commerce Drive, Stow, Ohio 44224. Except to the extent precluded by applicable state law, A.T.U.S. will have no liability for any consequential, incidental, or special damages; any warranty of merchantability or fitness for particular purpose expires when this warranty expires. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. Outside the U.S.A., please contact your local dealer for warranty details. Form No. 0309-9513-01- B/ W P50893-01 ã 1999 Audio -Technica U.S., Inc. Printed in U.S.A. ElementFixed-charge back plate permanently polarized condenser Polar PatternCardioid (Unidirectional) Frequency Response40 - 20,000 Hz Low-frequency Roll-off150 Hz, 6 dB /octave Open Circuit SensitivityÐ 43 dB (7.0 mV) re 1V at 1 Pa* Impedance200 ohms (1000 ohms without power module) Maximum Input Sound Level138 dB SPL, 1 kHz at 1% T.H.D. Dynamic Range (Typical)111 dB, 1 kHz at Max SPL Signal-to-noise Ratio 1 67 dB, 1 kHz at 1 Pa* SwitchFlat response, low-roll-off (recessed) Phantom Power Requirements9-52V DC, 2 mA typical Weight Microphone (less cable)1.8 oz (50 grams) Power Module2.1 oz (60 grams) Dimensions Microphone6.77" (172.0 mm) long, 0.48" (12.2 mm) head diameter Power Module3.58" (91.0 mm) long, 0.83" (21.0 mm) diameter Output Connector (Power Module)Integral 3-pin XLRM-type Cable11' (3.3 m) long (permanently attached to microphone), 0.10" (2.6 mm) diameter, 2-conductor, shielded cable; free end attaches to screw terminals in power module Accessories FurnishedAT8102 two-stage foam windscreen; AT8533x power module; AT8425 5/8"-27 threaded mounting stud; element adapter (for C/H/O/SC elements) Optional InterchangeableAT853H-ELE hypercardioid (100°) ElementsAT853ML-ELE MicroLine â (90°) AT853O-ELE omnidirectional (360°) AT853SC-ELE subcardioid (170°)  In the interest of standards development, A .T.U.S. offers full details on its test methods to other industry professionals on request. * 1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL 1Typical, A- weighted, using Audio Precision System One. AT935AMRx/C Specifications   Polar Pattern 200 Hz 1 kHz 5 kHz 8 kHz LEGEND SCALE IS 5 DECIBELS PER DIVISION 90 60 120 30 150 210 240 270 300 330 180 0 Dimensions Architects and Engineers Specifications The microphone shall be a fixed-charge condenser with a cardioid polar pattern and a frequency response of 40 Hz to 20,000 Hz. It shall be capable of accepting optional interchangeable elements for additional polar patterns. It shall operate from an external 9V to 52V DC phantom power source. Nominal open-circuit output voltage with the included power module shall be 7.0 mV at 1 kHz, 1 Pascal. Output shall be low impedance balanced (200 ohms). The microphone shall have a permanently-attached 11' (3.3 m) miniature cable with a pigtail output. The pigtail output shall connect to a power module via internal solderless screw terminals. The power module shall include a switch for low-frequency roll-off and shall terminate in a 3-pin XLRM-type output connector. The microphone shall be a small-diameter gooseneck design, with an overall length of 6.77" (172.0 mm). Head diameter shall be 0.48" (12.2 mm). The microphone shall include a 5/8"-27 threaded flange to mate with the threads of a standard microphone desk or floor stand. A 5/8"-27 threaded stud shall be provided for permanent installation to a mounting surface. The microphone weight shall be 1.8 oz (50 grams) without cable. Finish shall be low-reflectance black. The Audio -Technica AT935AMRx /C is specified. AT935A MRx /C 0.48" 12.2 mm 6.77" 172.0 mm 91.0 mm3.58" 0.83" 21.0 mm 2.6 mm0.10" 1.18" 30.0 mm 23.0 mm0.91"
