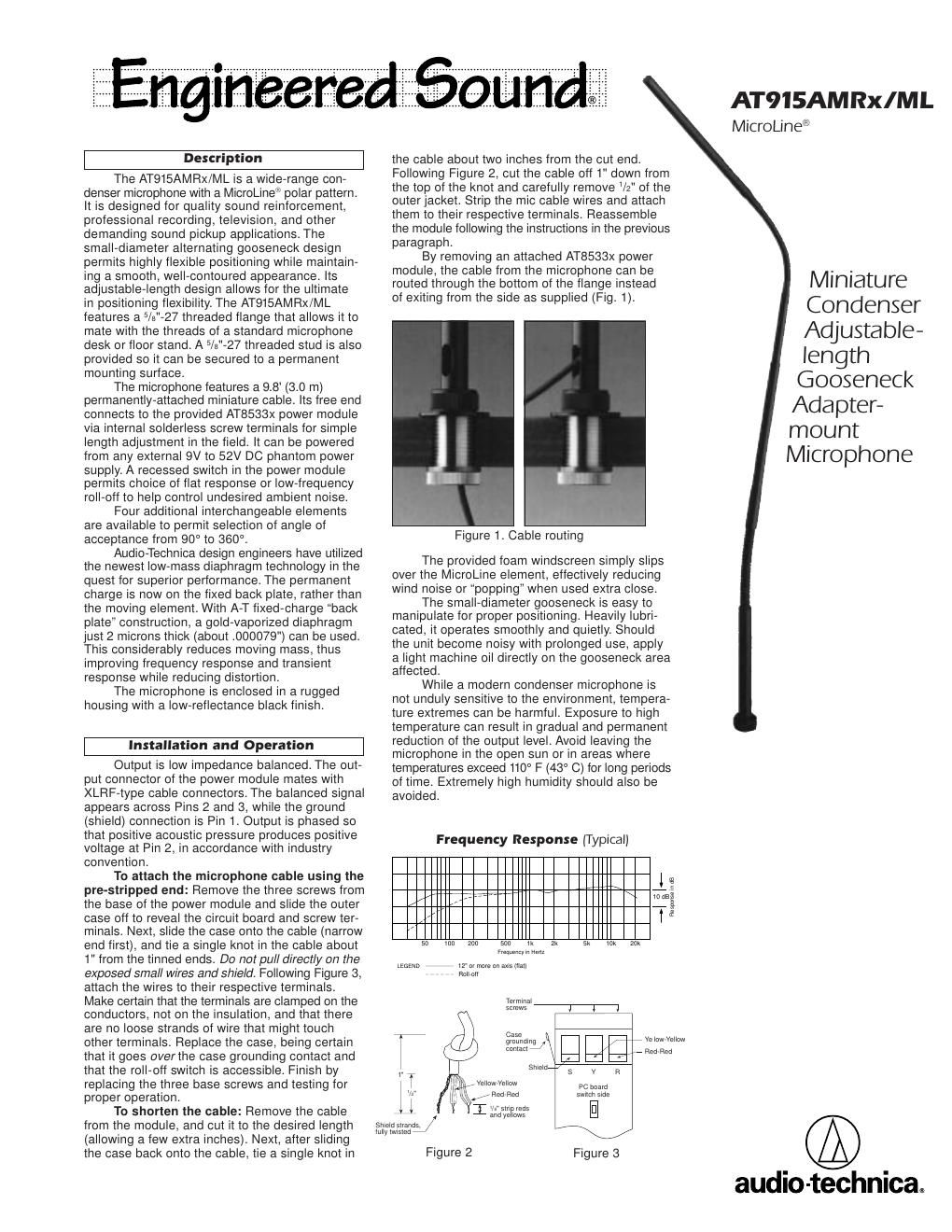

Audio technica 915 amr owners manual

Page 1

One -Year Limited Warranty Audio -Technica microphones and accessories purchased in the U.S.A. are warranted for one year from date of purchase by Audio -Technica U.S., Inc. (A.T.U.S.) to be free of defects in materials and workmanship. In event of such defect, product will be repaired promptly without charge or, at our option, replaced with a new product of equal or superior value if delivered to A.T.U.S. or an Authorized Service Center, prepaid, together with the sales slip or other proof of purchase date. Prior approval from A.T.U.S. is required for return. This warranty excludes defects due to normal wear, abuse, shipping damage, or failure to use product in accordance with instructions. This warranty is void in the event of unauthorized repair or modification. For return approval and shipping information, contact the Service Department, Audio -Technica U.S., Inc., 12 21 Commerce Drive, Stow, Ohio 44224. Except to the extent precluded by applicable state law, A.T.U.S. will have no liability for any consequential, incidental, or special damages; any warranty of merchantability or fitness for particular purpose expires when this warranty expires. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. Outside the U.S.A., please contact your local dealer for warranty details. Form No. 0309-9503-00-B/W P50883 © 1996 Audio-Technica U.S., Inc. Printed in U.S.A. Audio -Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224 Audio -Technica Limited, Old Lane, Leeds LS11 8AG England ElementFixed-charge back plate permanently polarized condenser Polar PatternMicroLine â Frequency Response30-20,000 Hz Low-frequency Roll- off150 Hz, 6 dB /octave Open Circuit SensitivityÐ 36 dB (15.8 mV) re 1V at 1 Pa* Impedance200 ohms (1000 ohms without power module) Maximum Input Sound Level131 dB SPL, 1 kHz at 1% T.H.D. Dynamic Range (Typical)105 dB, 1 kHz at Max SPL Signal-to-noise Ratio 1 68 dB, 1 kHz at 1 Pa* SwitchFlat response, low-roll-off (recessed) Phantom Power Requirements9-52V DC, 2 mA typical Weight Microphone (less cable)3.9 oz (110 grams) Power Module2.1 oz (60 grams) Dimensions Microphone20.28" (515.0 mm) to 22.83" (580.0 mm) long, 0.31" (8.0 mm) head diameter Power Module3.58" (91.0 mm) long, 0.83" (21.0 mm) diameter Output Connector (Power Module)Integral 3-pin XLRM-type Cable9.8' (3.0 m) long (permanently attached to microphone), 0.10" (2.6 mm) diameter, 2- conductor, shielded cable; free end attaches to screw terminals in power module Accessories FurnishedAT8138 MicroLine foam windscreen; AT8533x power module; AT8425 5/8"-27 threaded mounting stud Optional InterchangeableAT853C-ELE cardioid (120°) Elements 2 AT853H-ELE hypercardioid (100°) AT853O-ELE omnidirectional (360°) AT853SC-ELE subcardioid (170°)  In the interest of standards development, A .T.U.S. offers full details on its test methods to other industry professionals on request. * 1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL 1Typical, A-weighted, using Audio Precision System One.2These elements require a P10929 element adapter. AT915AMRx/ML Specifications   Architects and Engineers Specifications The microphone shall be a fixed-charge condenser with a MicroLine â polar pattern and a frequency response of 30 Hz to 20,000 Hz. It shall be capable of accepting optional interchangeable elements for additional polar patterns. It shall operate from an external 9V to 52V DC phantom power source. Nominal open-circuit output voltage with the included power module shall be 15.8 mV at 1 kHz, 1 Pascal. Output shall be low impedance balanced (200 ohms). The microphone shall have a permanently-attached 9.8' (3.0 m) miniature cable with a pigtail output. The pigtail output shall connect to a power module via internal solderless screw terminals. The power module shall include a switch for low-frequency roll-off and shall terminate in a 3-pin XLRM-type output connector. The microphone shall be a small-diameter alternating gooseneck design, with an overall length from 20.28" (515.0 mm) to 22.83" (580.0 mm). Head diameter shall be 0.31" (8.0 mm). The microphone shall include a 5/8"-27 threaded flange to mate with the threads of a standard microphone desk or floor stand. A 5/8"-27 threaded stud shall be provided for permanent installation to a mounting surface. The microphone weight shall be 3.9 oz (110 grams) without cable. Finish shall be low-reflectance black. The Audio -Technica AT915AMRx /ML is specified. Polar Pattern 200 Hz 1 kHz 5 kHz 8 kHz LEGEND SCALE IS 5 DECIBELS PER DIVISION 90 60 120 30 150 210 240 270 300 330 180 0 AT915AMRx / ML Dimensions 21.0 mm0.83" 91.0 mm 2.6 mm 0.10" 3.58" 30.0 mm1.18" 8.0 mm0.31" 580.0 mm 22.83" 20.28" 515.0 mm TO 131.5 mm5.18"
