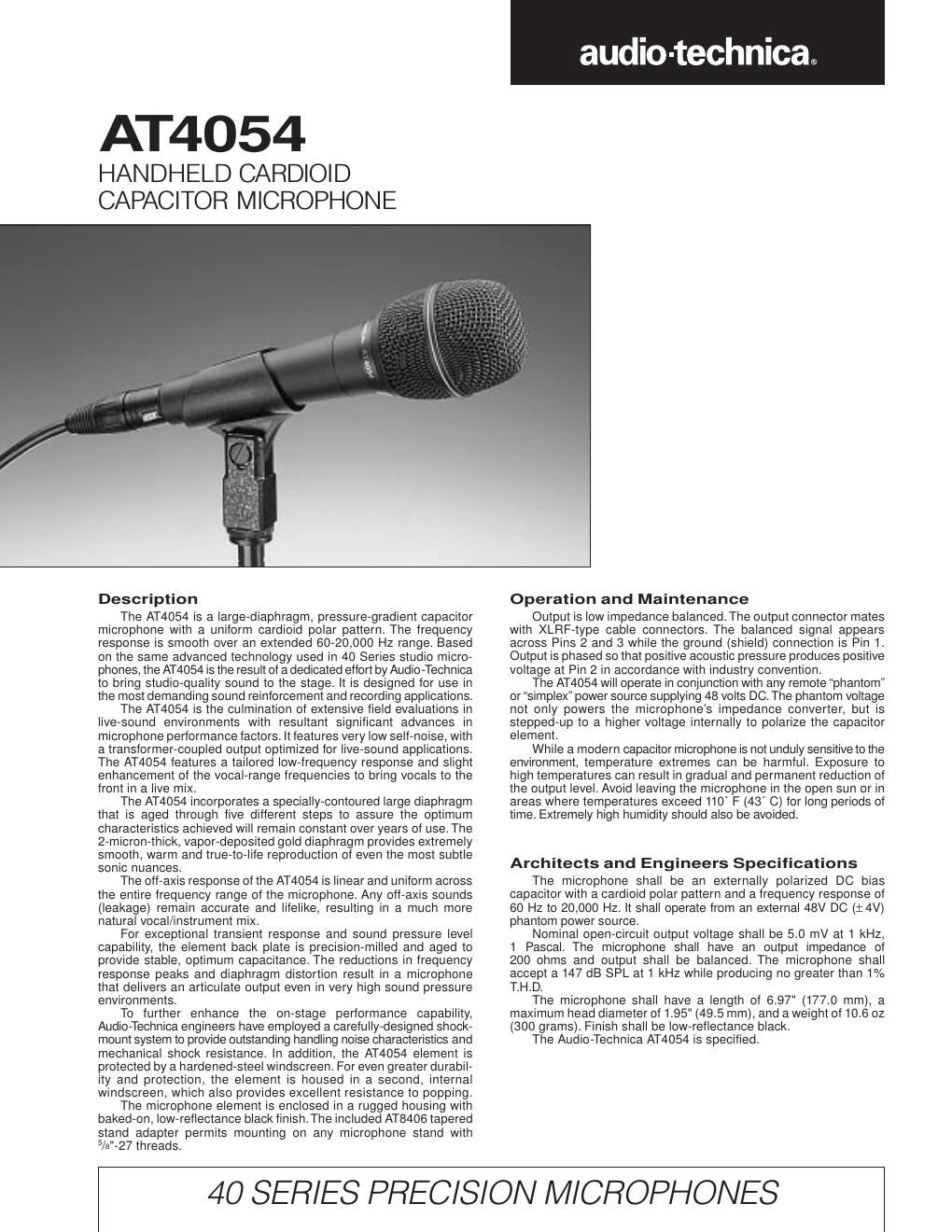

AT4054 Specifications   ELEMENTExternally polarized (DC bias) capacitor POLAR PATTERNCardioid (Unidirectional) FREQUENCY RESPONSE60-20,000 Hz OPEN CIRCUIT SENSITIVITY (1 kHz) Ð 46 dB (5.0 mV) ± 2 dB, re 1V at 1 Pa* 1 IMPEDANCE 200 ohms MAXIMUM INPUT SOUND LEVEL147 dB SPL, 1 kHz at 1% T.H.D. NOISE, TYPICAL (A-WEIGHTED) 2 18 dB SPL DYNAMIC RANGE, TYPICAL 129 dB, 1 kHz at Max SPL SIGNAL-TO-NOISE RATIO, TYPICAL76 dB, 1 kHz at 1 Pa* POWER REQUIREMENTS48V DC phantom (±4V) CURRENT CONSUMPTION, TYPICAL 4.0 mA WEIGHT (LESS CABLE AND CLAMP) 10.6 oz (300 grams) DIMENSIONS 6.97" (177.0 mm) long, 1.95" (49.5 mm) maximum head diameter ACCESSORIES FURNISHED AT8406 tapered clamp for 5/8"-27 threaded stands; protective carrying case  In the interest of standards development, A .T.U.S. offers full details on its test methods to other industry professionals on request. * 1 Pascal = 10 dynes /cm 2 = 10 microbars = 94 dB SPL 1Measured at diaphragm2Using Audio Precision System One Frequency Response DimensionsOptional Accessories: ¥AT8114 foam windscreen (slip-on). ¥AT8314 2-conductor, shielded, vinyl-jacketed, broadcast-type cable with XLRF-type connector at microphone end, XLRM-type connector at equipment end. Available in 10', 20', 25', 30', 50' & 100' lengths. ¥AT8407 universal Òclothes-pinÓ stand clamp fits both tapered and cylindrical microphones. ¥ AT8410a shock mount for boom or stand operation. Universal Òclothes-pinÓ clamp fits tapered and cylindrical microphones. ¥ AT8415 shock mount for boom or stand operation. ¥CP8506 four-channel 48V phantom power supply (AC powered). ¥ AT8801 single-channel 48V phantom power supply (AC powered). Outside the U.S.A., please contact your local dealer for warranty details. One -Year Limited Warranty Audio -Technica microphones and accessories purchased in the U.S.A. are warranted for one year from date of purchase by Audio-Technica U.S., Inc. (A .T.U.S.) to be free of defects in materials and workmanship. In event of such defect, product will be repaired promptly without charge or, at our option, replaced with a new product of equal or superior value if delivered to A.T.U.S. or an Authorized Service Center, prepaid, together with the sales slip or other proof of purchase date. Prior approval from A.T.U.S. is required for return. This warranty excludes defects due to normal wear, abuse, shipping damage, or failure to use product in accordance with instructions. This warranty is void in the event of un- authorized repair or modification, or removal or defacing of the product labeling. For return approval and shipping information, contact the Service Department, Audio -Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224. Except to the extent precluded by applicable state law, A.T.U.S. will have no liability for any consequential, incidental, or special damages; any warranty ofmerchantability or fitness for particular purposeexpires when this warranty expires. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. LEGEND 12" or more on axis 50 100 200 500 1k2k 5k10k 20k Frequency in Hertz Response in dB 10 dB 1 26" to 0.87" 32 0 mm to 22.0 mm 177.0 mm 6.97" 1.95"49 5 mm Polar Pattern 1 kHz 8 kHz 5 kHz LEGEND 60 SCALE IS 5 DECIBELS PER DIVISION 210 150 180 240 120 270 90 0 300 330 30 200 Hz Same as 1 kHz Form No. 0345 - 0820- 00-B/ W ã1997 Audio -Technica U.S., Inc. Printed in U.S.A. Audio -Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224 Audio -Technica Limited, Old Lane, Leeds LS11 8AG England
