Page 1

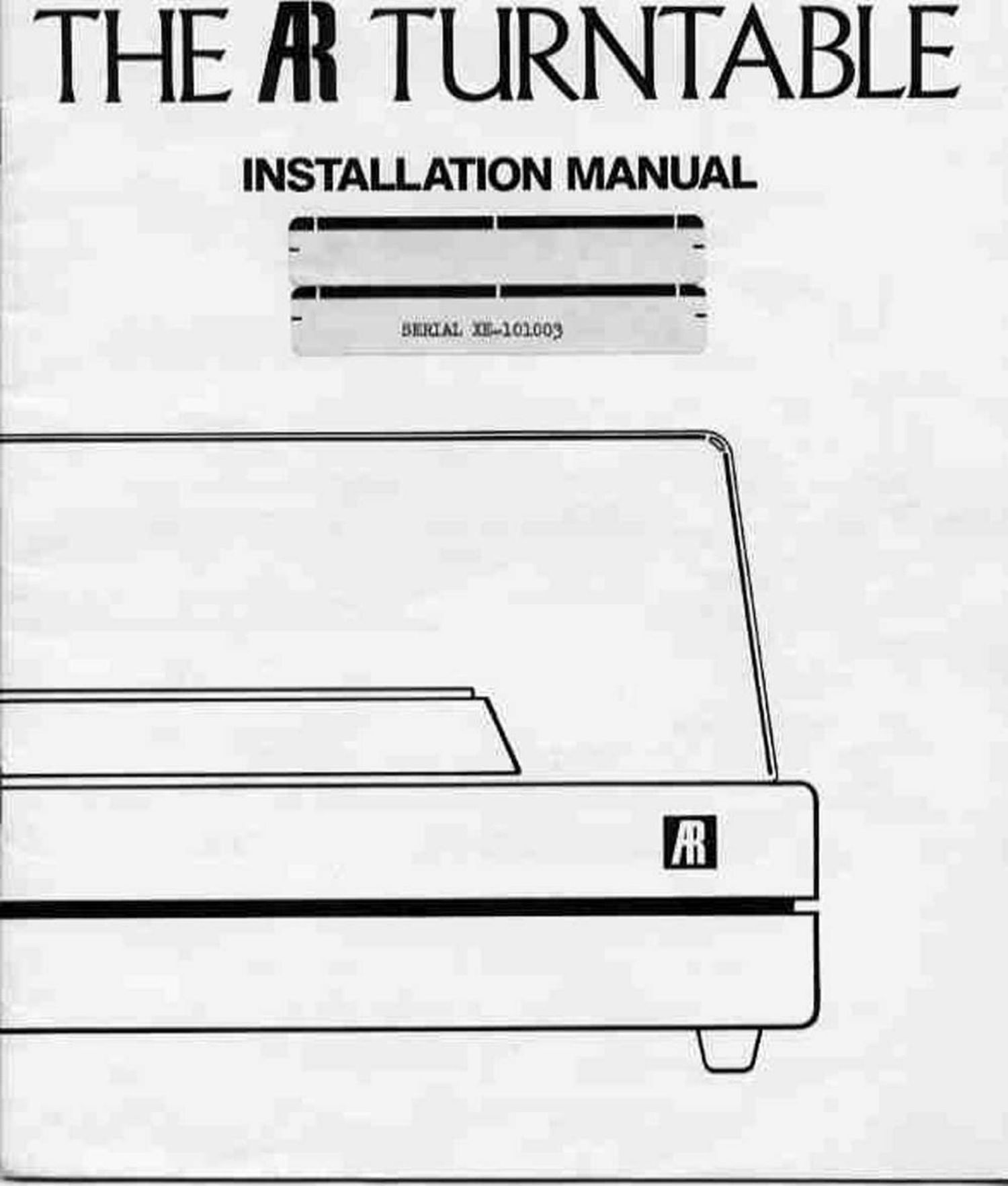

THE III TURNTABLE
INSTALLATION MANUAL
mum. 11-10100)
Page 2
SAFETY LABELS
Certain models of the AR Turntable will contain warning labels as explained below:
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION TO REDUCE THE RISK OF
ELECTRIC SHOCK DO MOI
REMOVE SCREWS
NO USER SERVICEABLE PARIS
iNSIDC
REFER SERVlCth YUUUAI lI' Iii)
SFRVII'T I HHUNNEI
The lightning llash With arrowhead symbol, within an eqwlateral triangle, IS intended to alert the user to the
presence of uninsulated dangerous voltage" within the product's enclosure that may be ol sufficient magnitude
to constitute a risk of electric shock to persons
The exclamation paint within an equilateral triangle is intended to alert the user to the presence of Important
operating and maintenance (serwcmg) Instructions In the literature accompanying the appliance.
TURNTABLES PURCHASED IN THE UNITED KINGDOM WITH A THREE CORE MAINS CABLE
WARNING: THIS APPARATUS MUST BE EARTHED
IMPORTANT. The wires in the mains lead attached to this turntable are col0ured In accordance with the following code:
Green and yellow : Earth
Blue : Neutral
Brown ; Live
As the colours of the wires in the mains lead ol this apparatus may not c0rrespond With the coloured markings Identifying the
terminals in your plug proceed as follows:
The wire which Is coloured green-and-yellow must be connected to the terminal In the plug which is marked by the letter E or by
the safety earth symbol +or coloured green-and-yellow.
The wire which is coloured blue must be connected to the terminal which Is marked With the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
TURNTABLES PURCHASED IN THE UNITED KINGDOM WITH A TWO CORE MAINS LEAD
IMPORTANT. The wires in the mains lead attached to this turntable are coloured In accordance with the following code:
Blue : Neutral
Brown : Live
As the colours of the Wires In the mains lead of this apparatus may not c0rrespond With the coloured markings identifying the
terminals in your plug proceed as follows:
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked With the letter L or coloured red.
-a-
