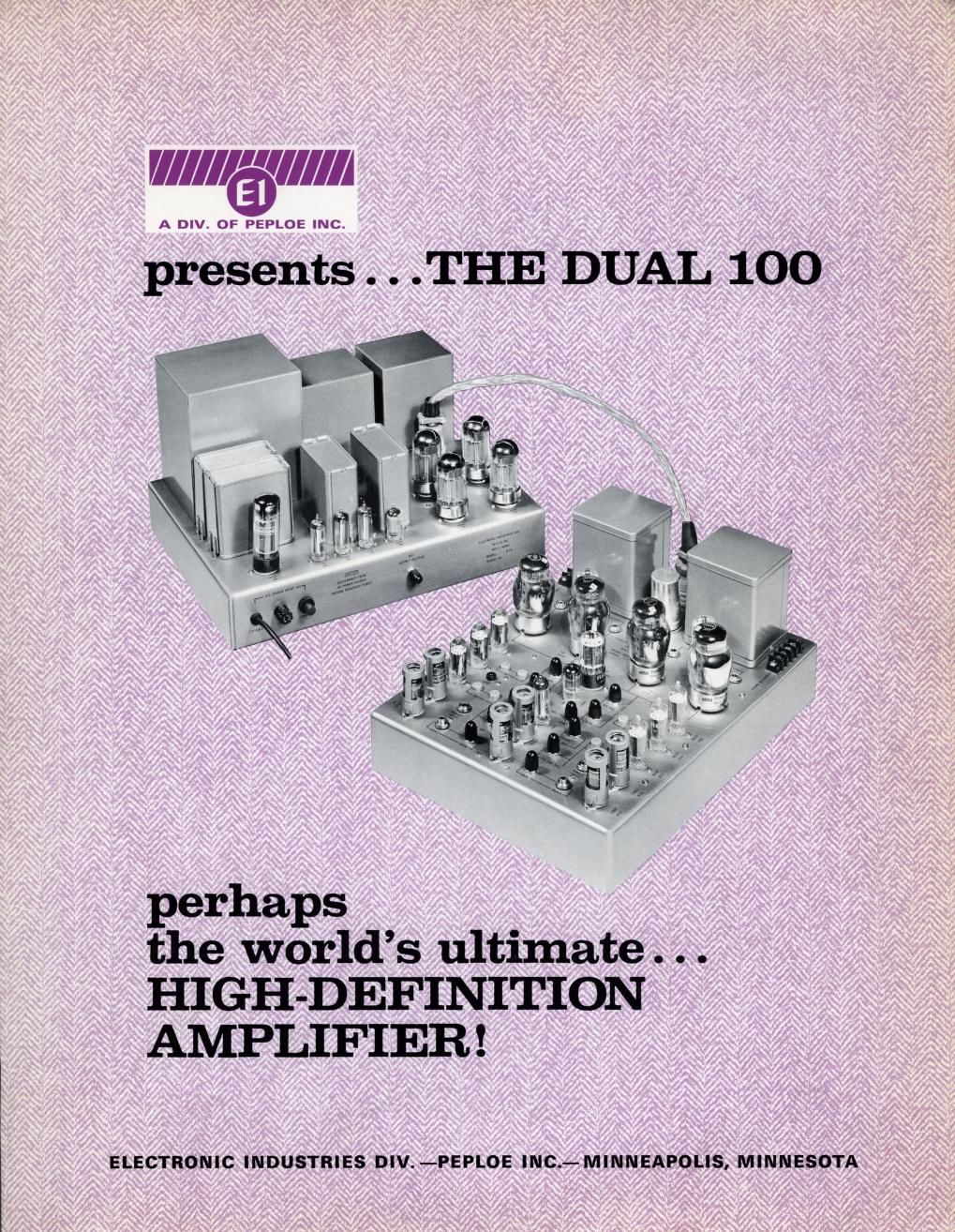

Page 1
IIIIIIIéfiI/IIIA
A DIV. OF PEPLOE INC.
presents . . .THE DUAL 100
perhaps
the worlds ultimate . . .
HIGH-DEFINITION
AMPLIFIER!
ELECTRONIC INDUSTRIES DIV. -PEPLOE INC.-MINNEAPOLIS, MINNESOTA
Page 2
Frequency response:
Sine Wave Power:
Harmonic Distortion:
Hum and noise:
Input Sensitivity:
Impulse Distortion:
Permissible Loads:
Output Impedances:
Load Regulation:
Size:
Weight:
specification
(all tests - both channels operating)
1 .1 db 30 Hz to 15 KHzat 1 watt
:1 db 30 Hz to 15 KHz at 75 watts
At least 75 watts RMS 30 Hz to 15 KHz
Less than .15% at l KHz at 75 watts
At least 80 db below rated output
1.0 volts RMS for rated output
Essentially none # 30 Hz to 15 KHZ
Open circuit, resistive, capacitive, inductive, or any combination, series or parallel
4, 8, 16 ohms
From 16 ohm resistive load to open circuit less than 1 db change at I KHz
Power supply - 17 x13 x 101/2
Amplifier -- 17 x13 x 8
Power supply - 88 lbs.
Amplifier - 45 lbs.
