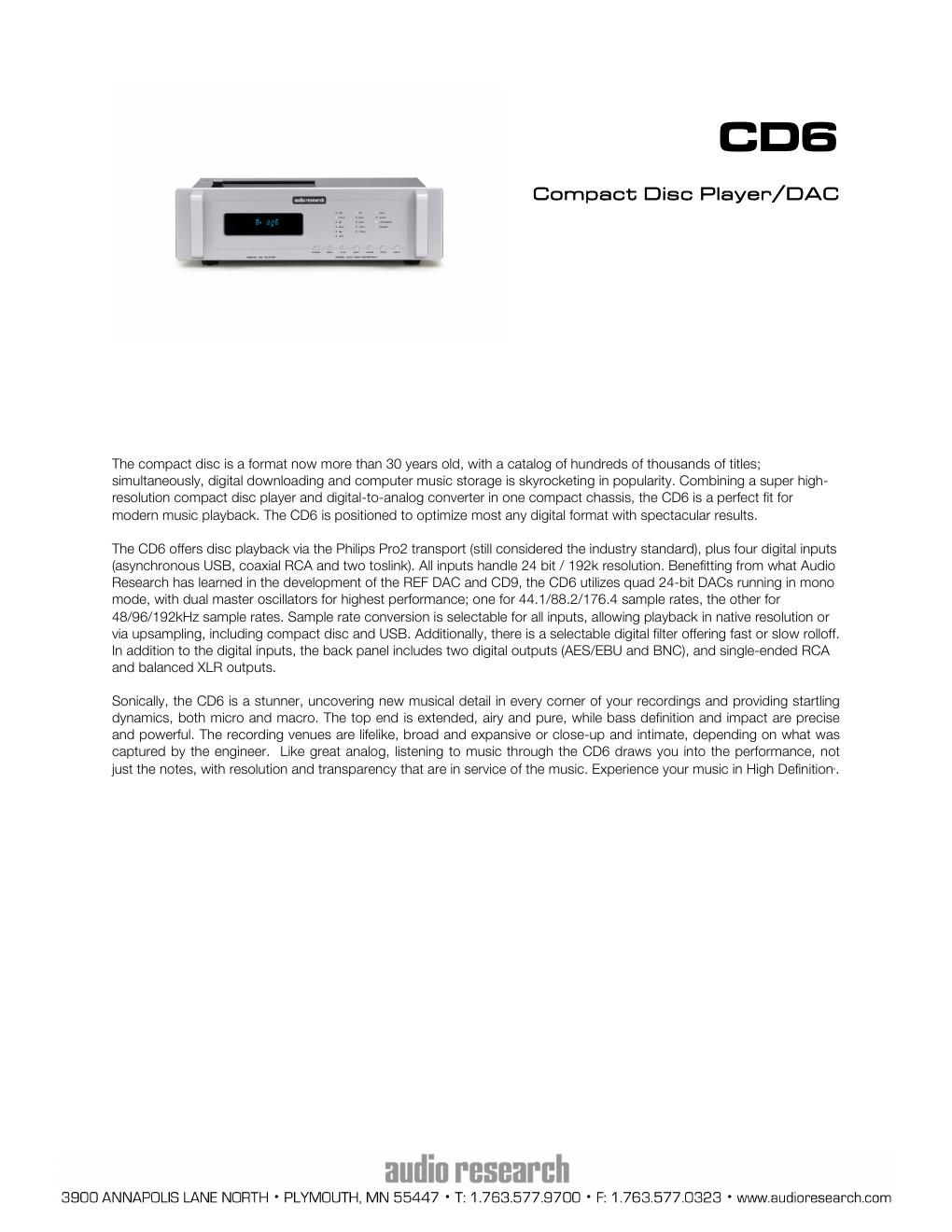

Audio research cd 6 brochure

Page 1

! SPECIFICATIONS Frequency Response: +0-3dB, 3Hz to 96kHz at rated output. 0.15dB 20Hz to 20kHz. (Balanced, 200k ohms load)@ 192kHz sample rate. Distortion: THD+N Less than .004% at 2V RMS BAL output. Signal-Noise-Ratio: 110dB Dynamic Range (AES17): 111dB IMD (SMPTE): .003% RMS Noise level: -95dBV (20-20kHz) Gain: 16.5dB Balanced, 8.3dB SE. Input Impedance: Digital: 75 ohms RCA, 110 ohms AES/EBU, OPT 660nm TOSLink fiber 44.1 to 96kHz. Output Impedance: 500 ohms Balanced, 250 ohms SE Main (2), 20K ohms minimum load and 2000pF maximum capacitance. Output Polarity: Non-inverting. Max. Output: At 0.0dB input, 5V RMS into 200K ohm balanced load. Digital Sample Rates: 24 bits @ 44.1kHz to 192kHz, SPDIF, AES/EBU and USB 2.0 HS. Upsampling: Select upsampling or Native mode; CD, RCA, AES/EBU, TOS upsample to 176.4 or 192kHz. USB upsamples to 88.2 or 96kHz. Master Oscillator: 22.579mHz ±20Hz for 44.1, 88.2 & 176.4kHz. 24.576mHz ±20Hz for 48, 96 & 192kHz. Intrinsic Jitter: <10ps Outputs Digital: XLR Balanced AES/EBU 110-ohms 4V P-P, BNC coax SPDIF 75-ohms 0.7V P-P. Channel Separation: 103dB @ 1kHz. Push buttons: Power, Previous, Stop, Pause, Play, Next, Input. Signal Format (disc): Sample freq. 44.1kHz, Quantization bit; 16bit linear/channel, Channel bit rate; 4.3218Mb/sec, Channel modulation code; EFM (8-14 modulation), Error Correction; CIRC. Drive Mechanism (Top Load): Wow & Flutter; Un-measureable (Quartz stability); Discs; Accepts 5" (12cm) and 3" (8cm) sizes. Optical pickup: Type; 3-beam LDGU (Laser Diode & Grating Unit), with holographic diffraction light pen, Laser; GaAlAs semiconductor, 780nm, 0.5mW max. output, Servo; Digitally-controlled low inertia linear positioning actuator. Jitter reduction: High-stability crystal-controlled re-clocking for all outputs. Display: Six-digit vacuum fluorescent with optical filter; LED display; CD, AES, USB, RCA, TOS, Fast, Slow, Upsample, Power, 44.1, 48, 88.2, 96, 176.4, 192kHz. Remote Buttons: Repeat track/disc, 0-9 digit entry keys, Scan ten seconds each track, Pause program, Stop program, Play, Shuffle tracks, Program enters selection on program list, Time elapsed, remaining track, remaining disc, A/B repeat segment, Filter select, Input select, Pause, Play, Skip>, Skip<, FF, FR, Upsample/Native mode, DSP-DN, DSP-UP, Power Requirements: 105-125VAC 60Hz (210-250VAC 50/60Hz) 23 watts maximum. Sleep mode 0.5 watts maximum. Dimensions: Width: 19" (48 cm) Height: 5.25" (13.4 cm) (standard rack panel) Depth: 12.25" (31.1 cm) Handles extend 1.50" (3.8 cm) forward of the front panel. Weight: 25.9 lbs. (11.8 kg) Net; 34 lbs. (15.5 kg) Shipping.
