ENGLISH

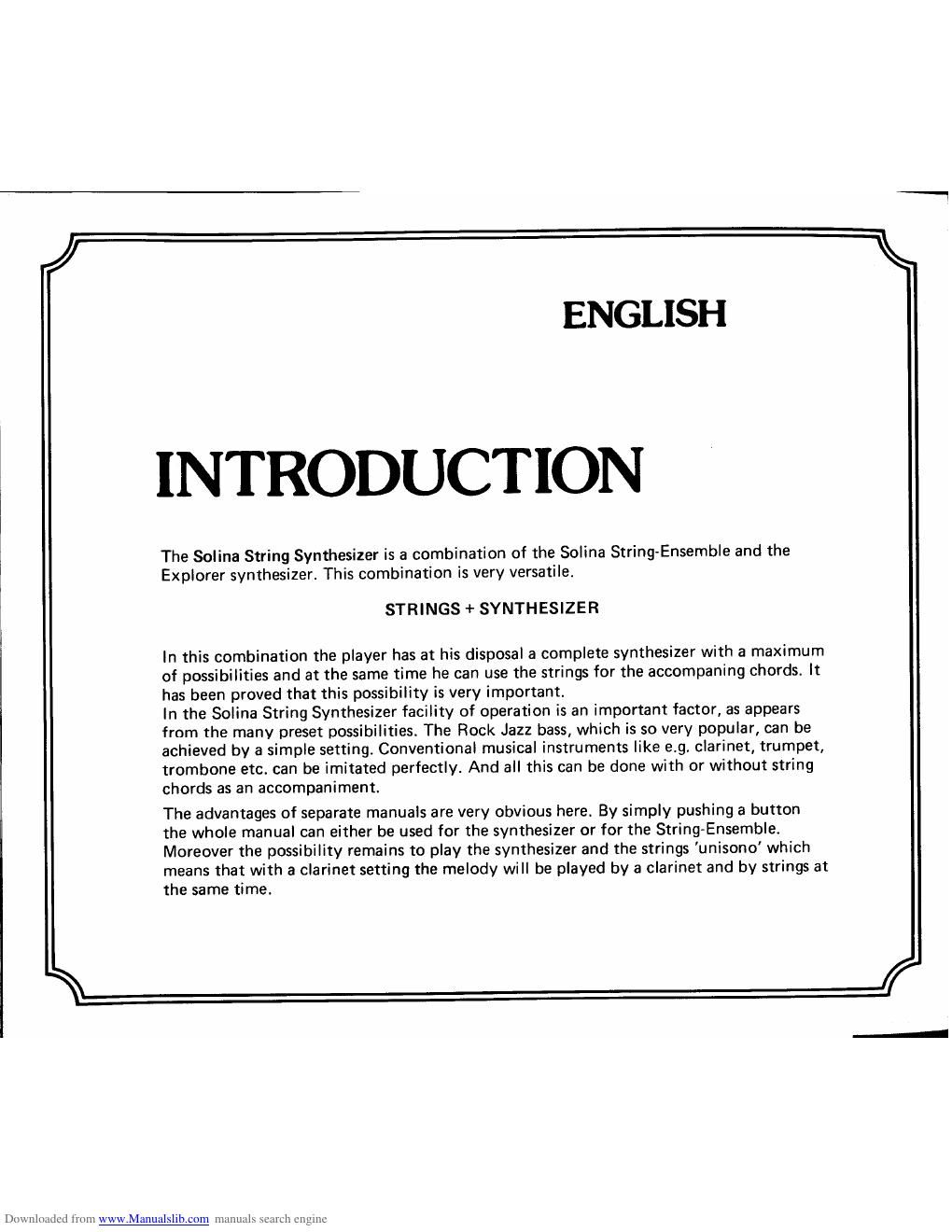

INTRODUCTION

The Solina String Synthesizer is a combination of the Solina String-Ensemble and the
Explorer synthesizer. This combination is very versatile.

STRINGS + SYNTHESIZER

In this combination the player has at his disposal a complete synthesizer with a maximum
of possibilities and at the same time he can use the strings for the accompaning chords. it
has been proved that this possibility is very important.

In the Solina String Synthesizer facility of operation is an important factor, as appears
from the many preset possibilities. The Rock Jazz bass, which is so very popular, can be
achieved by a simple setting. Conventional musical instruments like 9.9. clarinet, trumpet,
trombone etc. can be imitated perfectly. And all this can be done with or without string
chords as an accompaniment.

The advantages of separate manuals are very obvious here. By simply pushing a button
the whole manual can either be used for the synthesizer or for the String-Ensemble.
Moreover the possibility remains to play the synthesizer and the strings 'unisono' which
means that with a clarinet setting the melody will be played by a clarinet and by strings at
the same time.

boom mtmuzilx >CtllLh

Page 2

STRING-ENSEMBLE

When the black key (40) in the area synthesizer keying' has been depressed, the String-
Ensemble can be played on the whole keyboard.

The push»buttons and the sliders for the String-Ensemble are situated to the far right on
the instrument (area String-Ensemble)

Volume
With the slider switch Volume' (10) the volume of the String-Ensemble can be adjusted.

Registration

The String-Ensemble has the following registration possibilities:

Viola, Violin, Trumpet and Horn (3).

With the voices Viola and Violin a string orchestra effect is created. The Viola register
produces the sound at an 8' tone level, and the register Violin at an 4 tone level.
Sliding control Sustain Length' (9) regulates the duration of the sound of tone from
maximum till minimum.

Control 'Crescendo' (8) adjusts the expression of the violins. This effect add an extra
dimension to the String-Ensemble and can be adjusted from maximum to minimum.
