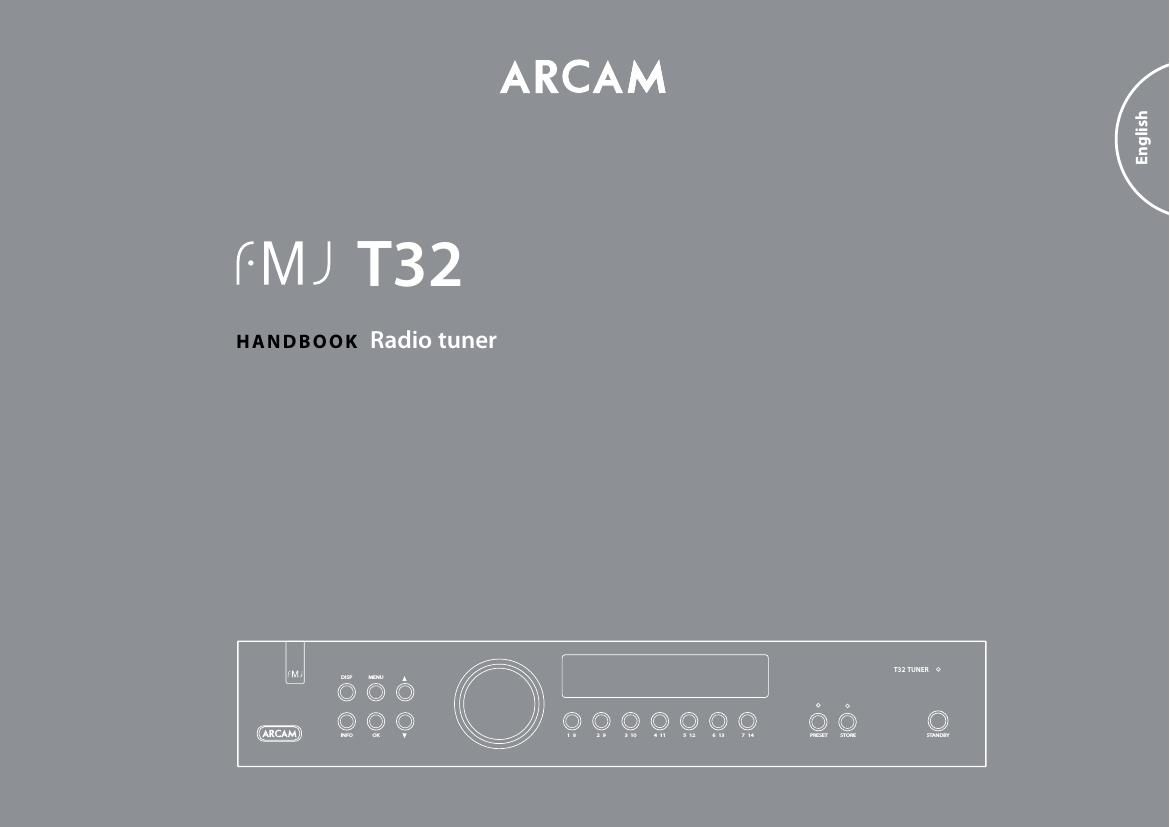

Arcam T32 Owners Manual 2
This is the 18 pages manual for Arcam T32 Owners Manual 2.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Arcam T32 Owners Manual 2 (Ocr-read)
Page 1
e-2 safety guidelines i mportant safety instructions This product is designed and manufactured to meet strict quality and safety standards. However, you should be aware of the following installation and operation precautions. 1. Take heed of warnings and instructions You should read all the safety and operating instructions before operating this equipment. Retain this handbook for future reference and adhere to all warnings in the handbook or on the equipment. 2. Water and moisture The presence of electricity near water can be dangerous. Do not use the equipment near water – for example next to a bathtub, washbowl, kitchen sink, in a wet basement or near a swimming pool, etc. 3. Object or liquid entry Take care that objects do not fall and liquids are not spilled into the enclosure through any openings. Liquid- filled objects such as vases should not be placed on the equipment. 4. Placing the equipment Only use a rack or shelf that is stable and strong enough to support the weight of this equipment. 5. Ventilation Do not place the equipment on a bed, sofa, rug or similar soft surface, or in an enclosed bookcase or cabinet, since ventilation may be impeded. Keep a minimum of 5cm (2 inches) clear around the apparatus to allow sufficient passage of air. 6. Heat Locate the equipment away from naked flames or heat- producing appliances such as radiators, stoves or other appliances that produce heat. 7. Climate The equipment has been designed for use in moderate climates and in domestic situations. 8. Cleaning Unplug the unit from the mains supply before cleaning. The case should normally only require a wipe with a soft, lint-free cloth. Do not use chemical solvents for cleaning. We do not advise the use of furniture cleaning sprays or polishes as they can cause permanent white marks. 9. Power sources Only connect the equipment to a power supply of the type described in the operating instructions or as marked on the equipment. The primary method of isolating the equipment from the mains supply is to remove the mains plug. The equipment must be installed in a manner that makes disconnection possible.10. Power-cord protection Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to the point where they exit from the equipment. 11. Non-use periods If the equipment is not being used for an extended period, we recommend that you unplug the power cord of the equipment from the outlet, to save power. 12. Abnormal smell If an abnormal smell or smoke is detected from the equipment, turn the power off immediately and unplug the equipment from the wall outlet. Contact your dealer and do not reconnect the equipment. 13. Servicing You should not attempt to service the equipment. Contact your dealer to arrange servicing. 14. Batteries Batteries should not be exposed to excessive heat (heating systems, sunshine, etc.) or incinerated. You are urged to dispose of batteries in a responsible way. Look for ways in which you can recycle used batteries locally. Recycling batteries keeps heavy metals out of landfills, groundwater, surface water, or air. 15. Power lines Locate any outdoor antenna/aerial away from power lines. 16. Damage requiring service The equipment should be serviced by qualified service personnel when: A. the power-supply cord or the plug has been damaged, or B. objects have fallen, or liquid has spilled into the equipment, or C. the equipment has been exposed to rain, or D. the equipment does not appear to operate normally or exhibits a marked change in performance, or E. the equipment has been dropped or the enclosure damaged. Safety compliance This equipment has been designed to meet the IEC/EN 60065 international electrical safety standard. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Many of These i TeM s a Re co MMon sense p Recau Tions bu T, fo R you R own safe Ty and To ensu Re Tha T you do no T da Mage The uni T, we Reco MMend Tha T you Read The M. ������� ������ �� ���� ���������� �� ��� ������ ���� �� �������� ����� �� ��� ���� ��������� CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. CAUTION: In Canada and the USA, to prevent electric shock, match the wide blade of the plug to the wide slot in the socket and insert the plug fully into the socket. Warning Mains plug/appliance coupler is used to disconnect device and it shall remain readily operable.
Page 2
e-3 english welcome Thank you and congratulations for purchasing your Arcam FMJ radio tuner. Arcam has been producing specialist audio products of remarkable quality for over three decades and the T32 is the latest in a long line of award winning HiFi equipment. It captures FM, AM and (depending on installed options) DAB/DAB+ and/or Sirius satellite radio. By connecting an Arcam rDock or rLead to the T32, you can gain full-featured iPod® connectivity. The design of the FMJ range draws upon all of Arcams experience as one of the UKs most respected audio companies and is built to give you years of trouble-free listening enjoyment. This handbook has been designed to give you all the information you need to install, connect and use the Arcam T32. The CR90 remote control handset supplied with this equipment is also described. Use the contents list shown on this page to guide you to the section of interest. We hope that your FMJ tuner will give you years of trouble-free operation. In the unlikely event of any fault, or if you simply require further information about Arcam products, our network of dealers will be happy to help you. Further information can also be found on the Arcam website at www.arcam.co.uk. The FMJ development team contents safety guidelines ....................................... e-2 Important safety instructions........................... E-2 Safety compliance ................................................ E-2 welcome ...................................................... e-3 installation ................................................. e-4 Placing the unit ..................................................... E-4 Power ........................................................................\ . E-4 Remote control input .......................................... E-4 Interconnect cables.............................................. E-4 rDock connection ................................................. E-6 Radio interference ................................................ E-6 antenna ....................................................... e-8 Which radio aerial? ............................................... E-8 DAB ........................................................................\ ..... E-8 Information on radio transmissions............... E-9 operation ................................................. e-10 Front panel operation ....................................... E-10 Searching for radio stations: AM/FM ........... E-11 Searching for radio stations: DAB .................E-11 Using Sirius satellite radio................................E-12 Presets ..................................................................... E-13 iPod operation ..................................................... E-13 Aux input ................................................................ E-13 remote control ........................................ e-14 The CR90 Universal remote controller ........ E-14 Source keys............................................................ E-14 Remote commands ............................................ E-15 specifications .......................................... e-16 product guarantee ................................e-17 ��� ����� ������ ���� � � � �� � �� � �� � �� � �� ����� ���� ���� �� � � ������� iPod is a trademark of Apple Inc., registered in the U.S. and other countries. SiriusConnect™, channel names and logos and related marks are trademarks of SIRIUS XM Radio Inc.
