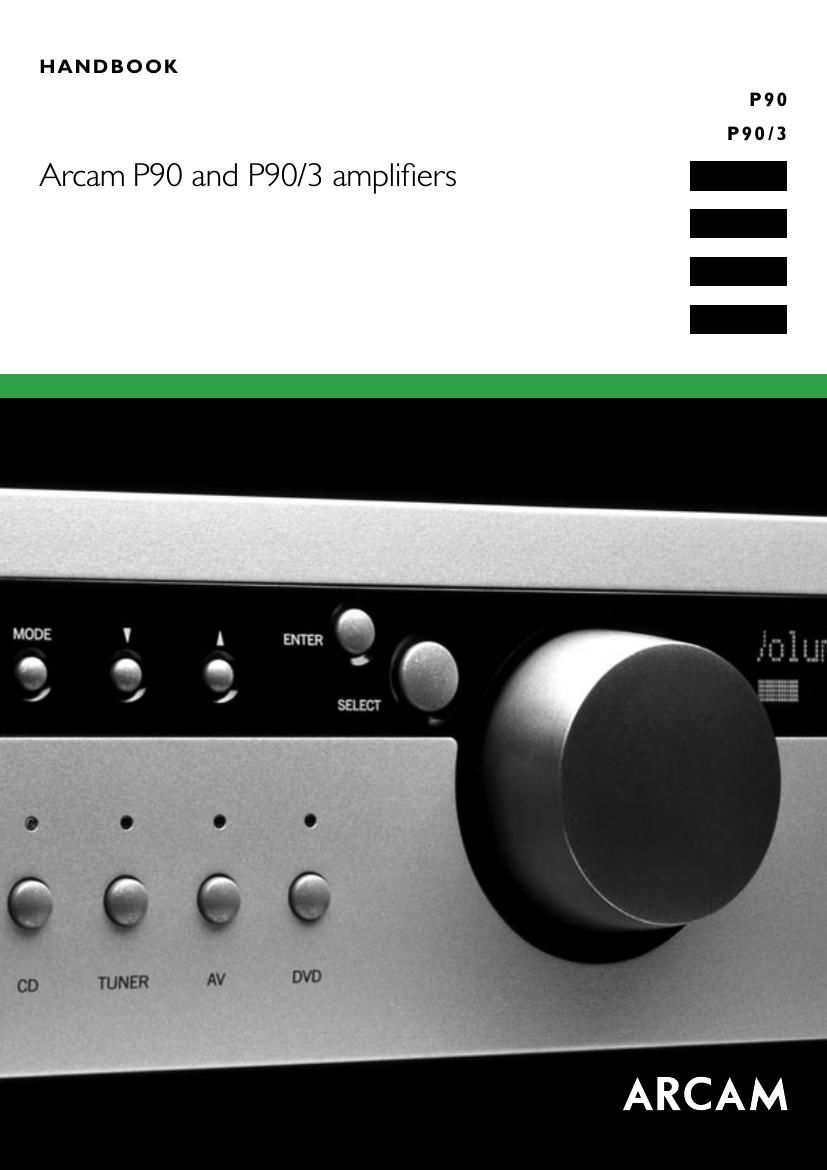

Arcam P90 Owners Manual
This is the 8 pages manual for Arcam P90 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Arcam P90 Owners Manual (Ocr-read)
Page 1
A90/P902 Safety guidelines CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The lightning flash with an arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. CAUTION: In Canada and the USA, to prevent electric shock, match the wide blade of the plug to the wide slot in the socket and insert the plug fully into the socket. Important safety instructions This product is designed and manufactured to meet strict quality and safety standards. However, you should be aware of the following installation and operation precautions: 1. Take heed of warnings and instructions You should read all the safety and operating instructions before operating this appliance. Retain this handbook for future reference and adhere to all warnings in the handbook or on the appliance. 2. Water and moisture The presence of electricity near water can be dangerous. Do not use the appliance near water – for example next to a bathtub, washbowl, kitchen sink, in a wet basement or near a swimming pool, etc. 3. Object or liquid entry Take care that objects do not fall and liquids are not spilled into the enclosure through any openings. Liquid filled objects such as vases should not be placed on the equipment. 4. Ventilation Do not place the equipment on a bed, sofa, rug or similar soft surface, or in an enclosed bookcase or cabinet, since ventilation may be impeded. We recommend a minimum distance of 50mm (2 inches) around the sides and top of the appliance to provide adequate ventilation. 5. Heat Locate the appliance away from naked flames or heat producing equipment such as radiators, stoves or other appliances (including other amplifiers) that produce heat. 6. Climate The appliance has been designed for use in moderate climates. 7. Racks and stands Only use a rack or stand that is recommended for use with audio equipment. If the equipment is on a portable rack it should be moved with great care, to avoid overturning the combination. 8. Cleaning Unplug the unit from the mains supply before cleaning. The case should normally only require a wipe with a soft, damp, lint-free cloth. Do not use paint thinners or other chemical solvents for cleaning. We do not advise the use of furniture cleaning sprays or polishes as they can cause indelible white marks if the unit is subsequently wiped with a damp cloth. 9. Power sources Only connect the appliance to a power supply of the type described in the operating instructions or as marked on the appliance. 10. Power-cord protection Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, and the point where they exit from the appliance. 11. Grounding Ensure that the grounding means of the appliance is not defeated. 12. Power lines Locate any outdoor antenna/aerial away from power lines. 13. Non-use periods If the unit has a standby function, a small amount of current will continue to flow into the equipment in this mode. Unplug the power cord of the appliance from the outlet if left unused for a long period of time. 14. Abnormal smell If an abnormal smell or smoke is detected from the appliance, turn the power off immediately and unplug the unit from the wall outlet. Contact your dealer immediately. 15. Servicing You should not attempt to service the appliance beyond that described in this handbook. All other servicing should be referred to qualified service personnel. 16. Damage requiring service The appliance should be serviced by qualified service personnel when: A. the power-supply cord or the plug has been damaged, or B. objects have fallen, or liquid has spilled into the appliance, or C. the appliance has been exposed to rain, or D. the appliance does not appear to operate normally or exhibits a marked change in performance, or E. the appliance has been dropped or the enclosure damaged. Safety compliance This product has been designed to meet the IEC 60065 international electrical safety standard. RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR ATTENTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN
Page 2
A90/P9010 Connecting to power, loudspeakers and other equipment Follow the installation instructions for the integrated amplifier on pages 4 and 5. AUDIO IN – Connect this input to the output sockets of your pre- amplifier or the PRE OUT sockets of an integrated amplifier. MONO LINK – The power amplifier can be adapted to provide two mono loudspeaker outputs from a single input. Pull out the link supplied and use it to connect the L and R AUDIO OUT sockets together. Using one power amplifier per loudspeaker will enable you to bi-amplify bi-wireable loudspeakers. This is particularly beneficial for top quality stereo installations with a separate pre-amplifier, or where amplifiers are provided for the left, centre and right channel loudspeakers in a five speaker Dolby Pro Logic or Dolby Digital system. Contact your Arcam dealer for more information. Daisy chaining – The power amplifier can be connected to further power amplifiers to drive more speakers (e.g. those in other rooms or tri-amplified speakers, etc). Connect the extra power amplifier inputs to the AUDIO OUT sockets on the power amplifier, left to left, right to right. Installation: P90 power amplifer Remote switching By making a connection from the REMOTE IN socket of the P90 power amplifier to the TRIG OUT socket of the A90 integrated amplifier, you can use the A90 to switch the power amplifier on and off. If configured in this way, the front panel POWER button of the A90 (or the POWER/STANDBY button on the remote control) switches both amplifiers on and off together. This facility allows you to conceal the power amplifier yet still control it. The connecting cable required is a 3.5mm to 3.5mm jack lead (stereo or mono) and it is possible to connect several power amplifiers to an A90 by daisy chaining from TRIG OUT of one P90 into the REMOTE IN of the next. Three channel option The power amplifier can be upgraded from stereo to three channels by adding a Third Channel Module: in this case, the model is designated P90/3. The module offers extra loudspeaker terminals together with a third set of AUDIO IN and OUT phono sockets and converts the P90 into a 3 x 90W (RMS per channel into 8 Ω) amplifier suitable for Home Cinema or multi-channel audio use. Contact your Arcam dealer for further details. +R/CH1 – CTR/CH3 SP1 SP2 POWER INLET OUT IN L R VOLTAGE SELECT 230V 4 – 16 OHMS + L/CH2 – + R/CH1 – + L/CH2 – AUDIO SP1SP2 4 – 16 OHMS + CTR/CH3 – + CTR/CH3 – AUDIO IN OUT LINK REMOTE IN TR G OUT Optional Third Channel Module – provides a third 90W channel suitable for Home Cinema or multi-channel audio use.
