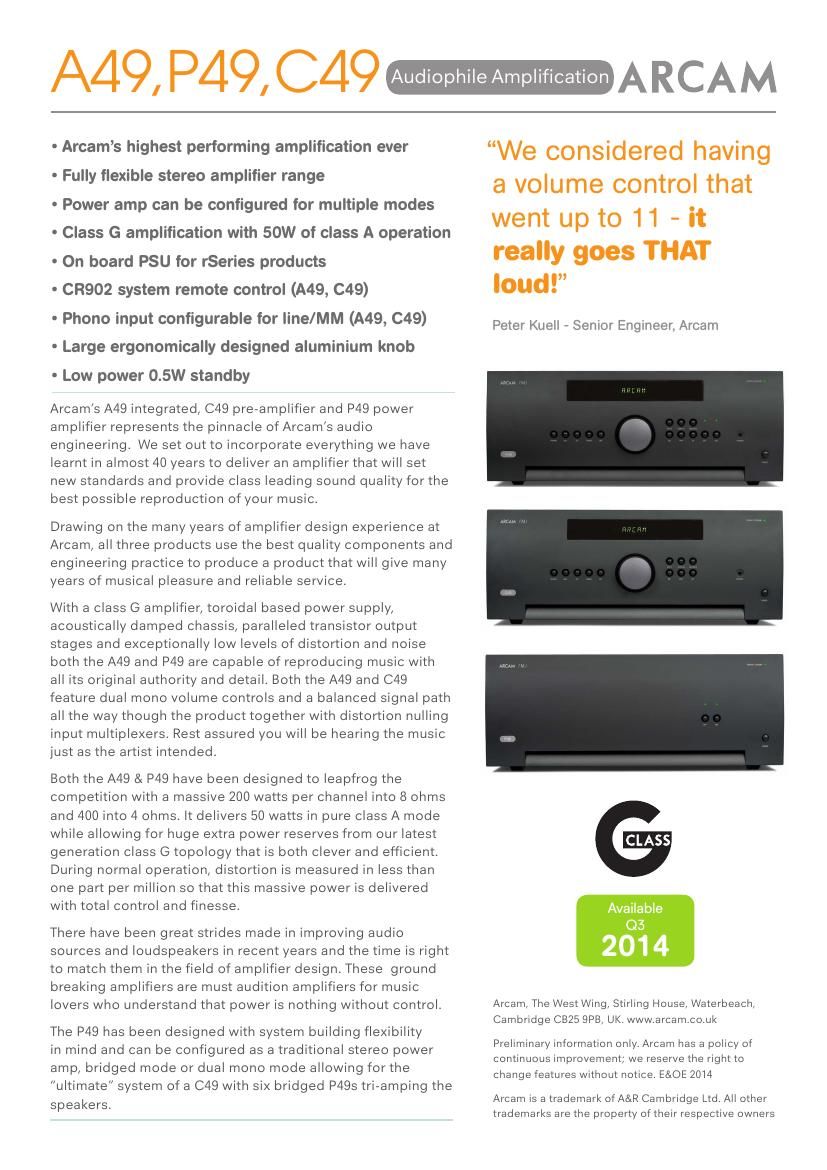

A49 - Integrated C49 - Pre-amplifier P49 - Power amplifier Continuous power output (20Hz-20kHz at 0.2% THD), per channel Both channels, 8Ω, 20Hz-20kHz 200W Single channel, 4Ω, at 1kHz 400W Harmonic distortion, 80% power, 8Ω at 1kHz 0.001% Inputs Phono (MM) cartridge: Input sensitivity at 1kHz 5mV Input impedance 47kΩ + 100pF Frequency response (ref. R AA curve) 20Hz-20kHz ± 1dB Signal/noise ratio (Awtd) 50W, ref. 5mV input 80dB Overload margin, 5mV at 1kHz 20dB Inputs: RCA typeXLR type Nominal sensitivity 1V2V Input impedance 10kΩ10kΩ Maximum input 8V15V Frequency response 20Hz-20kHz ± 0.05dB Signal/noise ratio (Awtd) 50W, ref. 1V/2V input 105dB Preamplifier output RCA type XLR type Nominal output level 1.15V2.3V Output impedance 47Ω200Ω Headphones output Maximum output level into 600Ω 4Vrms Output impedance 1Ω Load range 16Ω-2kΩ E&OE NOTE: All specification values are typical unless otherwise stated. Inputs Phono (MM) cartridge: Input sensitivity at 1kHz 5mV Input impedance 47kΩ + 100pF Frequency response (ref. R AA curve) 20Hz-20kHz ± 1dB Signal/noise ratio (Awtd) 50W, ref. 5mV input 80dB Overload margin, 5mV at 1kHz 20dB Inputs: RCA typeXLR type Nominal sensitivity 1V2V Input impedance 10kΩ 10kΩ Maximum input 4.6V8.2V Frequency response 20Hz-20kHz ± 0.05dB Signal/noise ratio (Awtd) 50W, ref. 1V input 105dB Preamplifier output RCA type XLR type Nominal output level 1.15V2.3V Output impedance 47Ω200Ω Headphones output Maximum output level into 600Ω 4Vrms Output impedance 1Ω Load range 16Ω-2kΩ E&OE NOTE: All specification values are typical unless otherwise stated. Continuous power output (20Hz-20kHz at 0.2% THD), per channel Both channels, 8Ω, 20Hz-20kHz 200W Single channel, 4Ω, at 1kHz 400W Bridged mode, 4Ω, at 1kHz 1.1kW Harmonic distortion, 80% power, 8Ω at 1kHz 0.001% Inputs PWR IN input: RCA typeXLR type Nominal sensitivity for 200W / 8Ω 1.15V2.3V Input impedance 10kΩ10kΩ Frequency response 20Hz-20kHz ± 0.05dB Signal/noise ratio (Awtd) ref 50W / 8Ω 110dB E&OE NOTE: All specification values are typical unless otherwise stated. A49,P49,C49 Audiophile Amplification
