Arcam CR 80 Owners Manual

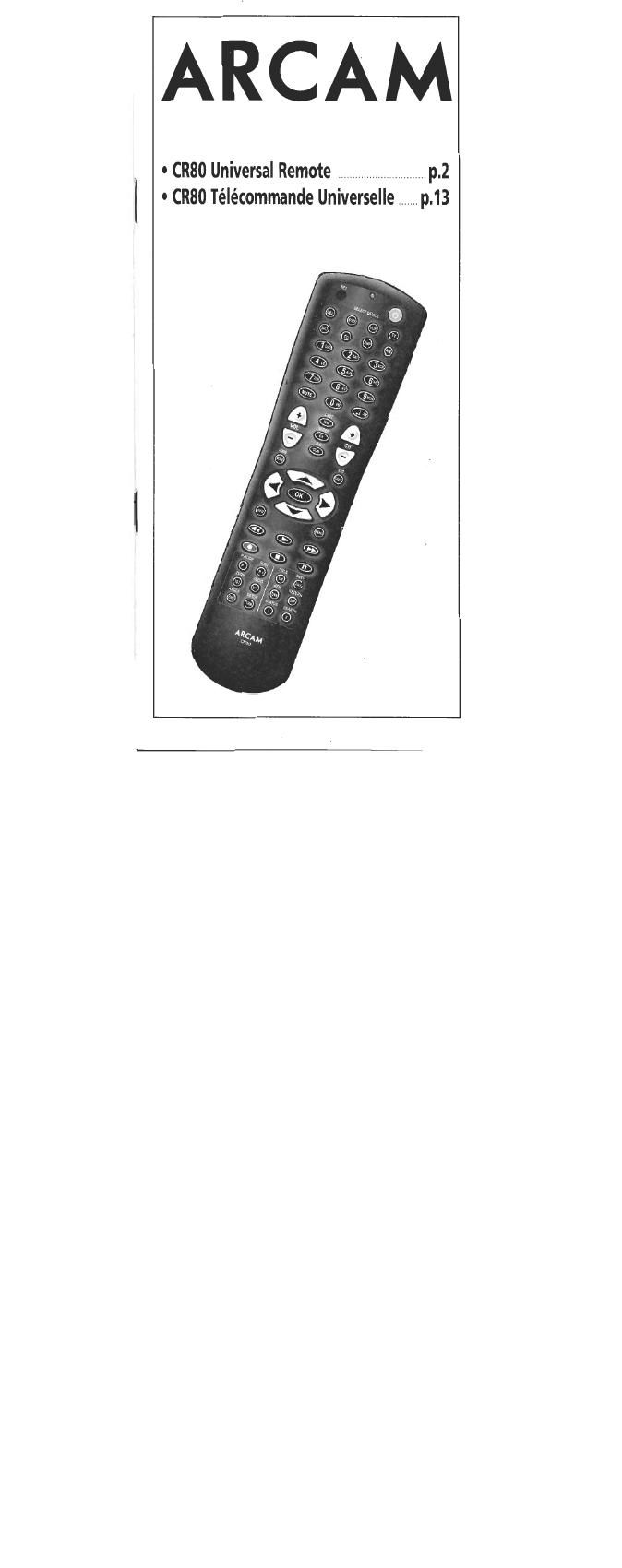

Page 1

ARCAM

0 CR80 Universal Remote ............................. p.2
0 CR80 Télécommande Universelle ....... p.13

Page 2

TABLE OF CONTENTS

INTRODUCTION 2
INSTALLING THE BATTERIES 3

FEATURES AND FUNCTIONS
Basic Operation 3
Picture of the ARCAM {REG 4
Controlling AV components, General Use 5
Controlling Arcam AV Components 6

PROGRAMMING OTHER COMPONENTS 7
SEARCHING FOR YOUR CODE 8
LEARNING A FUNCTION 9
RE-ASSIGNING DEVICE KEYS l0
CHANGING VOLUME LOCK il
TROUBLE SHOOTING 12
MANUFACTURER'S CODES
Setup Codes for TV 2::
Setup Codes for VCRs 25
Setup Codes for Cable Converters 26
Setup Codes for Satellite or DBS Receivers 26
Setup Codes for CD Players 26
Setup Codes for DVD Players 26
Setup Codes for L0 Players 27
Setup Codes for Cassette Decks 2?
Setup Codes for Stereo Tuners or Receivers 27
Setup Codes for AV Processors 27
Setup Codes for Home Automation 27
Setup Codes for DES Audio Services 27
Setup Codes for Video Accessories 2]
INTROD UCT I ON

The ARCAM CRSO is the complete solution for all of your remote control
requirements. it is designed to operate up to eight devices with the
emphasis on features and functions of Arcarn components.

The ARCAM CR3!) is also customizable to allow for key configurations that
meet your specific needs. Its also packed with the following features.

- Preprogrammed technology (or easy setup
. Designed for use With up to eight devices
. ln(|usive audio library

- Upgradability

- Backlighting

- Learning capability

This manual provides a basic overview on how to set up and operate the
ARCAM (R80. Please read the following instructions to see how easy
setup is.

I The CRBO remote control is custom manufactured for Arcam by Universal
Electronics, Inc.

INSTALLING BATTERIES

1 On the back of the ARCAM CRSO, push the tab and lift off the
battery cover.

2 Obtain two (2) lully-(harged AA alkaline batteries, Match
the + and 7 marks on the batteries to the + and 7 marks in the
battery case, then insert the new batteries.

3 Press the battery cover back into place. The tab should click when
the cover is locked.

a Test the unit by pressing PWR and any device key {e.g., AUX, CBL
VCR, etc). if the batteries are inserted correctly, the LED will blink
once upon each keypress.

NOTE: When batteries need replacement, the ARCAM CR8!) will blink twice
with every keypress. Simply replace them and the remote control Will be
restored to its full functionality, includmg favorite settings.

FEATURES AND FUNCTIONS

Basic Operation

The Arcam CRBD is tyre-programmed to operate Arcam amplifiers, DVD
players, CD players and AMIFM tuners. For full operating details, please
read the rest of the manual.

To control an AV component, first press the relevant key in the SELECT
DEVCE area of the remote.

In addition, this remote control contains a library of remote codes for other
manufacturers of Av system components, listed in the back of this manual.

The CR8!) also has the capability of learning remote functions that are not
available in the code library. In order to make best use of the limited mer
mory available for learning, we strongly recommend that you use the
library codes Where possible for your non»Arcam tomponents. and then
learn new codes for non-library components.
