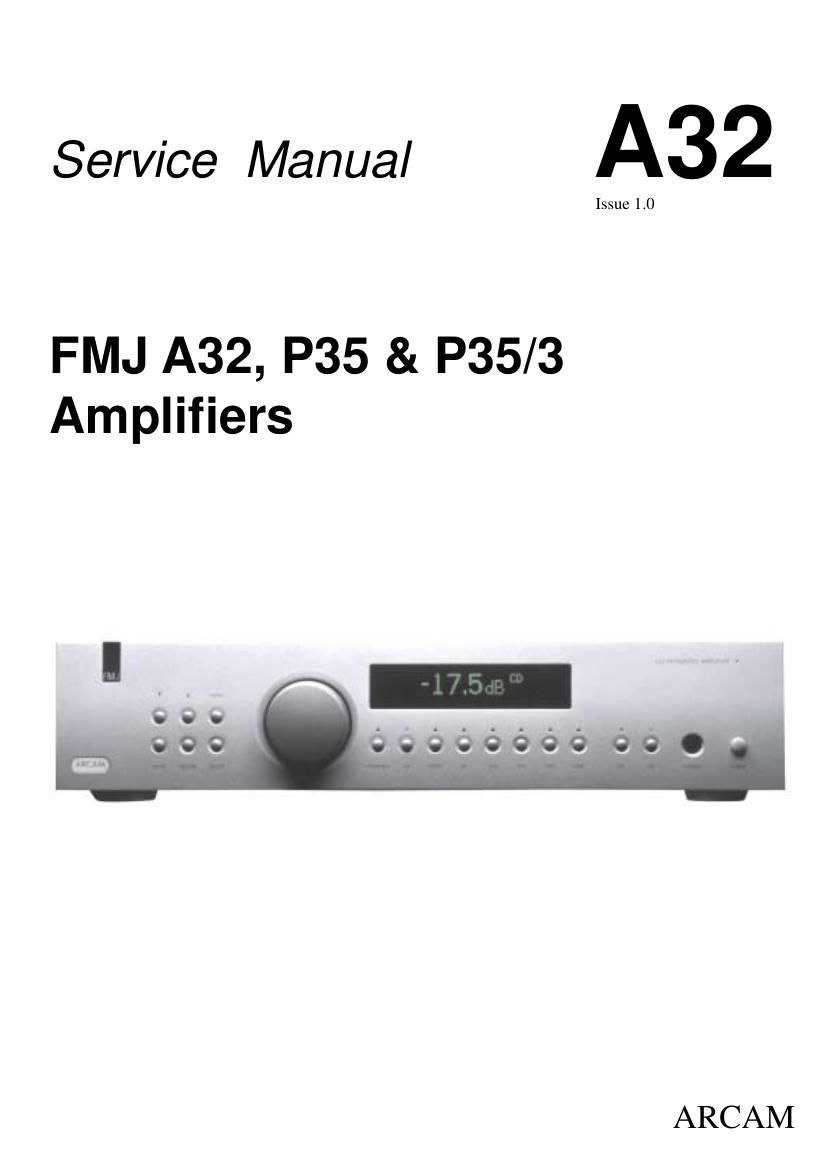

Arcam A32 int sm
This is the 59 pages manual for Arcam A32 int sm.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Arcam A32 int sm (Ocr-read)
Page 1
Contents List ! Phono board L870 oCircuit description oComponent overlay oParts list oCircuit diagrams ! Amplifier & PSU board L882 oCircuit description oComponent overlay oParts list oCircuit diagrams ! Display board L928 oComponent overlay oParts list oCircuit diagrams ! Preamplifier board L937 oCircuit description oComponent overlay oParts list oCircuit diagrams ! 3rd Channel Amplifier board L911 oComponent overlay oParts list oCircuit diagrams ! Transformer specifications oL914TX oL915TX ! General assembly oA32 - Mechanical parts list oP35 - Mechanical parts list oP35/3 - Mechanical parts list
Page 2
Phono Board L870 Contents ! Circuit description ! Component overlay ! Parts list ! Circuit diagrams
Page 37
L937 Preamplifier Board Parts List Issue 1.0 Designator Part Description D116 3AV99W DIODE SS SM BAV99W D117 3AV99W DIODE SS SM BAV99W D118 3AV99W DIODE SS SM BAV99W D119 3AV99W DIODE SS SM BAV99W D120 3AS16W DIODE SS SM BAS16W D121 3AV99W DIODE SS SM BAV99W D122 3AV99W DIODE SS SM BAV99W D300 3BS1D RECT S1D 1A 200V SM D301 3BS1D RECT S1D 1A 200V SM D302 3AS16W DIODE SS SM BAS16W D304 3AS16W DIODE SS SM BAS16W D305 3AS16W DIODE SS SM BAS16W D306 3BS1D RECT S1D 1A 200V SM D307 3BS1D RECT S1D 1A 200V SM D308 3AS16W DIODE SS SM BAS16W D310 3CW315V ZENER 15V OW35 SM SOT23 D311 3CW315V ZENER 15V OW35 SM SOT23 F300 C3751 FUSE R452 T750mA F301 C3751 FUSE R452 T750mA PCB1 L937PB_1 PRINTED CIRCUIT BOARD Q100 4A849B TRANS LF SS N SM BC849B Q300 4J112 TRANS JFET N J112 Q301 4B5248 TRANS AUDIO DRIVER N 2SC5248 Q303 4J112 TRANS JFET N J112 Q305 4B1964 TRANS AUDIO DRIVER P 2SA1964 Q306 4A846B TRANS LF SS N SM BC846B Q307 4A856B TRANS LF SS P SM BC856B R100 1A210 RES SM W4 1% 1K0 1206 R101 1A210 RES SM W4 1% 1K0 1206 R102 1A210 RES SM W4 1% 1K0 1206 R103 1A410 RES SM W4 1% 100K 1206 R104 1A410 RES SM W4 1% 100K 1206 R105 1A410 RES SM W4 1% 100K 1206 R106 1A510 RES SM W4 1% 1M0 1206 R107 1A510 RES SM W4 1% 1M0 1206 R108 1A047 RES SM W4 1% 47R 1206 R109 1A047 RES SM W4 1% 47R 1206 R110 1A222 RES SM W4 1% 2K2 1206 R111 1A222 RES SM W4 1% 2K2 1206 R112 1A322 RES SM W4 1% 22K 1206 R113 1A322 RES SM W4 1% 22K 1206 R114 1A322 RES SM W4 1% 22K 1206 R115 1A227 RES SM W4 1% 2K7 1206 R116 1A227 RES SM W4 1% 2K7 1206 R117 1A256 RES SM W4 1% 5K6 1206 R118 1A322 RES SM W4 1% 22K 1206 R119 1A322 RES SM W4 1% 22K 1206 R120 1A322 RES SM W4 1% 22K 1206 R121 1A322 RES SM W4 1% 22K 1206 R122 1A822 RES SM W4 1% 2R2 1206 R123 1A822 RES SM W4 1% 2R2 1206 R124 1A822 RES SM W4 1% 2R2 1206 R125 1A210 RES SM W4 1% 1K0 1206 R126 1A210 RES SM W4 1% 1K0 1206 R127 1A210 RES SM W4 1% 1K0 1206 R128 1A410 RES SM W4 1% 100K 1206 R129 1A410 RES SM W4 1% 100K 1206 R130 1A410 RES SM W4 1% 100K 1206 R131 1A510 RES SM W4 1% 1M0 1206 R132 1A510 RES SM W4 1% 1M0 1206 R133 1A047 RES SM W4 1% 47R 1206 R134 1A047 RES SM W4 1% 47R 1206
