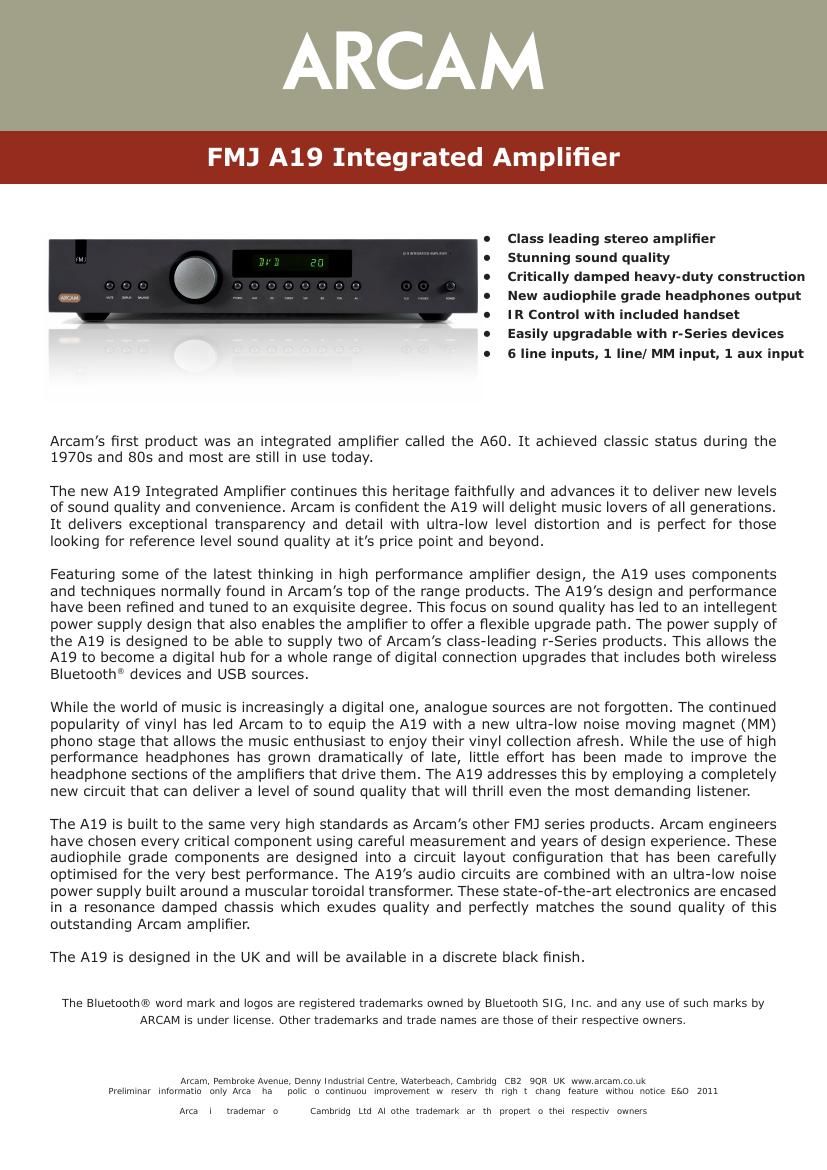

Arcam A19 Brochure

Page 1

Continuous power output (20Hz-20kHz at 0.5% THD), per channel - Both channels, 8Ω, 20Hz-20kHz: 50W - Single channel, 4Ω, at 1kHz: 90W - Harmonic distortion, 80% power, 8Ω at 1kHz: 0.003% Inputs Phono (MM) cartridge - Input sensitivity at 1kHz: 5mV - Input impedance: 47kΩ + 100pF - Frequency response (ref. RIAA curve): 20Hz-20kHz ± 1dB - Signal/noise ratio (Awtd) 50W, ref. 5mV input: 80dB - Overload margin, 50mV at 1kHz: 20dB Line and AV inputs - Nominal sensitivity: 1V - Input impedance: 10kΩ - Maximum input: 4.6Vrms - Frequency response: 20Hz-20kHz ± 0.2dB - Signal/noise ratio (Awtd) 50W, ref. 1V input: 105dB Preamplifier output - Nominal output level: 630mV - Output impedance: 230Ω Heaphones Output - Maximum output level into 600Ω: 4V - Output impedance: 1ohm - Load range: 16Ω-2kΩ Accessory power output - Using accessory power cable supplied, provides two 2.1mm DC connectors: 6V, 1A General - Mains voltage: 110–120V~ or 220–240V~ - Power consumption (maximum): 350W - Dimensions W x D x H (including feet): 432 x 275 x 85mm - Weight (net): 8.5kg - Weight (packed): 10.2kg - Supplied accessories: Mains lead, CR108 remote control, 2 x AAA batteries, Accessory power cable E&OE - All specification values are typical unless otherwise stated. FMJ A19 Amplifier Technical Specifications Arcam, Pembroke Avenue, Denny Industrial Centre, Waterbeach, Cambridg CB2 9QR UK www.arcam.co.uk Preliminar informatio only Arca ha polic o continuou improvement w reserv th righ t chang feature withou notice E&O 2011 Arca i trademar o Cambridg Ltd Al othe trademark ar th propert o thei respectiv owners 23425
