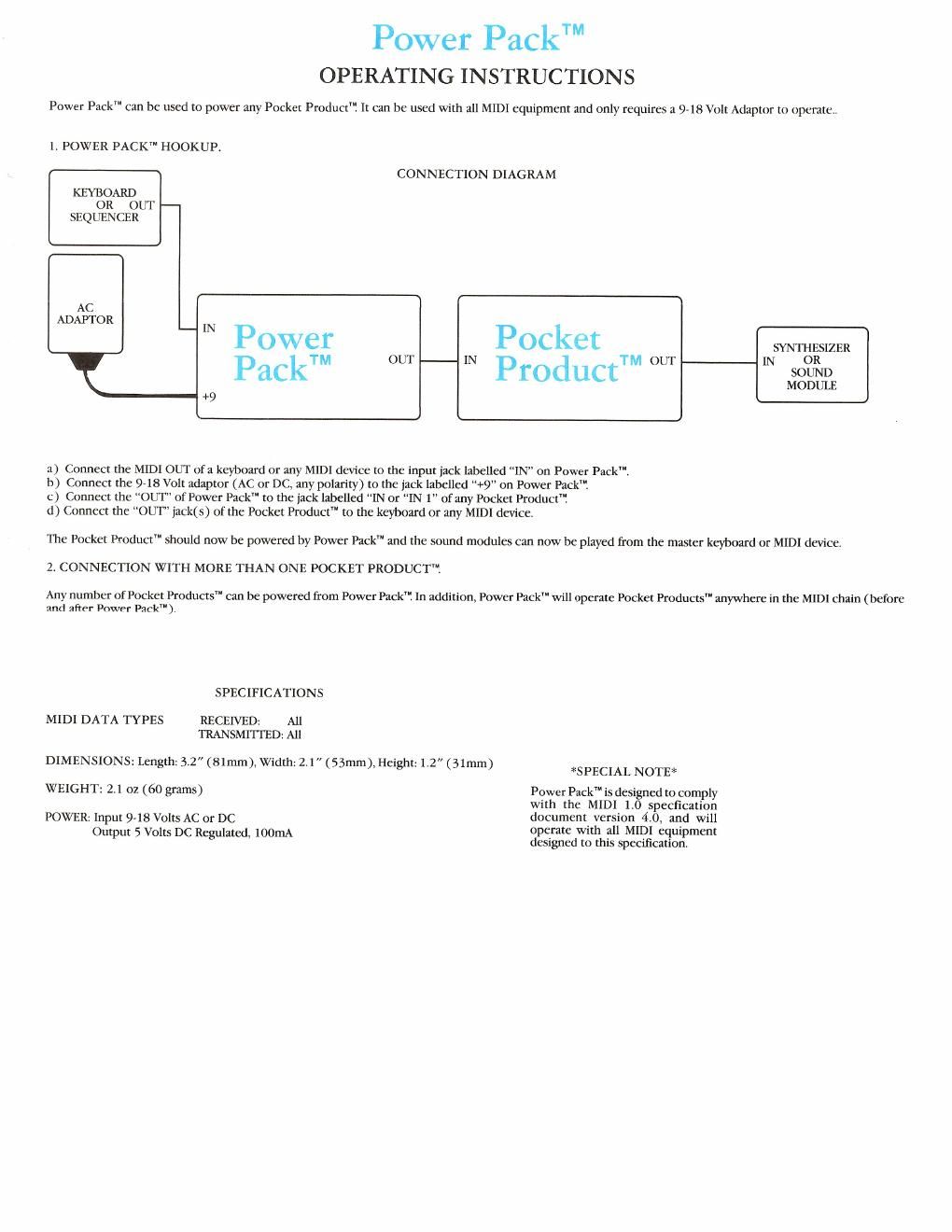

Power PackTM
OPERATING INSTRUCTIONS

Power Packm can be used to power any Pocket Product". It can be used with all MIDI equipment and only requires a 9-18 Volt Adaptor to operate.

1 POWER PACKw HOOKUPI
CONNECTION DIAGRAM

KEYBOARD
OR OUT
SEQUENCER

AC
ADAPTOR
IN POWE'E POCket TM our SYNTgIIiSIZl-IR
OUT IN IN
Pack Product 33313;;
+9

a) Connect the MIDI OUT of a keyboard or any MIDI device to the input jack labelled IN" on Power Pack'.

1)) Connect the 9-18 Volt adaptor (AC or DC, any polarity) to the jack labelled +9 on Power Pack.

C) Connect the OUT of Power Packm to the jack labelled IN or IN 1 of any Pocket Product".

d) Connect the OUT" jack(s) of the Pocket Productw to the keyboard or any MIDI device.

The Pocket Product should now be powered by Power Pack and the sound modules can now be played from the master keyboard or MIDI device
2 CONNECTION WITH MORE THAN ONE POCKET PRODUCT.

Any number of Pocket Products can be powered from Power Pack"? In addition, Power Pack Will operate Pocket Products" anywhere in the MIDI chain (before
and after Power Pack),

SPECIFICATIONS

MIDI DATA TYPES RECEIVED: All
TRANSMI'ITED: All

DIMENSIONS: Length: 32" (81mm), Width: 2.1" (53mm), Height: 1.2" (51mm)

*SPECIAL NOTE*
WEIGHT: 2.1 oz (60 grams) Power Pack is designed to comply
with the MIDI 1.0 specfication
pow/ER: Input 9-18 Volts AC or DC document. version 4.0, and will
Output 5 Volts DC Regulated, 100m 0W6 W a MIDI Cqumcm

designed to this specification.
