POWER PACKTM

iS a trademark of

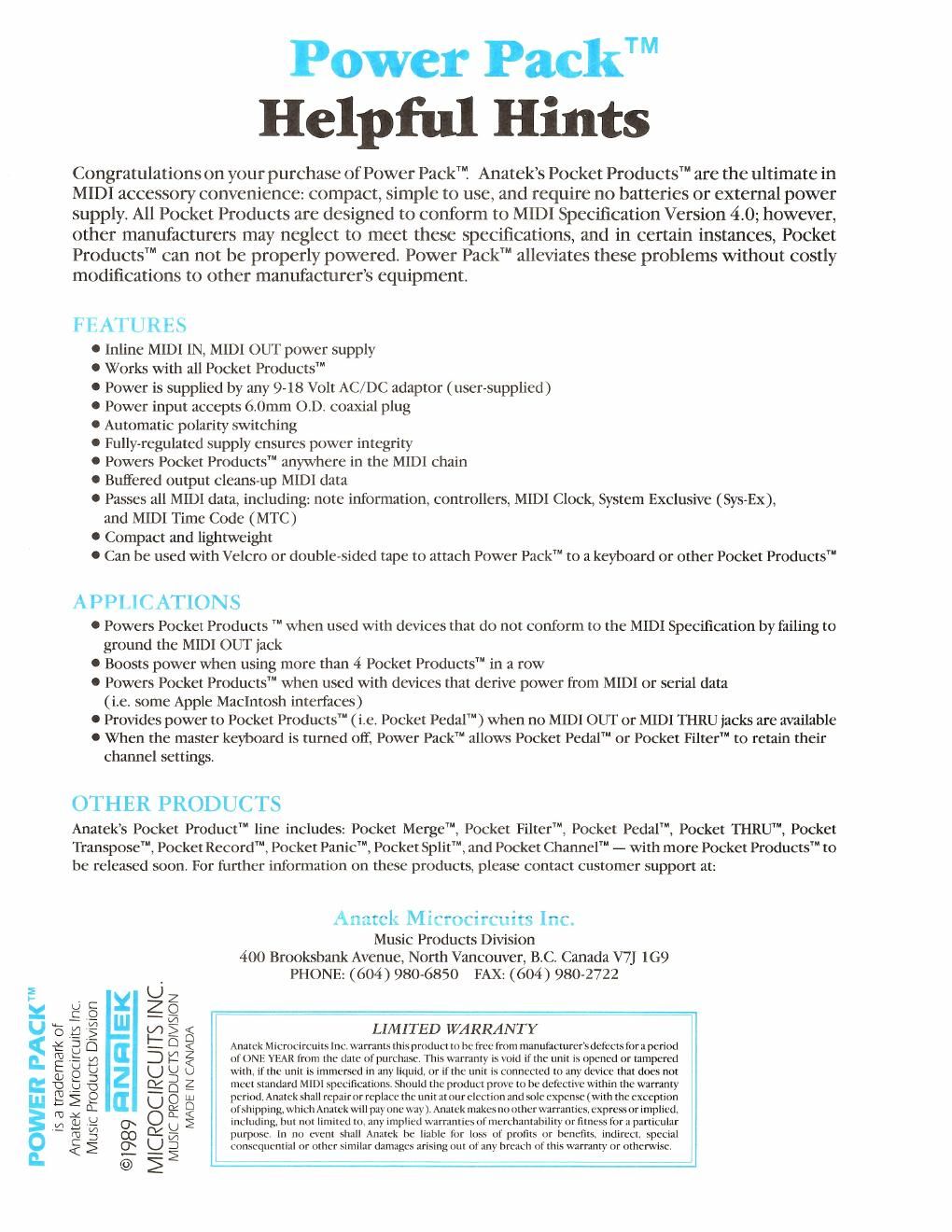

Power PackTM
Helpful Hints

Congratulations on your purchase of Power Pack"! Anateks Pocket ProductsM are the ultimate in
MIDI accessory convenience: compact, simple to use, and require no batteries or external power
supply. All Pocket Products are designed to conform to MIDI Specification Version 4.0; however,
other manufacturers may neglect to meet these specifications, and in certain instances, Pocket
ProductsTM can not be properly powered. Power PackTM alleviates these problems without costly
modifications to other manufacturers equipment.

F F. AT U R E S

0 lnline MIDI IN, MlDl OUT power supply

0 Works with all Pocket Productsl

0 Power is supplied by any 9-18 Volt AC/ DC adaptor (user-supplied)

0 Power input accepts 6.0mm OD. coaxial plug

0 Automatic polarity switching

O Fully-regulated supply ensures power integrity

0 Powers Pocket Productsm anywhere in the MIDI chain

0 Buffered output cleans-up MIDI data

0 Passes all MIDI data, including: note information, controllers, MIDI Clock, System Exclusive (Sys-Ex),
and MIDI Time Code (MTC)

0 Compact and lightweight

0 Can be used with Velcro or double-sided tape to attach Power Pack to a keyboard or other Pocket Products

A PPLIC ATIONS

0 Powers Pocket Products " when used with devices that do not conform to the MIDI Specification by failing to
ground the MIDI OUT jack

0 Boosts power when using more than 4 Pocket ProductsWI in a row

0 Powers Pocket Products when used with devices that derive power from MIDI or serial data
(ie. some Apple MacIntosh interfaces)

0 Provides power to Pocket ProductsTM ( ie. Pocket Pedal) when no MIDI OUT or MIDI THRU jacks are available

0 When the master keyboard is turned off, Power PackI allows Pocket Pedal or Pocket Filter to retain their
channel settings.

OTHER PRODUCTS

Anateks Pocket ProductTM line includes: Pocket Merge, Pocket Filter, Pocket Pedal, Pocket THRU", Pocket
Transpose', Pocket Recor "", Pocket Panic, Pocket Split, and Pocket Channelm - with more Pocket Products to
be released soon. For further information on these products, please contact customer support at:

Anatck M icrocircuits Inc.
Music Products Division
400 Broolesbank Avenue, North Vancouver, BC Canada V7] 1G9
PHONE: (604) 980-6850 FAX: (604) 980-2722

u 2 ¥ 2 E

S .9 I - r7, 7'*-

g g .2 E E LIMITED WARRANTY

3 5 a - D < AnatekMit-rocircuitsinc.warrantsihisproducttobet'reefrom mamdacturer'sdefectsforaperiod

.: fl 3 E E ofONl-J YEAR from mt dale ofpurchase. This warranty is void iflhe unit is opened or tampered

U u U u with. if the unit is immersed in an ii uid. or if the unil is connected [0 an i device that does not

0 3 3 i q )

U U M D Z met-i standard MII)! specifications, Should the product prove to be defective within the warranty

'_ O - Lu criod Anatekshni] re airorrcplacctheunitatoureicctionandsoleexpense(Withtheexception

E n U O D P p

x l. E < oishipping which Anuttkwillpay one nay) Anuttkmak snootheruarranties (xprcssurim 'cd

9 2 O\ O U E including but not Iimiledlo any implied arruntic' mcrchflnlzlbilih or fitnesf

rn § 00 M a purpose in no titnt shall Aniltck he innit for loss or profits or benefits. indirect .sptuai

E: g 0\ L) g consequential or other similardamagcs arising out ofdny breach ofthis warranty or otherwise.
