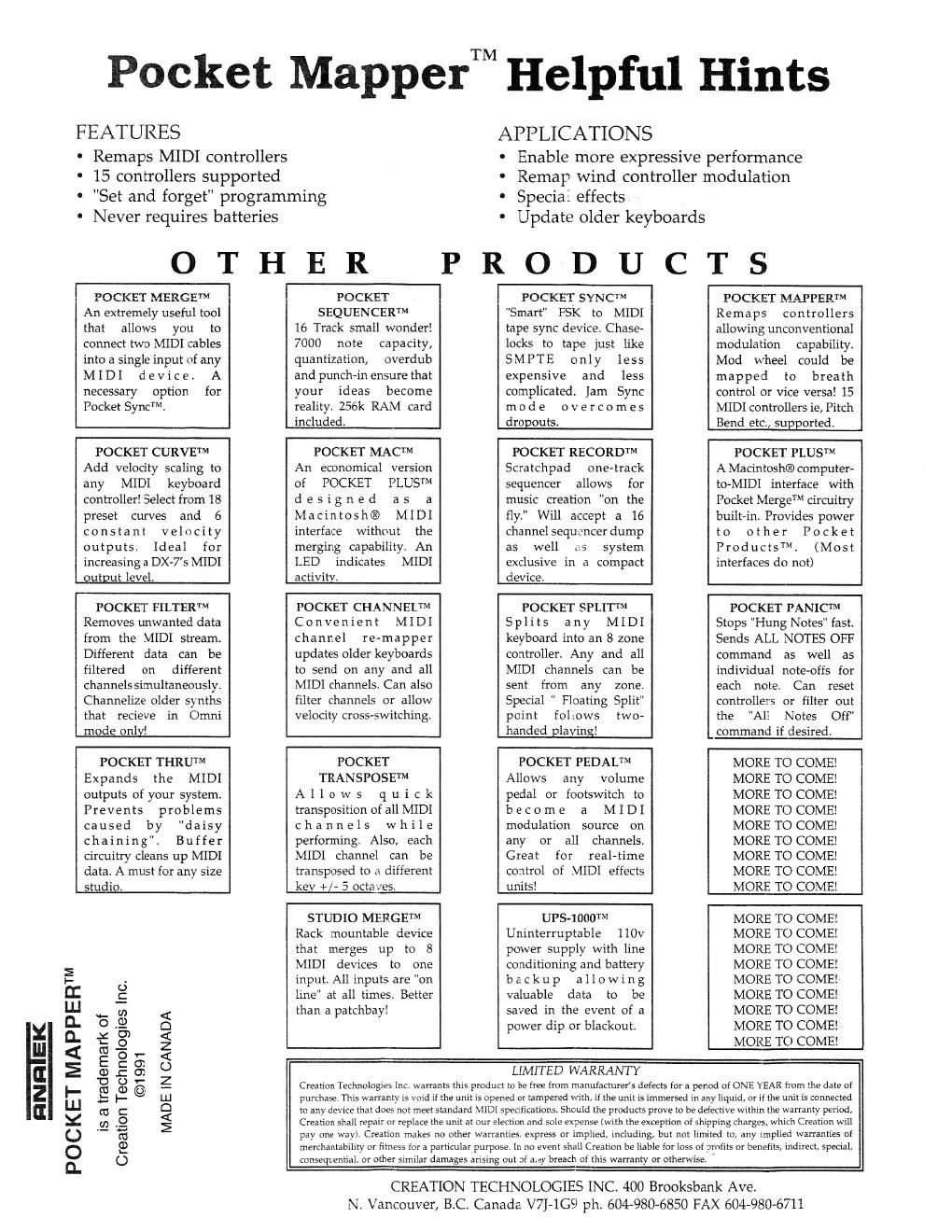

Page 1
RNR EK
POCKET MAPPERTM
Pocket Mapperm Helpful Hints
FEATURES
0 Remaps MIDI controllers
' 15 controllers supported
Set and forget programming
- Never requires batteries
OTHER
APPLICATIONS
- Enable more expressive performance
0 Remap wind controller modulation
' Special effects
- Update older keyboards
PRODUCTS
POCKET IVKERGEm
An extremely useful tool
that allows you to
connect two MIDI cables
into a single input of any
MIDI device. A
necessary option for
Pocket SyncTM.
SEQUENCERTM
16 Track small wonder!
7000 note capacity,
quantization, overdub
and punch-in ensure that
your ideas become
reality. 256k RAM card
included.
POCKET SYNCTM
Smart FSK to MIDI
tape sync device. Chase-
locks to tape just like
SMPTE only less
expensive and less
complicated. lam Sync
mode overcomes
dropouts!
POCKET MAPPERTM
Remaps controllers
allowing unconventional
modulation capability.
Mod wheel could be
mapped to breath
control or vice versa! 15
MIDI controllers ie, Pitch
Bend etc., supported.
POCKET CURVEm
Add velocity scaling to
any MIDI keyboard
controller! Select from 18
preset curves and 6
constant velocity
outputs. Ideal for
increasing a DX-7's MIDI
output level.
POCKET MACTM
An economical version
of POCKET PLUSTM
d e s i g n e d a s a
Macintosh® MIDI
interface without the
merging capability. An
LED indicates MIDI
activity.
POCKET RECORDTM
Scratchpad onertrack
sequencer allows for
music creation "on the
fly." Will accept a 16
channel sequencer dump
as well as system
exclusive in a compact
device.
POCKET PLUS!
A Macintosh® computer-
to-MIDI interface with
Pocket MergeTM circuitry
builtrin. Provides power
to other Pocket
Products. (Most
interfaces do not)
POCKET FILTERTM
Removes unwanted data
from the MIDI stream.
Different data can be
filtered on different
channelssimultaneously.
Channelize older synths
that recieve in Omni
mode onlv!
POCKET CHANNEL!
Convenient MIDI
channel re-mapper
updates older keyboards
to send on any and all
MIDI channels. Can also
filter channels or allow
velocity cross-switching.
POCKET SPLIT!
Splits any MIDI
keyboard into an 5 zone
controller. Any and all
MIDI channels can be
sent from any zone.
Special Floating Split"
point follows twee
handed plavlnz!
POCKET PANICTM
Stops "Hung Notes" fast.
Sends ALL NOTES OFF
command as well as
individual note-offs for
each note. Can reset
controllers or filter out
the "All Notes Off"
_ command if desired.
POCKET THRUm
Expands the MIDI
outputs of your system.
Prevents problems
caused by "daisy
chaining". Buffer
circuitry cleans up MIDI
data. A must for any size
studior
POCKET
TRANSI"OSETM
A l l o w s q u i c k
transposition of all MIDI
channels while
performing. Also, each
MIDI channel can be
transposed to a different
key + , 3 octaves.
POCKET PEDALTM
Allows any volume
pedal or footswitch to
become a MIDI
modulation source on
any or all channels,
Great for realvtime
control of MIDI effects
units!
MORE TO COME!
MORE TO COME!
MORE TO COME!
MORE TO COME!
MORE TO COME!
MORE TO COME!
MORE TO COME!
MORE TO COME!
MORE TO COME!
0'
E
(I)
59 S
xv) <
52 2
E85 5
03:0)
CUP 2
ewo -
«i- Lu
(6: D
O <
52% 2
O.)
._
O
STUDIO MERGE!
Rack mountable device
that merges up to 8
MIDI devices to one
input. All inputs are on
line" at all times. Better
than a patchbay!
UPS-1000TM
Uninterruptable 110v
power supply with line
conditioning and battery
backup allowing
valuable data to be
saved in the event of a
power dip or blackout.
MORE TO COME!
MORE TO COME!
MORE TO COME!
MORE TO COME!
MORE TO COME!
MORE TO COME!
MORE TO COME!
MORE TO COME!-
MORE TO COME!
LIMITED WARRANTY
Creation Technologies Inc warrants this product to be free irom manufacturers defects for a period of ONE YEAR from the date of
purchase. This warranty is void ii the unit is opened or tampered with, if the unit is immersed in any liquid, or if the uni is connected
to any device that does not treat standard yllol specifications. Should the products prove to be defective within the warranty period,
Creation shall repair or replace the unit at our election and sole expense (with the exception of Shipping charges, which Creation will
pay one Way). Creation makes no other warranties, express or implied, including, but not limited to, any implied warranties of
merchantability or fitness for a particular purpose. In no event shnll Creation be liable iur loss 0t profits or benefits, indirect, special,
consequential, or other similar damages arising out of Hwy breach of this warranty or otherwise,
CREATION TECHNOLOGIES INC! 400 Brooksbank Ave
N. Vancouver, B.C. Canada V7I-1G9 ph. 604-980-6850 FAX 604-980-6711
