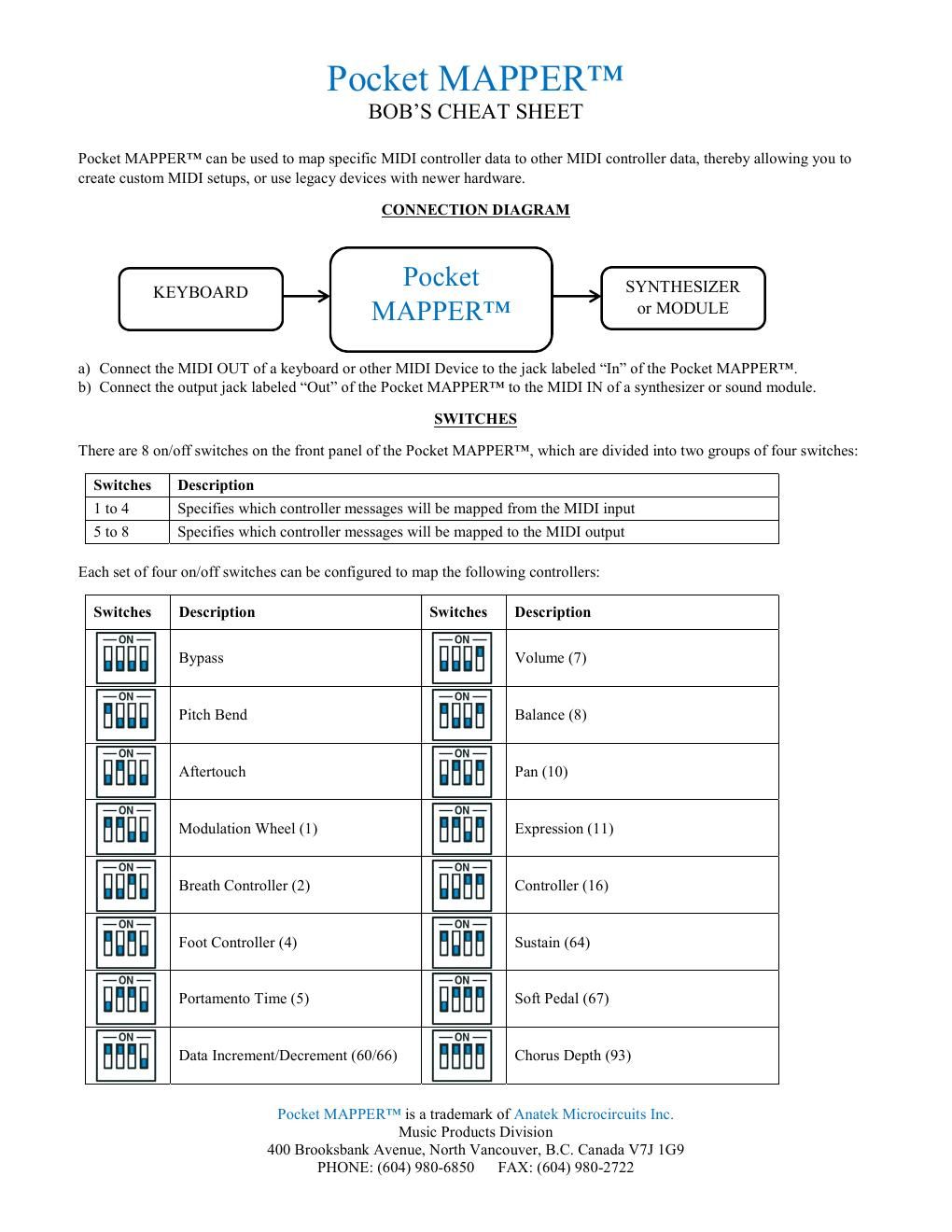

Pocket MAPPERTM

BOBS CHEAT SHEET

Pocket MAIPERTM can be used to map specific MIDI controller data to other MIDI controller data, thereby allowing you to
create custom MIDI setups, or use legacy devices with newer hardwarei

CONNECTION DIAGRAM

POCket SYNTHESIZER
MAPPERTM or MODULE

KEY BOARD

a) Connect the MIDI OUT of a keyboard or other MIDI Device to the jack labeled In of the Pocket MAPPERTM.
b) Connect the output jack labeled Out of the Pocket MAPPERTM to the MIDI IN of a synthesizer or sound module.

w

There are 8 (in/off switches on the front panel of the Pocket MAPPERTM, which are divided into two groups of four switches:

Switches Description
1 to 4 Specifies which controller messages will be mapped from the MIDI input
5 to 8 Specifies which controller messages will be mapped to the MIDI output
Each set of four on/off switches can be configured to map the following controllers:

Switches Description Switches Description

-- ON - __ ON _

Hung Bypass uuun Volume (7)

-- ON - ._ ON _

flung Pitch Bend nuun Balance (8)

-- ON - ._ ON _.

HEW Aftertouch EMU Pan (10)

-- ON - __ ON _

flung Modulation Wheel (1) Hugh Expression (11)

-- ON - ._ ON _.

Hung Breath Controller (2) nunn Controller (16)

-- ON - ._ ON _.

nflnu Foot Controller (4) HM Sustain (64)

-- ON - _ ON _

unnu Portamento Time (5) unnn Sofi Pedal (67)

-- ON - ._ ON _.

flung Data Increment/Dccrement (60/66) unnn Chorus Depth (93)

Pocket MAPPERTM is a trademark of Anatek Microcircuits Inc.
Music Products Division
400 Brooksbank Avenue, North Vancouver, BC Canada V7.1 169
PHONE: (604) 980-6850 FAX: (604) 980-2722
