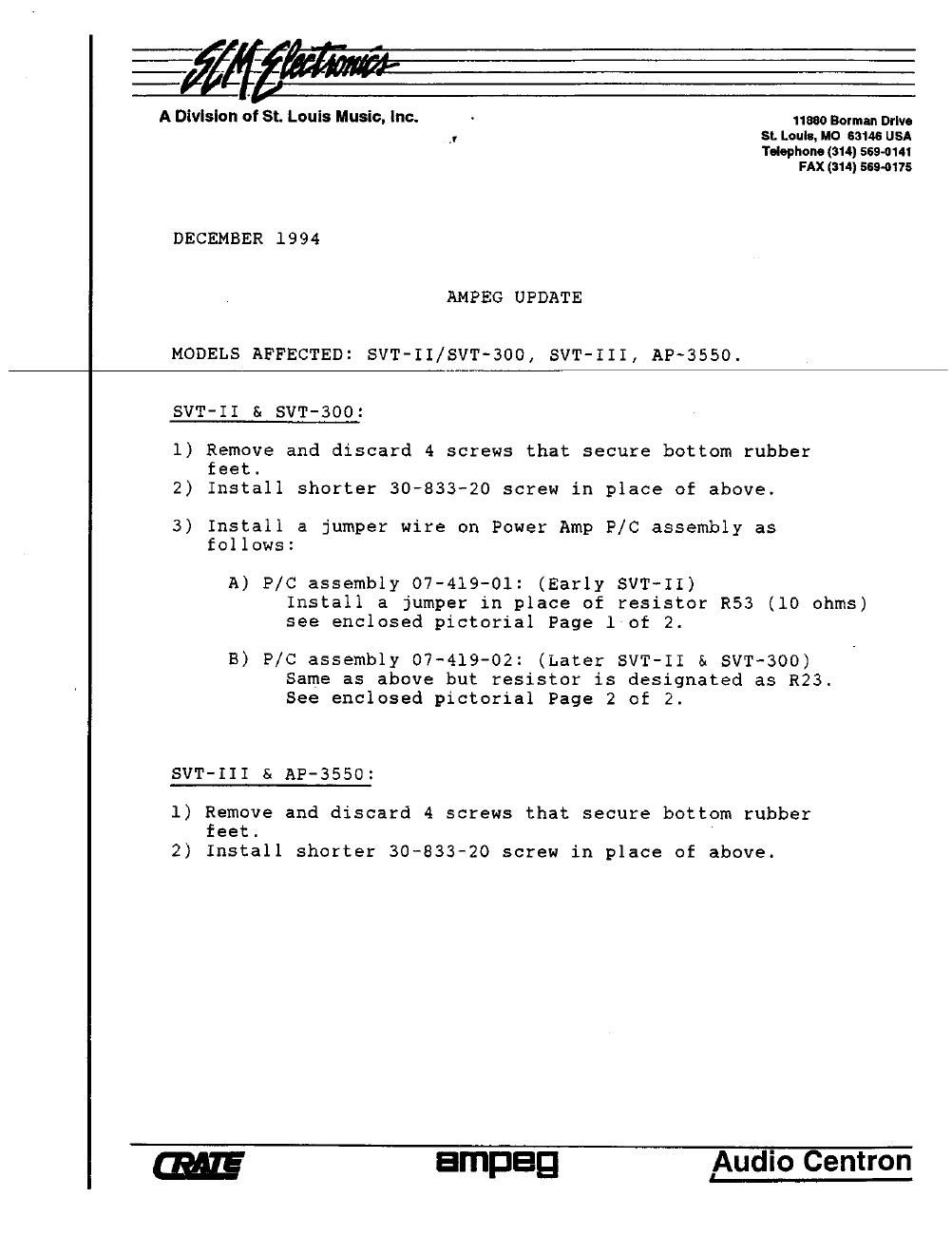

AMPEG UPDATE
MODELS AFFECTED: SVT-II/SVT-300, SVT-III, AP-3550.
SVT-II & SVT-300:
1) Remove and discard 4 screws that secure bottom rubber
feet.
2) Install shorter 30-833-20 screw in place of above.
3) Install a jumper wire on Power Amp P/C assembly as
follows:
A) P/C assembly 07-419-01: (Early SVT*II)
Install a jumper in place of resistor R53 (lo ohms)
see enclosed pictorial Page l-of 2.
B) P/C assembly 07-419-02: (Later SVT-II & SVT-SOO)
Same as above but resistor is designated as R23.
See enclosed pictorial Page 2 of 2.
SVT-II I & AP-3550:
1) Remove and discard 4 screws that secure bottom rubber
feet.
2) Install shorter 30-833-20 screw in place of above.
(ME ampeg Audio Centron
