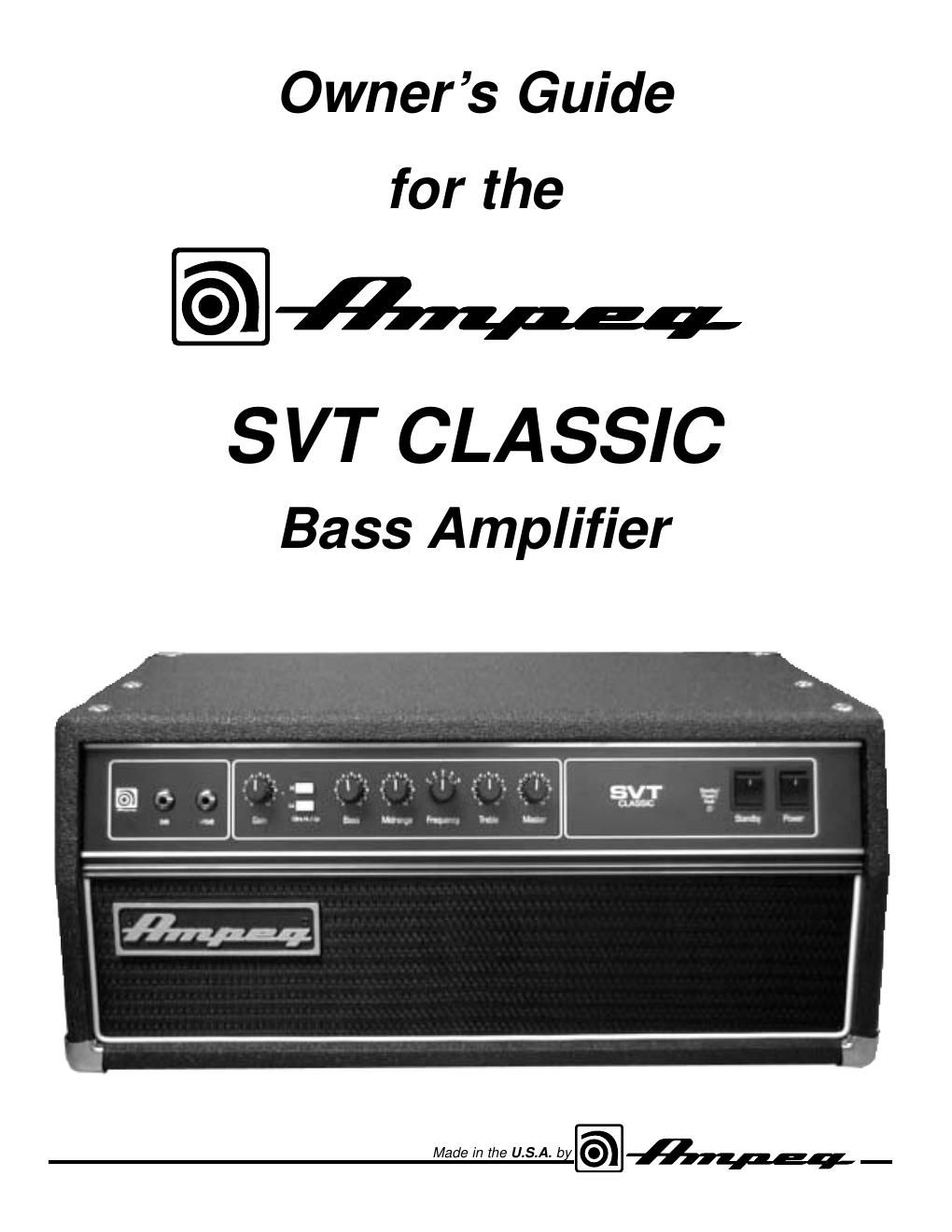

Ampeg svt cl
This is the 8 pages manual for ampeg svt cl.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from ampeg svt cl (Ocr-read)
Page 1
SVT CLASSIC 2 Table of Contents Important Safeguards and Precautions . . . . . . . . . . . . . .2 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . .3 The Front Panel Controls and Their Use . . . . . . . . . . . . .4 The Rear Panel Controls and Their Use . . . . . . . . . . . . .5 Some Suggested Settings . . . . . . . . . . . . . . . . . . . . . . . .6 Changing the Tubes . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . .back cover Technical Specifications . . . . . . . . . . . . . . . . . .back cove r Important Safeguards and Precautions All Ampeg products are designed for continuous safe operation, as long as common sense is used and steps are taken to help avoid certain prob- lems. Abiding by the following rules can help prevent damage to your amplifier, yourself and others. -The amplifier is equipped with a three-prong AC power cord. To reduce the risk of electrical shock, NEVERremove or otherwise attempt to defeat the ground pin of the power cord. -Connect the amplifier ONLYto a properly grounded AC outlet of the proper voltage for your amp. If no grounded outlet is available, use only an approved method of adapting to a two-prong AC source. -Avoid sudden temperature extremes, rain and moisture. Also, avoid sudden and intense impact. (If the unit has been subjected to any of the preceding abuses, have it looked at by an authorized service center.) -NEVERset the amplifier on a support that might give out under its weight. -Always keep the total impedance at or above the rated load. -Unplug the amplifier before cleaning it. NEVER spray liquid cleaners onto the unit. Wipe the unit with a slightly dampened, lint-free cloth to remove dirt and film. -Dont use the amplifier if it has sustained damage to the chassis, controls, or power cord. Refer the unit to an authorized service center for inspection. -Amplifiers capable of producing high volume levels are also capable of inflicting permanent hearing loss or damage, if the exposure to such levels is prolonged. Such damage is progressive and irreversible! Caution is advised and ear protection recommended when playing at extremely loud levels. The chart below shows the U.S. Government Occupational Safety and Health Administration (OSHA) regulations which were in effect at the time of this publication for permissible noise exposure, per 29CRF1910, Table G-16. According to OSHA, any exposure in excess of those listed above could result in some hearing loss. SOUND LEVEL dBA DURATION PER DAY SLOW RESPONSE IN HOURS 90 8 92 6 95 4 97 3 100 2SOUND LEVEL dBA DURATION PER DAY SLOW RESPONSE IN HOURS 102 1-1/2 105 1 110 1/2 115 1/4 or less CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. ATTENTIONRISQUE D'ELECTROCUTION NE PAS OUVRIR ATTENTION: POUR REDUIRE D'ELECTROCUTION NE PAS ENLEVER LE COUVERCLE. AUCUNE PIECE INTERNE N'EST REPRABLE PAR L'UTILISATEUR. POUR TOUTE REPARATION, S'ADRESSER A UN TECHNICIEN QUALIFIE. VORSICHTELEKTRISCHE SCHLAGGEFAHR NICHT OFFENEN VORSICHT: ZUR MINIMIERUNG ELEKTRISCHER SCHLAGGEFAHR NICHT DEN DECKEL ABENHMEN. INTERNE TEILE KONNEN NICHT VOM BENUTZER GEWARTET WERDEN. DIE WARTUNG IS QUALIFIZIERTEM WARTUNGSPERSONAL ZU UBERLASSEN. THIS EQUIPMENT HAS BEEN DESIGNED AND ENGINEERED TO PROVIDE SAFE AND RELIABLE OPERATION. IN ORDER TO PROLONG THE LIFE OF THE UNIT AND PREVENT ACCIDENTAL DAMAGES OR INJURY, PLEASE FOLLOW THESE PRECAUTIONARY GUIDELINES: CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT OPEN CHASSIS; DO NOT DEFEAT OR REMOVE THE GROUND PIN OF THE POWER CORD; CONNECT ONLY TO A PROPERLY GROUNDED AC POWER OUTLET. WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. CAUTION: NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION: OUR AMPLIFIERS ARE CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH SOUND PRESSURE LEVELS CAN CAUSE PERMANENT HEARING IMPAIRMENT OR LOSS. USER CAUTION IS ADVISED AND EAR PROTECTION IS REC- OMMENDED IF UNIT IS OPERATED AT HIGH VOLUME. "IT IS NECESSARY FOR THE USER TO REFER TO THE INSTRUCTION MANUAL" "REFERREZ-VOUS AU MANUAL D'UTILISATION" "UNBEDINGT IN DER BEDIENUNGSANLEITUNG NACHSCHLAGEN" EXPLANATION OF GRAPHICAL SYMBOLS: "DANGEROUS VOLTAGE" "DANGER HAUTE TENSION" "GEFAHLICHE SPANNUNG"= =
Page 2
SVT CLASSIC 3 An Introduction to your new Ampeg SVT CLASSIC Bass Amplifier The harmonically rich sound and legendary performance of the classic AMPEG SVT are redefined in the SVT CLASSIC. This dynamically powerful bass amp delivers a thunderous 300 watts of unsurpassed quality, reliability and tonal flexibility. It also provides the classic vibrance of tubes as well as contemporary features. The features and controls of your SVT CLASSIC are covered in detail within the pages of this owners guide. We recommend going over them before you use the amplifier. Features I n the world of high performance bass amps, SVT amplifiers stand alone. In true Ampeg tradition, the SVT CLASSIC offers you more power, performance and flexibility than any other amplifier in its class. Listed below are some of the outstanding features of your new amp: features which set it apart from the competition! Additional information on these features can be found on the pages indicated. --15dB INPUT:This feature is perfect for active basses (page 4) -ULTRA LO AND ULTRA HI SWITCHES:These enable you to tailor your sound in many different ways at the touch of a button (page 4) -5-POSITION FREQUENCY SELECTOR:Take your pick from the five center frequency points to get just the right midrange voice (page 4) -BIAS ADJUSTMENT CONTROLS:These controls allow you to adjust the tube bias for proper operation (pages 5 & 7) -SLAVE OUT:Use for powering another amp from the SVT CLASSICs preamp (page 5) System Block Diagram BIAS ADJUST SPEAKER OUTS 0dB INPUT GAIN ULTRA LO MID FREQUENCY MASTERBUFFERPREAMP OUT PWR AMP INPUTSLAVE OUTBAL OUT 1/4" JACK 1/4" JACK POWER AMP STANDBY/ POWER/ FAULTBIAS INDICATORS ULTRA HI -15dB INPUT BASS TREBLE 4 OHMS 2 OHMS IMPEDANCE POWER AMP PROTECTION SPEAKON ® JACK 1+ 2+ 1- 2-
