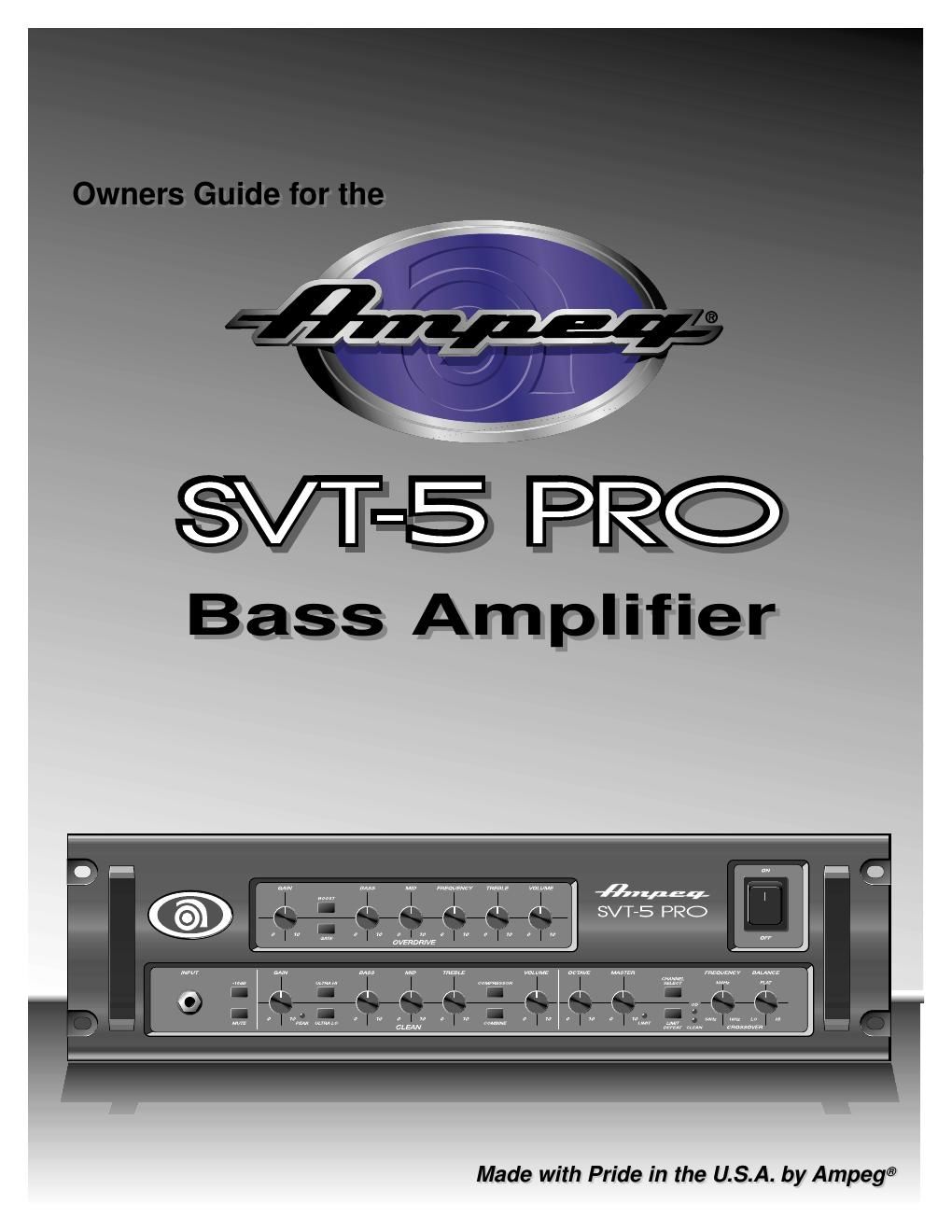

Ampeg svt 5pro
This is the 12 pages manual for ampeg svt 5pro.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from ampeg svt 5pro (Ocr-read)
Page 1
2 TABLE OF CONTENTS Introductions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Important Safeguards and Precautions . . . . . . . . . . . . . . .3 The Front Panel Controls and Their Use . . . . . . . . . . . . . .4 The Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Connections: Mono Bridged . . . . . . . . . . . . . . . . . . . . . .6 Dual Mono . . . . . . . . . . . . . . . . . . . . . . . . .6 Biamp - Full Range and Lows . . . . . . . . . .6 Biamp - Highs and Lows . . . . . . . . . . . . . .7 Biamp With a Second Amplifier . . . . . . . . .7 Some Suggested Settings . . . . . . . . . . . . . . . . . . . . . . . . .8 Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . .10 Technical Specifications . . . . . . . . . . . . . . . . . . .back cover SVT-5 PRO Bass Amplifier IMPORTANT SAFETY INSTRUCTIONS -READ, FOLLOW, HEED, AND KEEP ALL INSTRUCTIONS AND WARNINGS.-DO NOT OPERATE NEAR ANY HEAT SOURCE AND DO NOT BLOCK ANY VENTILATION OPENINGS ON THIS APPARATUS. FOR PROPER OPERATION, THIS UNIT REQUIRES 3 (75CM) OF WELL VENTILATED SPACE AROUND HEATSINKS AND OTHER AIR FLOW PROVISIONS IN THE CABINET. -DO NOT USE THIS APPARATUS NEAR SPLASHING, FALLING, SPRAYING, OR STANDING LIQUIDS.-CLEAN ONLY WITH LINT-FREE DAMP CLOTH AND DO NOT USE CLEANING AGENTS.-ONLY CONNECT POWER CORD TO A POLARIZED, SAFETY GROUNDED OUTLET WIRED TO CURRENT ELECTRICAL CODES AND COMPATIBLE WITH VOLTAGE, POWER, AND FREQUENCY REQUIREMENTS STATED ON THE REAR PANEL OF THE APPARATUS. -PROTECT THE POWER CORD FROM DAMAGE DUE TO BEING WALKED ON, PINCHED, OR STRAINED.-UNPLUG THE APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME.-ONLY USE ATTACHMENTS, ACCESSORIES, STANDS, OR BRACKETS SPECIFIED BY THE MANUFACTURER FOR SAFE OPERATION AND TO AVOID INJURY.-THIS APPARATUS DOES NOT OPERATE NORMALLY AND REQUIRES SERVICE WITH ANY PHYSICAL DAMAGE FROM IMPACT OR ANY EXPOSURE TO MOISTURE.-SERVICE MUST BE PERFORMED BY QUALIFIED PERSONNEL.-OUR AMPLIFIERS ARE CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH SOUND PRESSURE LEVELS CAN CAUSE PERMA- NENT HEARING IMPAIRMENT OR LOSS. USER CAUTION IS ADVISED AND EAR PROTECTION IS RECOMMENDED IF UNIT IS OPERATED AT HIGH VOLUME. CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. PRECAUCIONRIESGO DE CORRIENTAZO NO ABRA PRECAUCION: PARA REDUCIR EL RIESGO DE INCENDIOS O DESCARGAS ELECTRICAS, NO PER- MITA QUE ESTE APARATO QUEDE EXPUESTO A LA LLUVIA O LA HUMEDAD. PARA DISMINUOIR EL RIESGO DE CORRIENTAZO. NO ABRA LA CUBIERTA. NO HAY PIEZAS ADENTRO QUE EL USARIO PUEDO REPARAR DEJE TODO MANTENIMIENTO A LOS TECHNICOS CALIFICADOS. ATTENTIONRISQUE D'ELECTROCUTION NE PAS OUVRIR ATTENTION: PROTÉGEZ CET APPAREIL DE LA PLUIE ET DE L'HUMIDITÉ AFIN D'ÉVITER TOUT RISQUE D'INCENDIE OU D'ÉLECTROCUTION. POUR REDUIRE D'ELECTROCUTION NE PAS ENLEVER LE COUVERCLE. AUCUNE PIECE INTERNE N'EST REPRABLE PAR L'UTILISATEUR. POUR TOUTE REPARATION, S'ADRESSER A UN TECHNICIEN QUALIFIE. "IT IS NECESSARY FOR THE USER TO REFER TO THE INSTRUCTION MANUAL" ES NECESARIO QUE EL USUARIO SE REFIERA AL MANUAL DE INSTRUCCIONES. "REFERREZ-VOUS AU MANUAL D'UTILISATION" EXPLANATION OF GRAPHICAL SYMBOLS: EXPLICACION DE SIMBOLOS GRAFICOS: EXPLICATION DES SYMBÔLES GRAPHIQUES: "DANGEROUS VOLTAGE" VOLTAJE PELIGROSO "DANGER HAUTE TENSION"== Declaration Of Conformity #32, Effective 01-01-2001 Manufacturers Name:SLM Electronics Production Facility:11880 Borman Drive, St. Louis, MO 63146, USA Production Facility:700 Hwy 202 W, Yellville, AR 72687, USA Shipping Facility:1400 Ferguson Ave., St. Louis, MO 63133, USA Office Facility:1400 Ferguson Ave., St. Louis, MO 63133, USA Product Type:Audio Amplifier Complies with Standards: LVD:92/31/EEC, 93/68/EEC, & 73/23/EWG Safety:EN60065 EMC:EN55013, EN55020, EN55022, EN61000-3-2, & EN61000-3-3 Supplementary information provided by your local Sales & Services Office or: SLM Electronics - R & D Engineering 1901 Congressional Drive, St Louis, MO 63146, USA Tel.: 314-569-0141, Fax: 314-569-0175
Page 2
3 An Introduction to your new Ampeg SVT-5 PRO Bass Amplifier Thank you for making one of the best choices you will ever make for your musical career – choosing one of the finest bass amps available, the Ampeg SVT-5 PRO. This versatile and powerful bass amplifier delivers up to 1350 watts of unsurpassed musical power, and offers several outstanding features. All of the features and controls of your SVT-5 PRO are covered in detail in this owners guide. We recommend reading about them prior to using the amplifier. Features In the world of high performance bass amps, Ampeg amplifiers stand alone. In true Ampeg tradition, the SVT-5 PRO offers more power, performance and flexibility than any other bass amplifier in its class. The outstanding features which set your new amplifier apart from the competition are listed below. - 15dB PAD SWITCH: Use this to accommodate the input signal from an instrument with active electron- ics or very hot pickups - MUTE SWITCH: Silences the output signal from the amplifier, allowing you to tune in private - TWO SEPARATE CHANNELS:Choose between the clean channel, the overdrive channel, or both com- bined, for the widest variety of sounds possible - COMPRESSOR SWITCH: Controls the dynamic range of the preamp, to even out your volume level - ULTRA LOW, ULTRA HIGH AND GAIN BOOST SWITCHES: For additional tonal flexibility – allows even greater sound control - VARIABLE MIDRANGE SELECTOR:Custom select the center frequency point for the midrange control for just the right voice - GATE SWITCH:Keeps things quiet in between riffs - FOOTSWITCH JACKS:Two jacks allow footswitch control of channel selection/channel combine and octave/mute - TWO EFFECTS LOOPS:Allow you to add effects to both channels - THREE PREAMP OUTPUTS:One for each channel, plus one for the octave signal - TRANSFORMER-BALANCED XLR OUTPUTS:For connection to a recording console, PA system or external amplifier - DUAL SEPARATE POWER AMPLIFIERS:For operation in true stereo or mono bridge mode for maxi- mum power - BIAMP CAPABILITIES:Low and high output jacks, crossover frequency control, and low to high bal- ance - TUNER OUT JACK:Allows use of an electronic tuner - active even when the amplifier is muted - POWER AMP IN JACKS:Allow you to connect a preamp signal to either or both internal amplifiers - CIRCUIT BREAKER PROTECTION:Provides protection against fault conditions - OCTAVE CIRCUIT:Adds a signal to the input signal that is one octave lower than the original - HEAVY DUTY SPEAKER JACKS: Speakon ®jacks are provided for both channels and for mono bridge SVT-5 PRO Bass Amplifier Important Safeguards and Precautions: All Ampeg products are designed for continuous safe operation, as long as common sense is used and steps are taken to help avoid cer- tain problems. Abiding by the following rules can help prevent damage to your amplifier, yourself and others. -The amplifier is equipped with a three-pronged AC power cord. To reduce the risk of electrical shock, NEVERremove or other- wise attempt to defeat the ground pin of the power cord. -Connect the amplifier ONLYto a properly grounded AC outlet of the proper voltage for your amp. -Avoid sudden temperature extremes, rain and moisture. Also, avoid sudden and intense impact. (If the unit has been subjected to any of the preceding abuses, have it looked at by an authorized service center.) -NEVERset the amplifier on a support that might give out under its weight. -Always keep the total speaker impedance at or above the rated load. -Unplug the amplifier before cleaning it. NEVER spray liquid cleaners onto the amplifier. Wipe it with a slightly dampened, lint- free cloth to remove dirt and film. -Do not use the amplifier if it has sustained damage to the chassis, controls, or power cord. Refer the unit to an authorized serv- ice center for inspection. -Amplifiers capable of producing high volume levels are also capable of inflicting permanent hearing loss or damage, if the expo- sure to such levels is prolonged. Such damage is progressive and irreversible! Consider using quality hearing protection devices. Speakon ®is a registered trademark of Neutrik USA
