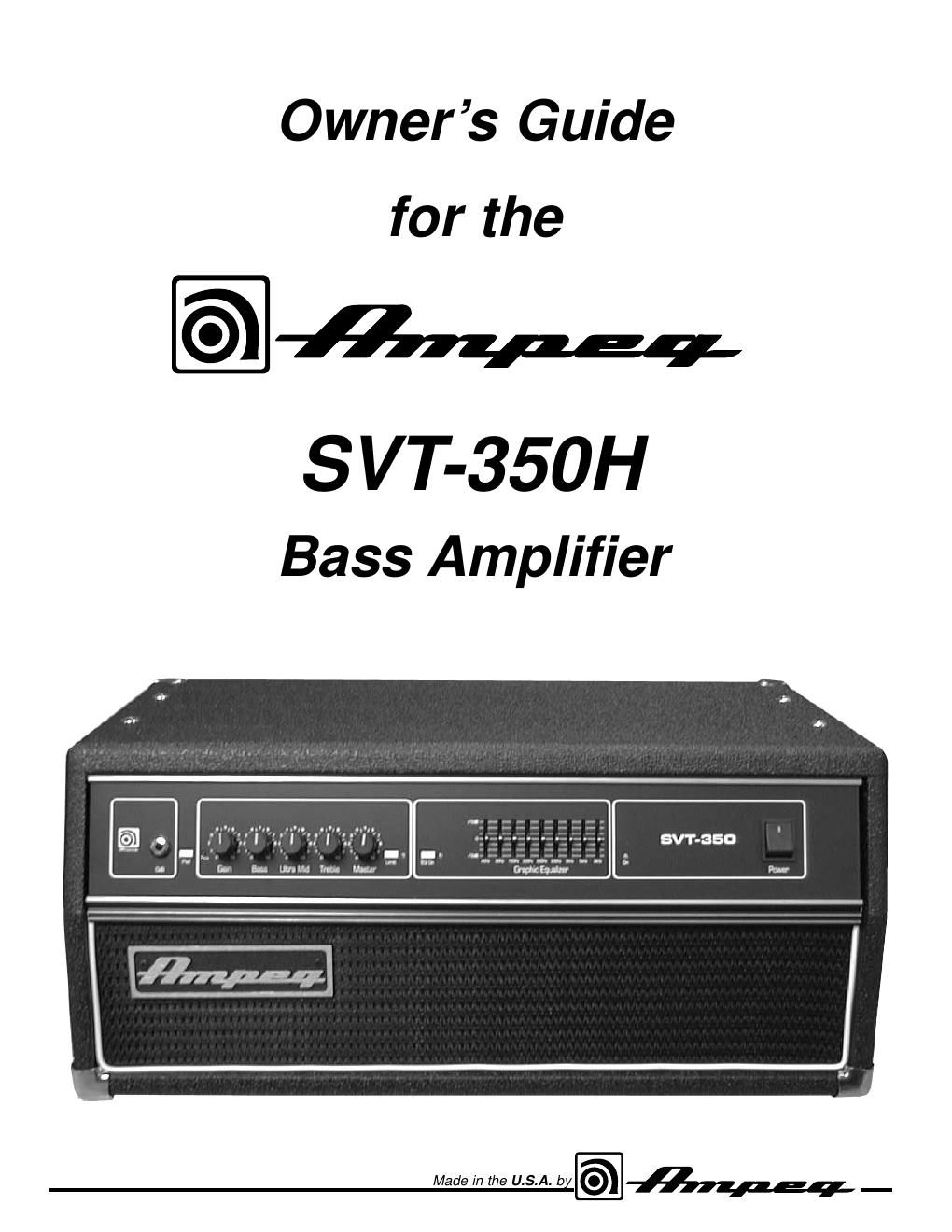

Ampeg svt 350h
This is the 8 pages manual for ampeg svt 350h.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from ampeg svt 350h (Ocr-read)
Page 1
2T ABLE OF CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Important Safeguards and Precautions . . . . . . . . . .3 The Front Panel Controls and Their Use . . . . . . . .4 The Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Some Suggested Settings . . . . . . . . . . . . . . . . . . .6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .7 System Block Diagram . . . . . . . . . . . . . . . . . . . . . .7 Technical Specifications . . . . . . . . . . . . .back cover Thank youfor making one of the best choices you will ever make for your musical career – choosing one of the finest bass amplifiers available, the Ampeg SVT-350H. Your new SVT-350H bass amplifier provides many outstanding features. Three hundred and fifty watts of pure bass energy, total tone control and rugged construction make this a true performers bass amp. In the world of high performance bass amps, Ampegs SVT amplifiers stand alone. In true Ampeg tradition, the SVT-350H offers you more power, performance and flexibility than any other bass amplifier in its class. The outstanding features of your new amplifier, features which set it apart from the competition, are listed below. -9-BAND GRAPHIC EQ:Use as a second channel for bass solos, or to shape your sound to your own exacting standards. -BALANCED LINE OUTPUT:XLR with independent level switch (20dB pad). Patch into house consoles, mixing boards, or external power amplifiers. - EFFECTS LOOP:For increased intensity and quieter operation of external effects. - POWER AMP IN and PREAMP OUT:Allows direct access into the power amp and a signal tap from the preamp section for even greater versatility. - CLASSIC SVT SOUND AND PERFORMANCE! An introduction To Your New Ampeg SVT-350H Bass Amplifier SVT-350H Features
Page 2
3 Important Safeguards and Precautions All Ampeg products are designed for continuous, safe operation, as long as common sense is used and steps are taken to help avoid certain problems. Abiding by the following rules can help prevent damage to your amplifier, yourself and others. -The amplifier is equipped with a three-pronged AC power cord. To reduce the risk of electrical shock, NEVERremove or otherwise attempt to defeat the ground pin of the power cord. -Connect the amplifier ONLYto a properly grounded AC outlet of the proper voltage for your amp. -Avoid sudden temperature extremes, rain and moisture. Also, avoid sudden and intense impact. (If the unit has been subjected to any of the preceding abuses, have it looked at by an authorized serv- ice center.) -NEVERset the amplifier on a support that might give out under its weight. -Always keep the total speaker impedance at or above the rated load. -Unplug the amplifier before cleaning it. NEVER spray liquid cleaners onto the amplifier. Wipe it with a slightly dampened, lint-free cloth to remove dirt and film. -Dont use the amplifier if it has sustained damage to the chassis, controls, or power cord. Refer the unit to an authorized service center for inspection. -Amplifiers capable of producing high volume levels are also capable of inflicting permanent hearing loss or damage, if the exposure to such levels is prolonged. Such damage is progressive and irre- versible! CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. ATTENTIONRISQUE D'ELECTROCUTION NE PAS OUVRIR ATTENTION: POUR REDUIRE D'ELECTROCUTION NE PAS ENLEVER LE COUVERCLE. AUCUNE PIECE INTERNE N'EST REPRABLE PAR L'UTILISATEUR. POUR TOUTE REPARATION, S'ADRESSER A UN TECHNICIEN QUALIFIE. VORSICHTELEKTRISCHE SCHLAGGEFAHR NICHT OFFENEN VORSICHT: ZUR MINIMIERUNG ELEKTRISCHER SCHLAGGEFAHR NICHT DEN DECKEL ABENHMEN. INTERNE TEILE KONNEN NICHT VOM BENUTZER GEWARTET WERDEN. DIE WARTUNG IS QUALIFIZIERTEM WARTUNGSPERSONAL ZU UBERLASSEN. THIS EQUIPMENT HAS BEEN DESIGNED AND ENGINEERED TO PROVIDE SAFE AND RELIABLE OPERATION. IN ORDER TO PROLONG THE LIFE OF THE UNITAND PREVENT ACCIDEN- TAL DAMAGES OR INJURY, PLEASE FOLLOW THESE PRECAUTIONARY GUIDELINES: WARNING:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT OPEN CHASSIS; DO NOT DEFEAT OR REMOVE THE GROUND PIN OF THE POWER CORD; CONNECT ONLY TO A PROP- ERLY GROUNDED AC POWER OUTLET. CAUTION:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. CAUTION:NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION:OUR AMPLIFIERS ARE CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH SOUND PRESSURE LEVELS CAN CAUSE PERMANENT HEARING IMPAIRMENT OR LOSS. USER CAUTION IS ADVISED AND EAR PROTECTION IS RECOMMENDED IF UNIT IS OPERATED AT HIGH VOLUME. The chart below shows the U.S. Government Occupational Safety and Health Administration (OSHA) regulations which were in effect at the time of this publication for permissible noise exposure, per 29CRF1910, Table G-16. According to OSHA, any exposure in excess of those listed above could result in some hearing loss. "IT IS NECESSARY FOR THE USER TO REFER TO THE INSTRUCTION MANUAL" "REFERREZ-VOUS AU MANUAL D'UTILISATION" "UNBEDINGT IN DER BEDIENUNGSANLEITUNG NACHSCHLAGEN" EXPLANATION OF GRAPHICAL SYMBOLS: "DANGEROUS VOLTAGE" "DANGER HAUTE TENSION" "GEFAHLICHE SPANNUNG"= = SOUND LEVEL dBA DURATION PER DAY SLOW RESPONSE IN HOURS 90 8 92 6 95 4 97 3 100 2SOUND LEVEL dBA DURATION PER DAY SLOW RESPONSE IN HOURS 102 1-1/2 105 1 110 1/2 115 1/4 or less SVT-350H
