Ampeg svt 18
This is the 4 pages manual for ampeg svt 18.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from ampeg svt 18 (Ocr-read)
Page 1

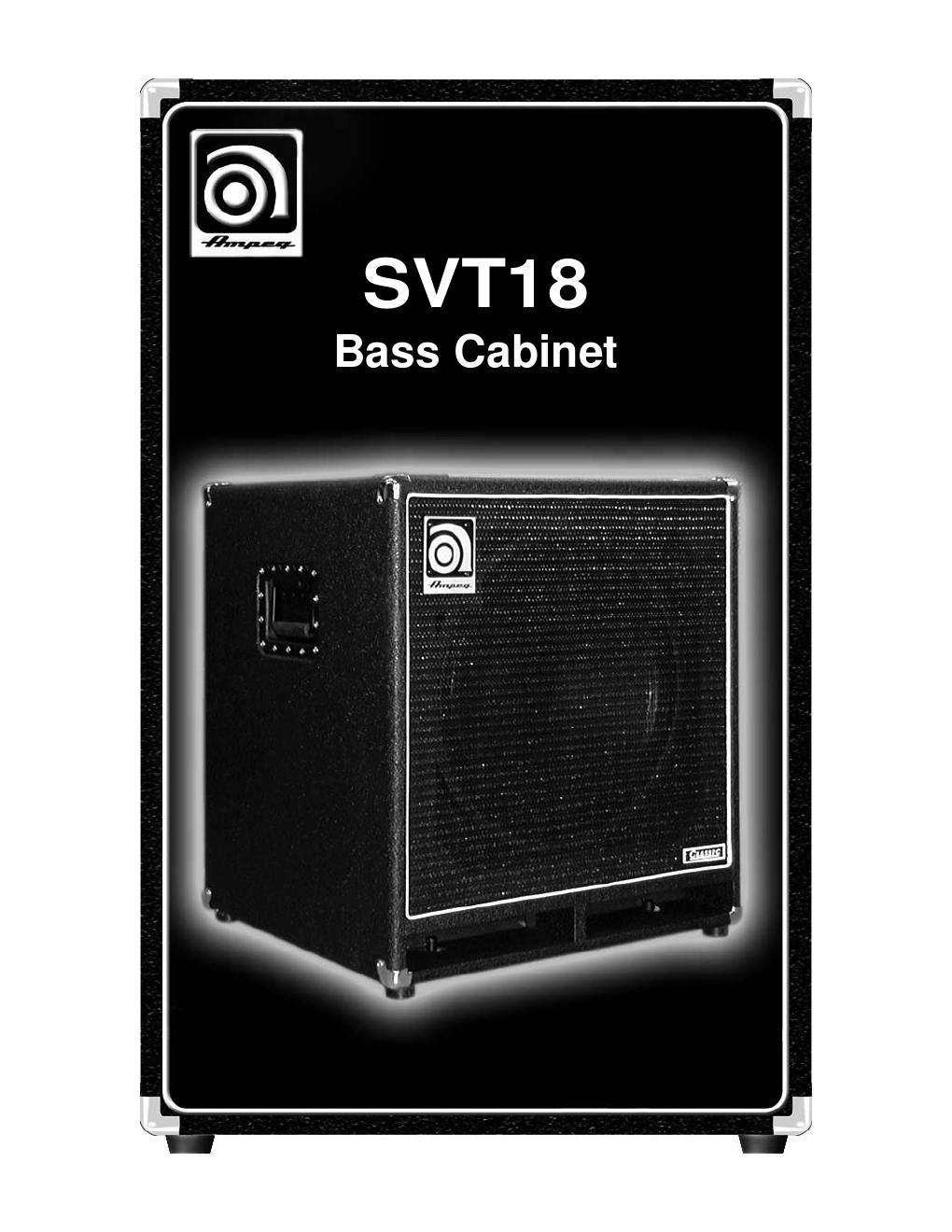

SVT18 Bass Cabinet Your Ampeg SVT18 Bass Cabinet is a high quality speaker cabinet suitable for all venue sizes. The SVT18 features a Custom Designed 18, cast frame, low frequency driver matched to a computer-tuned enclosure. The steel jackplate features both Speakon ®and 1/4 input/output jacks. The Speakon ®and 1/4 jacks are wired in parallel, allowing easy daisy chaining from one speaker to another. Each of the jacks may be used as an input or a through connection. Speakon ®connectors are recognized as the standard for professional installations, assuring a secure, permanent connection that wont corrode, vibrate loose or be easily tampered with. The 1/4 jacks are convenient. However, the Speakon ®jacks are recommended when using power amplifiers over 150 watts, for permanent installations, or for the first speaker among a number of daisy chained speakers. Speakon ®to 1/4 Wiring Diagram:
Page 2
SVT18 Bass Cabinet INPUTS1+ = POS (+) 1– = NEG (–) SPEAKONS ®: MODEL: SVT18POWER HANDLING: 500 WATTS RMS HANDLING: 1000 WATTS PEAK IMPEDANCE: 4 OHMS MADE IN THE U.S.A. BY SLM ELECTRONICS 1400 FERGUSON AVE. ST. LOUIS, MO 63133 47-327-18 (Place Serial Number label here) 7 43565 15531 9 SVT18 (21) SERIAL# BMCDN20083Line: Freq: Pwr: 1 1 2 2 1: 1/4 Input / Output Jacks 2: Speakon ®Input / Output Jacks The SVT18 Jackplate: Suggested Hookup Diagrams: 4 OHMS POWER AMP 2 OHMS POWER AMP
