Ampeg pbc 2112 manual en
This is the 8 pages manual for ampeg pbc 2112 manual en.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from ampeg pbc 2112 manual en (Ocr-read)

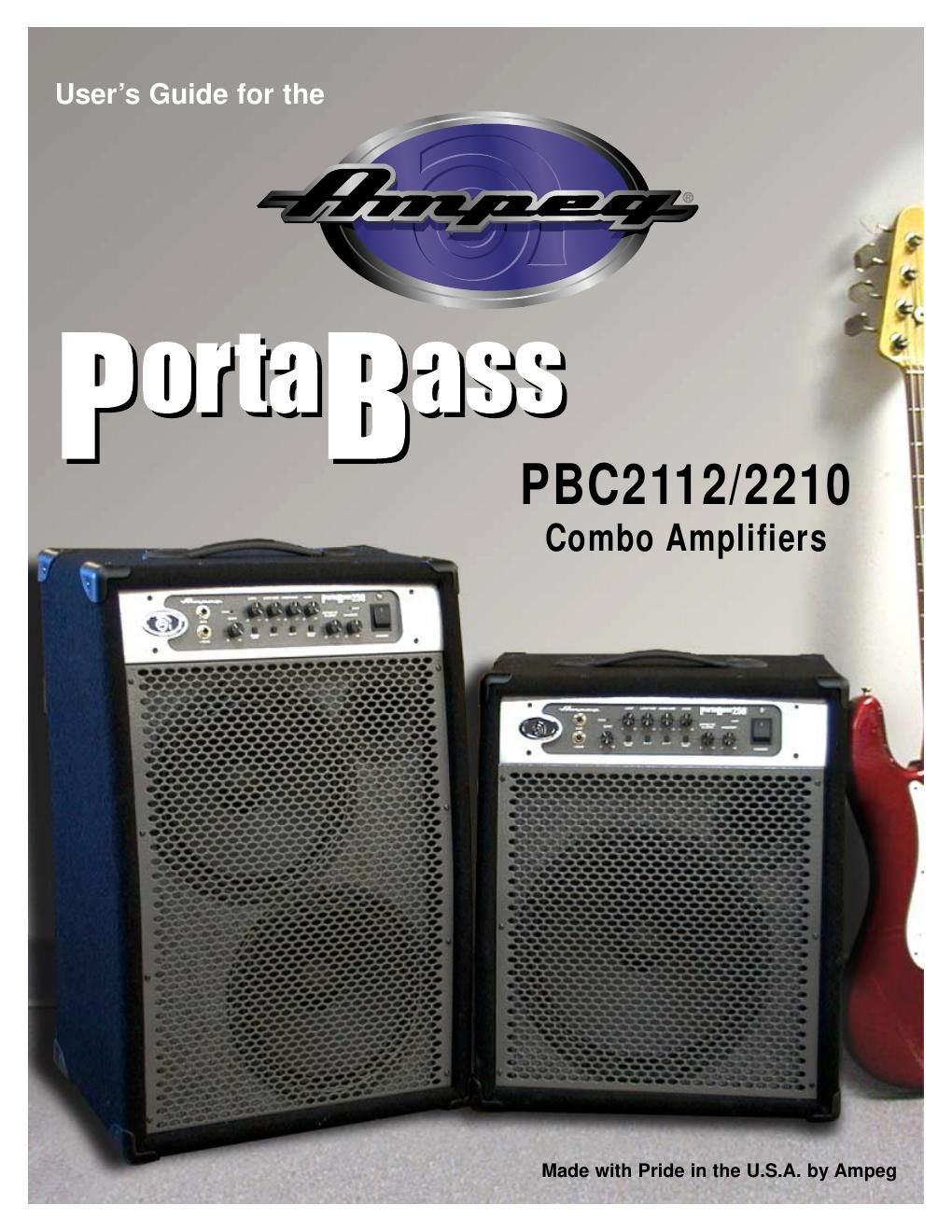

Page 1
2T ABLE OF CONTENTS Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Important Safeguards and Precautions . . . . . . . . . .3 The Front Panel Controls and Their Use . . . . . . . .4 The Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . .5 The Detachable Transport Handle . . . . . . . . . . . . .6 Using the Tilt Back Stand . . . . . . . . . . . . . . . . . . . .6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .7 System Block Diagram . . . . . . . . . . . . . . . . . . . . . .7 Technical Specifications . . . . . . . . . . . . .back cover PBC2112/2210 Porta B ass Combo Amplifiers IMPORTANT SAFETY INSTRUCTIONS -READ, FOLLOW, HEED, AND KEEP ALL INSTRUCTIONS AND WARNINGS.-DO NOT OPERATE NEAR ANY HEAT SOURCE AND DO NOT BLOCK ANY VENTILATION OPENINGS ON THIS APPARATUS. FOR PROPER OPERATION, THIS UNIT REQUIRES 3 (75CM) OF WELL VENTILATED SPACE AROUND HEATSINKS AND OTHER AIR FLOW PROVISIONS IN THE CABINET. -DO NOT USE THIS APPARATUS NEAR SPLASHING, FALLING, SPRAYING, OR STANDING LIQUIDS.-CLEAN ONLY WITH LINT-FREE DAMP CLOTH AND DO NOT USE CLEANING AGENTS.-ONLY CONNECT POWER CORD TO A POLARIZED, SAFETY GROUNDED OUTLET WIRED TO CURRENT ELECTRICAL CODES AND COMPATIBLE WITH VOLTAGE, POWER, AND FREQUENCY REQUIREMENTS STATED ON THE REAR PANEL OF THE APPARATUS. -PROTECT THE POWER CORD FROM DAMAGE DUE TO BEING WALKED ON, PINCHED, OR STRAINED.-UNPLUG THE APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME.-ONLY USE ATTACHMENTS, ACCESSORIES, STANDS, OR BRACKETS SPECIFIED BY THE MANUFACTURER FOR SAFE OPERATION AND TO AVOID INJURY.-THIS APPARATUS DOES NOT OPERATE NORMALLY AND REQUIRES SERVICE WITH ANY PHYSICAL DAMAGE FROM IMPACT OR ANY EXPOSURE TO MOISTURE.-SERVICE MUST BE PERFORMED BY QUALIFIED PERSONNEL.-OUR AMPLIFIERS ARE CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH SOUND PRESSURE LEVELS CAN CAUSE PERMA- NENT HEARING IMPAIRMENT OR LOSS. USER CAUTION IS ADVISED AND EAR PROTECTION IS RECOMMENDED IF UNIT IS OPERATED AT HIGH VOLUME. CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. PRECAUCIONRIESGO DE CORRIENTAZO NO ABRA PRECAUCION: PARA REDUCIR EL RIESGO DE INCENDIOS O DESCARGAS ELECTRICAS, NO PER- MITA QUE ESTE APARATO QUEDE EXPUESTO A LA LLUVIA O LA HUMEDAD. PARA DISMINUOIR EL RIESGO DE CORRIENTAZO. NO ABRA LA CUBIERTA. NO HAY PIEZAS ADENTRO QUE EL USARIO PUEDO REPARAR DEJE TODO MANTENIMIENTO A LOS TECHNICOS CALIFICADOS. ATTENTIONRISQUE D'ELECTROCUTION NE PAS OUVRIR ATTENTION: PROTÉGEZ CET APPAREIL DE LA PLUIE ET DE L'HUMIDITÉ AFIN D'ÉVITER TOUT RISQUE D'INCENDIE OU D'ÉLECTROCUTION. POUR REDUIRE D'ELECTROCUTION NE PAS ENLEVER LE COUVERCLE. AUCUNE PIECE INTERNE N'EST REPRABLE PAR L'UTILISATEUR. POUR TOUTE REPARATION, S'ADRESSER A UN TECHNICIEN QUALIFIE. "IT IS NECESSARY FOR THE USER TO REFER TO THE INSTRUCTION MANUAL" ES NECESARIO QUE EL USUARIO SE REFIERA AL MANUAL DE INSTRUCCIONES. "REFERREZ-VOUS AU MANUAL D'UTILISATION" EXPLANATION OF GRAPHICAL SYMBOLS: EXPLICACION DE SIMBOLOS GRAFICOS: EXPLICATION DES SYMBÔLES GRAPHIQUES: "DANGEROUS VOLTAGE" VOLTAJE PELIGROSO "DANGER HAUTE TENSION"== Thank youfor choosing the Ampeg PBC2112/2210 PortaBass Combo Amplifier. These amplifiers feature Ampegs radical new Micro Dynamic Technology power amp circuitry. This gives you the ultimate combination of power, tone, and portability in a small, lightweight amplifier. Specially designed enclosures – combined with lightweight woofers with powerful Neodymium magnets – produce more bass than anyone could imagine from relatively small cabinets. The enclosures have built-in wheels and a detachable telescoping handle for ultimate portability. A spring-loaded tilt back stand under the front edge of the cabinet allows you to angle the cabinet back a few degrees for increased coverage. In order to obtain maximum performance and enjoyment from your new Ampeg amplifier, please read these instructions prior to its use.
Page 2
3 PBC2112/2210 Porta B ass Combo Amplifiers In the world of high performance bass amps, Ampeg amplifiers stand alone. In true Ampeg tradition, the PBC2112/2210 offers you more power, performance and tone than any other bass amplifier in its class. The out- standing features which set your new amplifier apart from the competition are listed below. -MDT POWER AMP:Micro Dynamic Technology amplifier circuitry provides maximum power in a small, lightweight package – the efficiency of this design eliminates the need for heavy heat sinks, transformers and filter capacitors -FOUR BAND ROTARY EQ:Four bands of equalization and shift controls for the Low and High Mid frequencies provides optimum tone control -ULTRA LOW, ULTRA HIGH SWITCHES:Enhances flexibility and tone control -EFFECTS LOOP:Send and Return jacks are combined with an Effects Blend control for virtually noise-free performance while using your favorite effects -TRANSFORMER BALANCED LINE OUTPUT:XLR jack with level control, ground lift, and a pre/post-EQ switch – for patching into house consoles, mixing boards, or external power amplifiers -1/4 SPEAKER OUTPUT JACK:Use the internal speakers oran external speaker cabinet -NEODYMIUM MAGNETS:Woofers weigh-in as tweeters but put out tonsof low end - BUILT-IN TILT-BACK WHEELS:Heavy duty wheels on the rear bottom edge of the cabinet let you roll this combo amp around with ease -DETACHABLE TELESCOPING HANDLE:For the ultimate in transportation – just grab it and go! - TILT BACK STAND:Spring-loaded tilt back stand for angling the cabinet backwards - MADE WITH PRIDE IN THE U.S.A. Features Important Safeguards and Precautions: All Ampeg products are designed for continuous safe operation, as long as common sense is used and steps are taken to help avoid certain problems. Abiding by the following rules can help prevent damage to your amplifier, yourself, and others. -The amplifier is equipped with a three-pronged AC power cord. To reduce the risk of electrical shock, NEVERremove or otherwise attempt to defeat the ground pin of the power cord. -Connect the amplifier ONLYto a properly grounded AC outlet of the proper voltage for your amp. -Avoid sudden temperature extremes, rain and moisture. Also, avoid sudden and intense impact. (If the unit has been subjected to any of the preceding abuses, have it looked at by an authorized service center.) -NEVERset the amplifier on a support that might give out under its weight. -Always keep the total speaker impedance at or above the rated load. -Unplug the amplifier before cleaning it. NEVER spray liquid cleaners onto the amplifier. Wipe it with a slightly dampened, lint-free cloth to remove dirt and film. -Do not use the amplifier if it has sustained damage to the chassis, controls, or power cord. Refer the unit to an authorized service center for inspection. -Amplifiers capable of producing high volume levels are also capable of inflicting permanent hearing loss or damage, if the exposure to such levels is prolonged. Such damage is progressive and irreversible! Consider using quality hearing protection devices. - Do not transport other or additional equipment with the PortaBass telescoping handle. The handle is designed for use with the PBC2112 and PBC2210 only.
