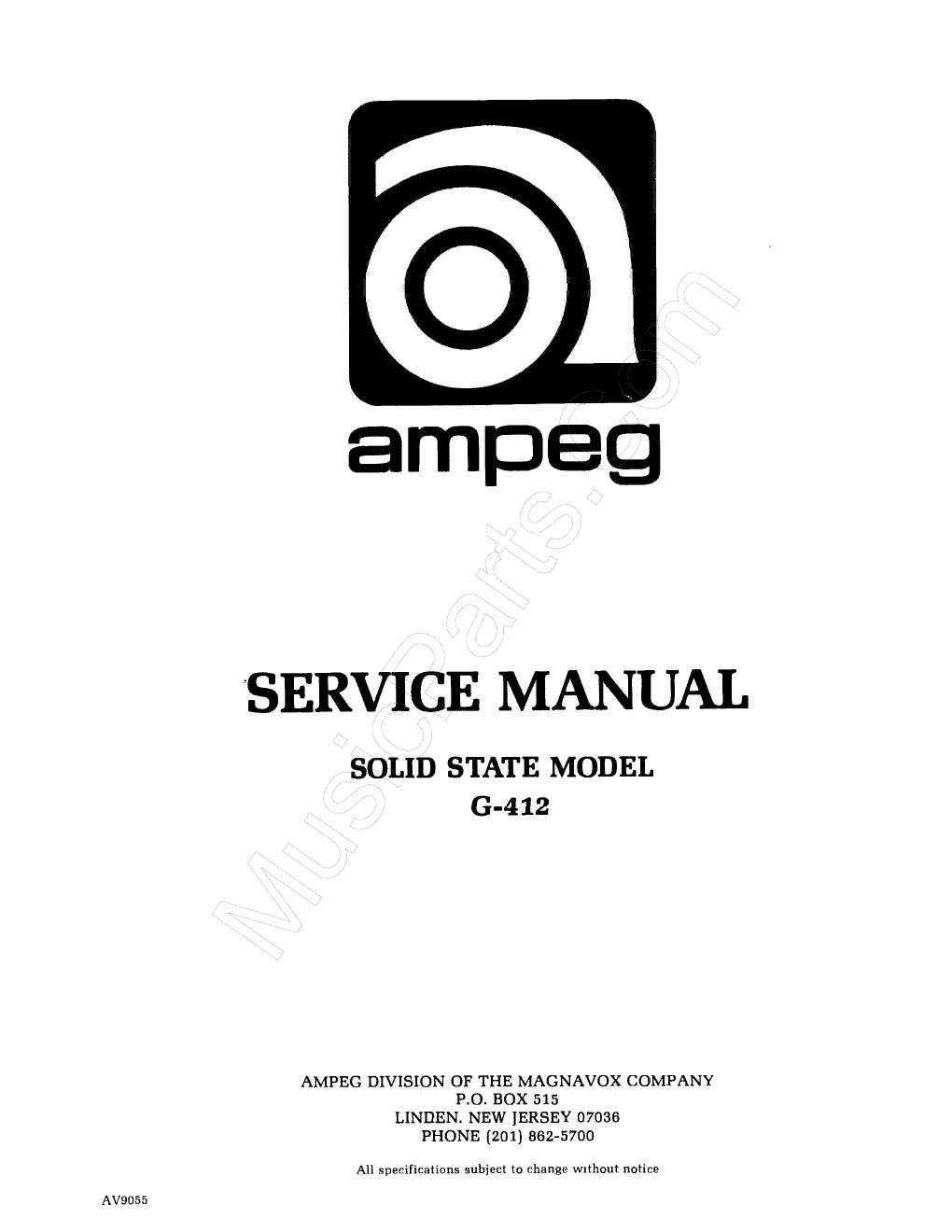

Page 1
ampeg
SERVICE MANUAL
SOLID STATE MODEL
G-412
AMPEG DIVISION OF THE MAGNAVOX COMPANY
P.O. BOX 515
LINDEN. NEW IERSEY 07036
PHONE (201) 862~5700
All specifications subject to change thhout notice
AV9055
Page 2
Model Nos. B115, B410, G212, G410, G412
General Features:
120 Watts RMS Minimum
300 Watts Peak Music Power
Solid State Circuitry
Volume, Treble, Midrange & Bass Controls
Two Channels
Four Inputs - Hi and Lo Gain
Selective Midrange Switch
Ultra Hi Switch
Removable Power Module
8 OHM Impedance
Power Switch
Polarity Switch
Extension Amplifier Jacks
Cord Winder
A.C. Outlet
Tuff Rug Covering
Two 12" Speakers 16 OHMS
Reverb/Tremolo wIth
Double Switch
Dimensions:
271/4 x 239/16 x 121/4
Wt. 75 lbs.
MODELS
6-212, 6-410. (5-412
8-115, 3-410
V6B
One 15 Speaker 8 OHMS
Tuned Bass Reflex Design
Dimensions:
271/4 x 287/8 x 141/4
Wt. 85 lbs.
Four 10 Speakers 32 OHMS
Infinite Baffle Totally Sealed
Enclosure
Mounted Wheels
Dimensions:
271/4 x 361/8 x 141/4
Wt. 108 lbs.
Four 10" Speakers 32 OHMS
Reverb/Tremolo with
Double Switch
Open Back Design
Mounted Wheels
Dimensions:
27-1/4 x 36-1/8 x14-1/4
Wt. 1 10 lbs.
Four 10 Speakers 32 OHMS
Reverb/Tremolo with
Double Switch
Infinite Baffle
Totally Sealed Enclosures
Mounted Wheels
Dimensions:
274/4 x 36-1/8 x 14-1/4
Wt. 118 lbs.
