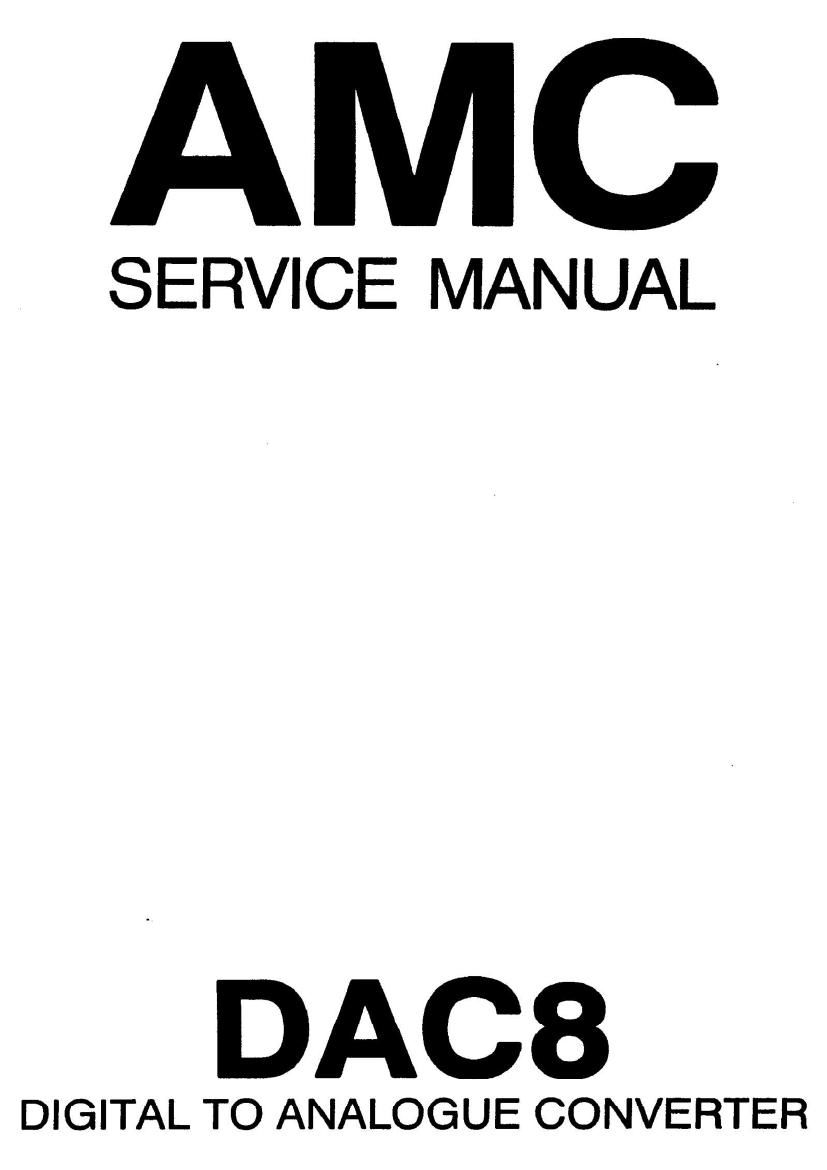

Amc DAC8 dac sm
This is the 7 pages manual for Amc DAC8 dac sm.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Amc DAC8 dac sm (Ocr-read)
Page 2
SPECIFICATIONS
THU 20 Hz - 20khz and SMPTE lMD ................................. 0.005% A-WTD at 2Vrms
Signal to Noise Ration .................. , ..................................... 104dB A" wtd
Ouput Level ........................................................................ 2V rms I
Frequency Response ......................................................... 20 - 20 khz, + - 0.3d8
Channel Separation ........................................................... 90 dB
Resolution .......................................................................... 18 bits
Linearity up to -90 dB ......................................................... +- 0.5 dB
Input automatically locked to 32K. 44.1K and 48KHz SPDIF digital signals.
Dimensions (W x H x D) .................................................... 430 x 82 x 300 mm
Weltronlcs Corp. reserved the right to improve its products at any time, There for, specifications are subject
to change without notice.
