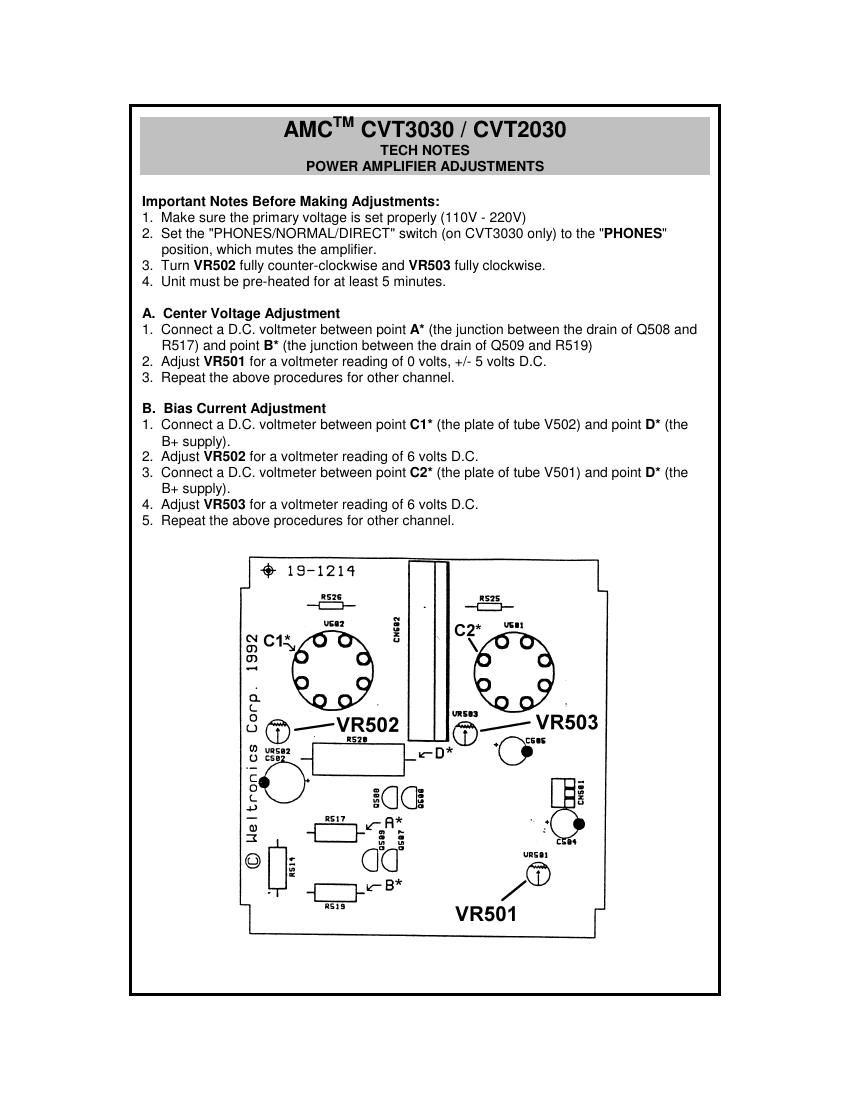

AMCTM CVT3030 / CVT2030
TECH NOTES
POWER AMPLIFIER ADJUSTMENTS
Important Notes Before Making Adjustments:
1,
2.
3.
4. Unit must be preheated for at least 5 minutes.
T>
9w
3!
9w
5"?
Make sure the primary voltage is set properly (110V - 220V)
Set the "PHONES/NORMAL/DIRECT" switch (on CVT3030 only) to the "PHONES"
position, which mutes the amplifier.
Turn VR502 fully counterclockwise and VR503 fully clockwise.
. Center Voltage Adjustment
Connect a D.C. voltmeter between point A (the junction between the drain of 0508 and
R517) and point 8* (the junction between the drain of 0509 and R519)
Adjust VR501 for a voltmeter reading of 0 volts, +/- 5 volts D.C.
Repeat the above procedures for other channel.
. Bias Current Adjustment
Connect a D.C. voltmeter between point 61* (the plate of tube V502) and point D (the
B+ supply).
Adjust VR502 for a voltmeter reading of 6 volts D.C.
Connect a D.C. voltmeter between point 62* (the plate of tube V501) and point D (the
B+ supply).
Adjust VR503 for a voltmeter reading of 6 volts D.C.
Repeat the above procedures for other channel.
J <9 19-1219 L
g c1§ on: g C2\* usu
2
8 CD /v§502 '"/ VR503
ear - 0?"
C ..
:13 200%
E ISXT ("at 4
3 E a r. u
@ 5 00 um:
[:11 K- B* /®
1 "m VR501 -
