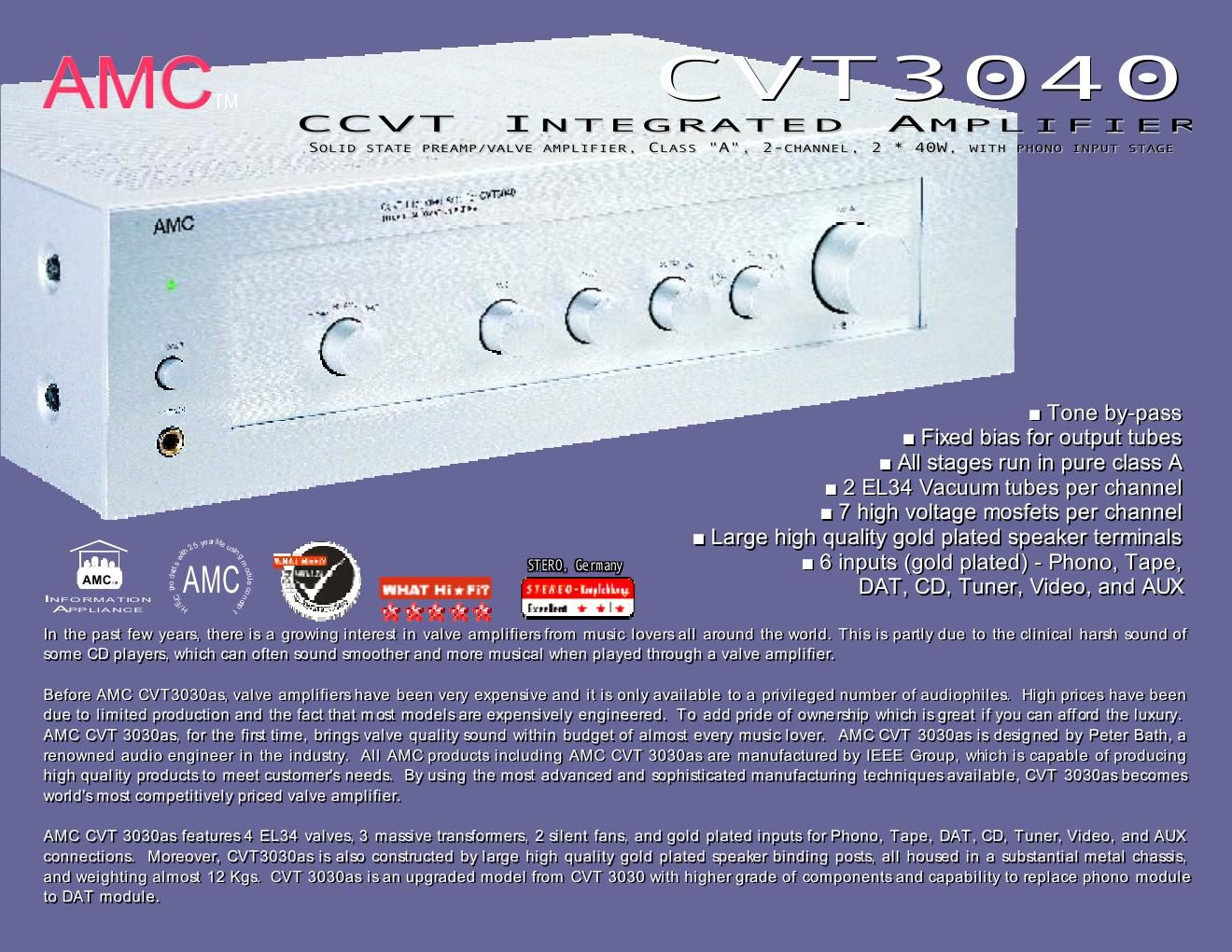

Amc cvt 3040 brochure

Page 1

W elt ronics C orp., U .S.A. D i vi si on of IEEE Gr oup P.O. Box 80584 San M ar i no, C A 91108 626- 799- 6396 voi c e 626- 799- 6541 fax i nfo@amc home.c om www. amc home. c om TM A MC A MC LT - 2445a Rev . A P / N: 21- 2445a*A ©2001 W elt r onic s Cor p. , U. S . A . S PECIFICATION S CVT3040 CCVT I NTEGRATED A MPLIFIE R SOLID STATE PREAMP/VALVE AMPLIFIER , C LASS "A", 2- CHANNEL , 2 * 40W, WITH PHONO INPUT STAGE CVT3 040 S PE CIFICATIONS RATE D POW E R IN T O 8/4 OH M S 30 w/p/c 1 K H Z CLIPPING PO WE R IN T O 4 & 8 O HMS 36 w/p/c THD 45H Z - 20KH Z1% F RE QUE NC Y RESPONSE TON E BYPASS 20 H Z-2 0 K H Z: +/ - 0.5dB N OR MA L 20 H Z-2 0 K H Z: +/ - 1.0dB I NP U T IMP E DANCE HIG H LEVE L IN P U TS : R=20K Ohms C=100pF P HO N O INP U T : R=47K Ohms C=100pF I NP U T SE NS ITIVITY HIG H LEVE L IN P U TS : 180mV P HO N O IN P U T : 2.7mV S IGN A L TO N OIS E RATI O 1 W/8 O HMS (DAT I NP U T ): 80dB (P HO N O IN P U T ): 79dB S EP ARATION 20 H Z-2 0 K H Z>50dB T ON E CO NT RO L RANG E BAS S : +/-8dB at 50Hz T RE BL E : +/-7dB at 10KHz O V E RAL L FE E DBAC K 14dB D IMENSIONS (W X H X D)430mm x 112mm x 250mm N ET W E IGH T 11.8 kgs S HIPPING W E IGH T (2 P IE C E S )31.8Kgs
