Amc b 119 130 brochure
This is the 2 pages manual for amc b 119 130 brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from amc b 119 130 brochure (Ocr-read)

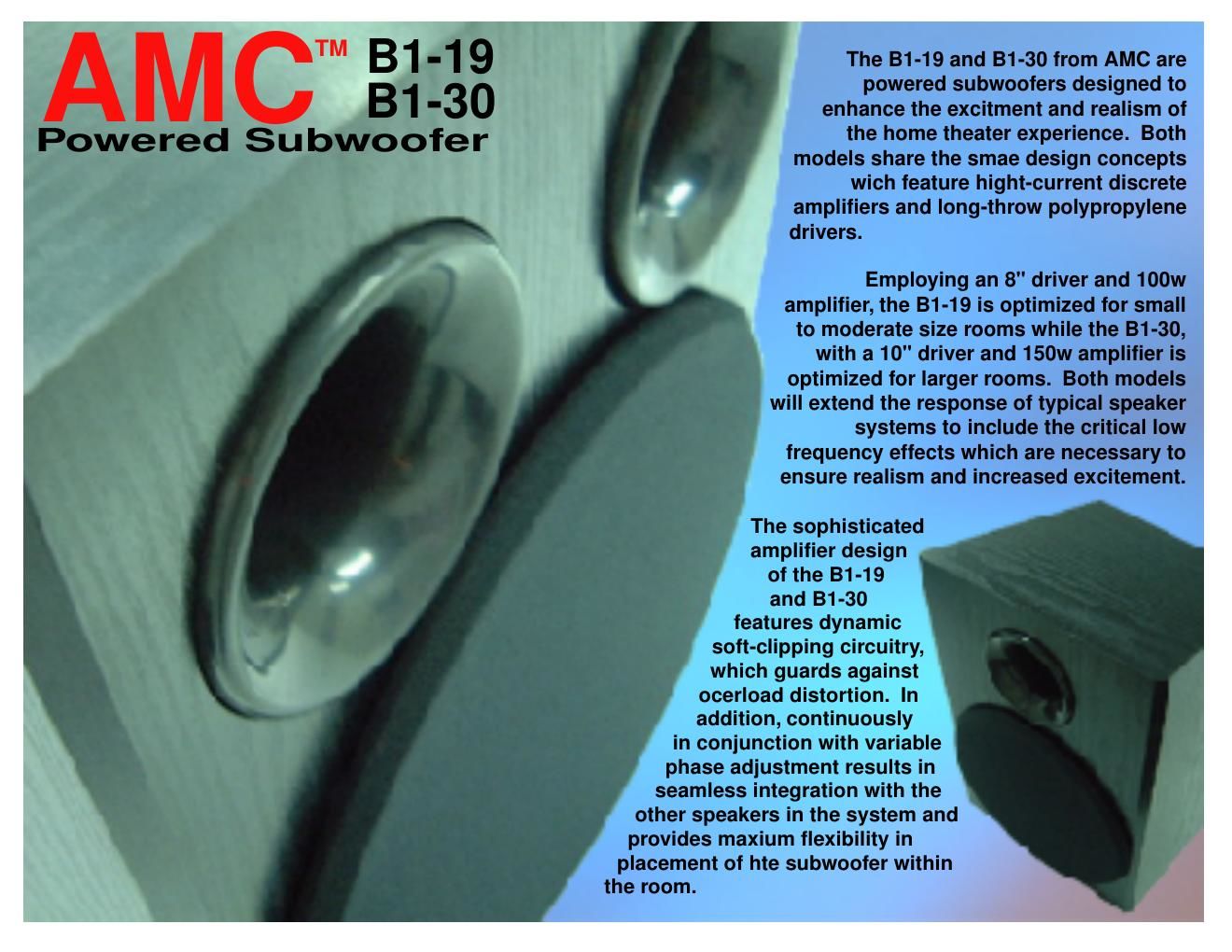

Page 1
Perf ormance/Specifications f or B1-19 Frequency Response: 30-180Hz Adjustable: 40 to 180Hz Sensitivity: 89dB Continuous po wer : 100W@100Hz, 4ohm, 0.1%THD Dynamic po wer : 150W (21.8dBW) THD @ r ated power : 0.008% Max. o/p current: >70A (1mS) S/N @ rated power : 100dB Phase: 0 to 180 adjustab le LPF: 40Hz to 180Hz adjustab le; Butterworth type , -12dB/octa ve<325Hz, -24dB/octa ve>325Hz W oof er: 8" injection polyprop ylene cone Internal v olume: 19 liter Design type: Bass reflex-front port x 1 Dimension (WxHxD): 254x387x280mm Weight: Net 15Kg Shipping 18Kg Finish: Black ash Features: 5-w ay gold-plated binding post-in/out Stereo gold -plated RCA jac k-line in Con. Adjustab le, 0 to 180 deg ree Auto-tur n on/off Soft-clipping f acility Captive power cord One-piece fiberglass doub le side PCB Master power s witch Perf ormance/Specifications f or B1-30 Frequency Response: 30-180Hz Adjustable: 40 to 180Hz Sensitivity: 89dB Continuous po wer : 150W@100Hz, 4ohm, 0.1%THD Dynamic po wer : 250W (24dBW) THD @ r ated power : 0.008% Max. o/p current: >80A (1mS) S/N @ rated power : 100dB Phase: 0 to 180 adjustab le LPF: 40Hz to 180Hz adjustab le; Butterworth type: -12dB/octa ve<325Hz, -24dB/octa ve>325Hz W oof er: 10" injection polyprop ylene cone Internal v olume: 30 liter Design type: Bass reflex-front port x 2 Dimension (WxHxD): 305x420x470mm Weight: Net 20Kg Shipping 23Kg Finish: Black ash Features: 5-w ay gold-plated binding post-in/out Stereo gold -plated RCA jac k-line in Con. Adjustab le, 0 to 180 deg ree Auto-tur n on/off Soft-clipping f acility Captive power cord One-piece fiberglass doub le side PCB Master power s witch Weltr onics Cor p. 1414 S. F air Oaks A ve., Ste #7 S. P asadena, CA 91030 Ph: 626-799-6396 F AX: 626-799-6541 E-mail: info@amchome.com www.amchome.com
