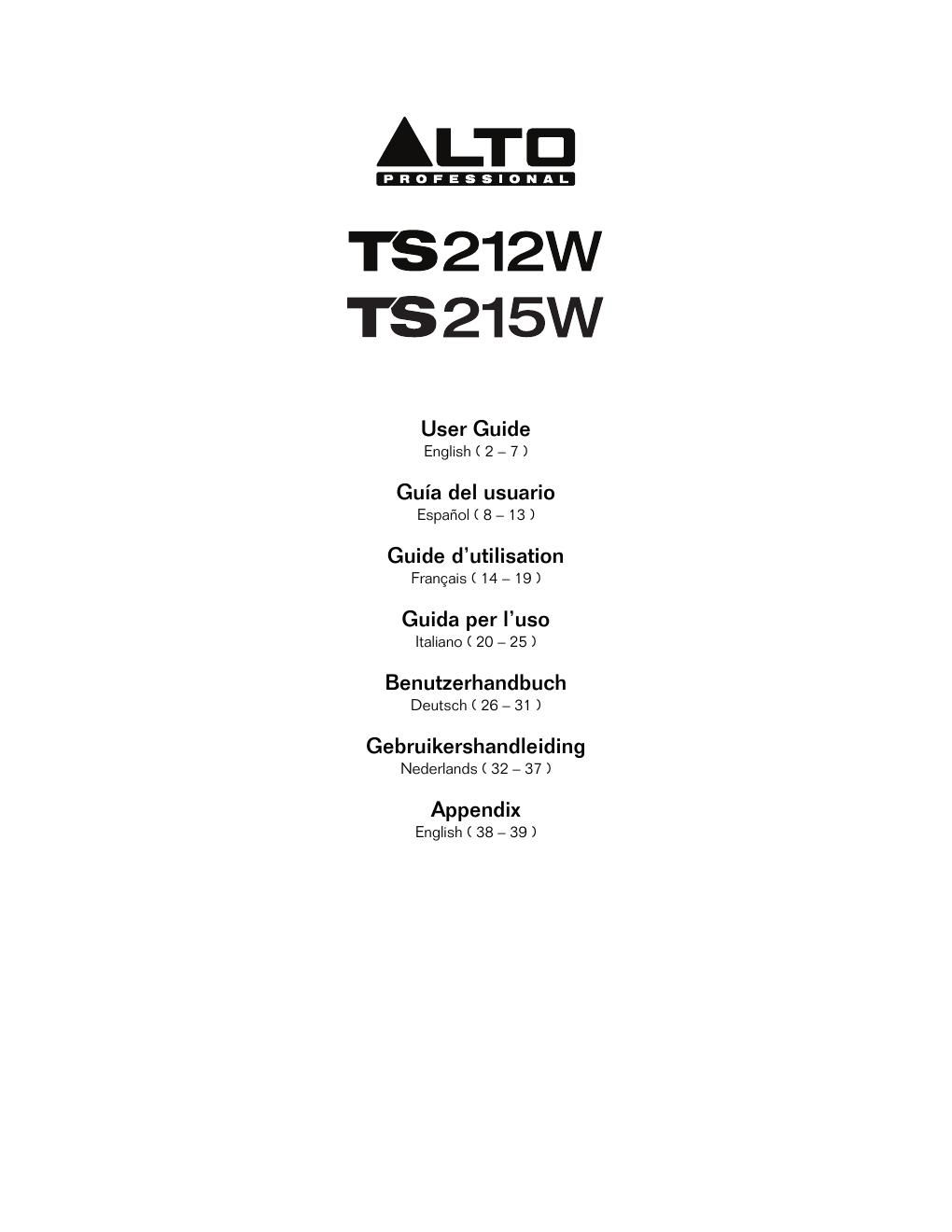

Alto ts 215w user guide
This is the 40 pages manual for alto ts 215w user guide.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from alto ts 215w user guide (Ocr-read)
Page 1
2 User Guide (English) Introduction Box Contents TS2W Series Loudspeaker Power Cable User Guide Safety & Warranty Manual Support For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit altoprofessional.com. Quick Start Items not listed under Introduction > Box Contents are sold separately. Example 1 Press and release the TS2W Series loudspeaker's Pair button. Its LED will flash, and you will hear a tone sequence from the loudspeaker. From your Bluetooth device's settings page, enable Bluetooth and select Alto Pro Wireless as the device. When paired successfully, you will hear a final "confirmation tone" from the loudspeaker and the Pair LED will light continuously. (The first time you do this, the process may take up to 60 seconds.) Note: When using two TS2W Series loudspeakers, you will need to link them wirelessly. The stereo signal will be split between them. Check with your devices manufacturer to see how to set your audio output to mono for a dual mono configuration. Please see Bluetooth > Linking to learn more. Power Smartphone, tablet, etc.
Page 2
3 Example 2 Example 3 Connect the left and right output of your DJ mixer, controller, etc. to Input 1 of each loudspeaker using XLR or 1/4 (6.35 mm) TRS cables. Tip: To send the same mix to both TS2W Series loudspeakers, connect both channels of your DJ mixer, controller, etc. to the Input 1 and Input 2 of one loudspeaker, and then connect that loudspeakers Mix Out to the Input 1 of the other loudspeaker. Both TS2W Series loudspeakers will then play identical summed mono mixes. Microphone Guitar with active pickup Connect a dynamic microphone to the Input 1 using an XLR or 1/4 (6.35 mm) TRS cable. Connect a guitar with an active pickup to the Input 2 using a 1/4 (6.35 mm) TS or TRS cable (see your guitars documentation for cable requirements). Note: When using the TS2W Series loudspeaker with a guitar, we recommend using one with active pickups rather than passive pickups. If you use a guitar with passive pickups, connect it to an external preamp or direct input (DI) box, and connect the line-level output to the loudspeaker. Also, use dynamic microphones with the TS2W Series loudspeaker rather than condenser microphones. If you use a microphone that requires +48 V of phantom power, connect it to an external phantom power supply before connecting it to the loudspeaker. Power DJ controller, Mixer, etc. Power
