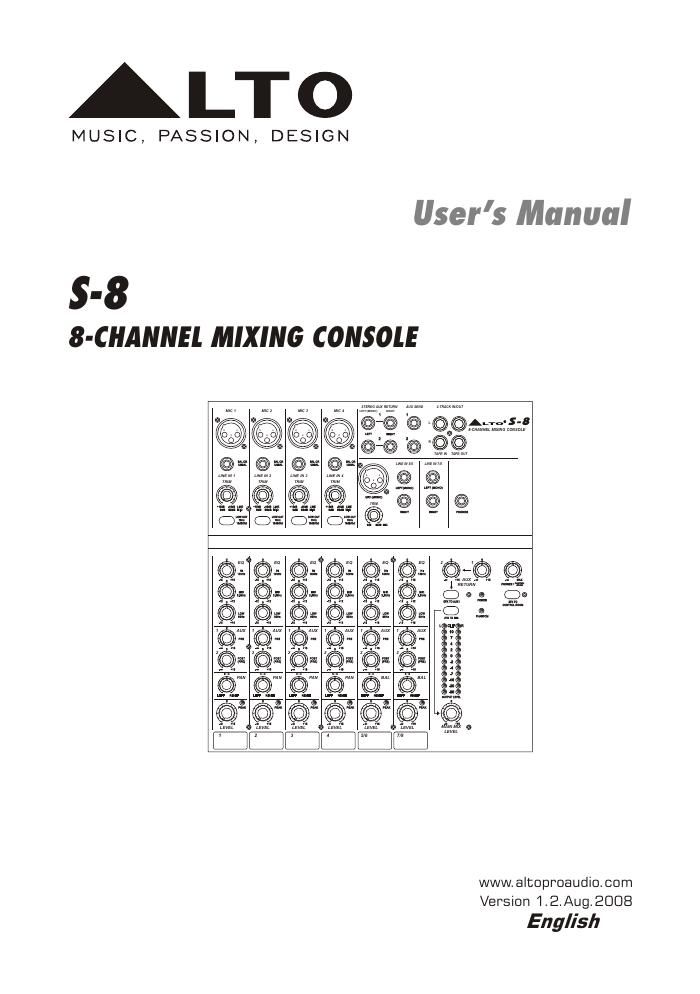

Alto s 8 user manual

Page 2

1. INTRODUCTION.......................................................................1 2. FEATURES..............................................................................2 5. INSTALLATION AND CONNECTION..........................................12 7.BLOCK DIAGRAM..................................................................151. INTRODUCTIONIN THIS MANUAL: Thank you for choosing the ¡¶LTO S-8 8-Channel Mixing Console, which is the result of our ¡¶LTO AUDIO TEAM's endeavours. For the ¡¶LTO AUDIO TEAM, music and audio is more than a profession, it is a passion and an obsession! We have, in fact, been designing professional audio products for a number of years in cooperation with many of the world's major brands. The ¡¶LTO line represents unparalleled analogue and digital products made by musicians, for musicians. With our design centres in Italy, the Netherlands, and the United Kingdom we provide you with world-class designs, while our software development teams continue to develop an impressive range of audio specific algorithms. By purchasing our ¡¶LTO products you become the most important member of our ¡¶LTO AUDIO TEAM. We would like to share with you our passion for what we design and invite you to make suggestions, which will aid us in developing future products for you. We guarantee you our commitment for quality, continual research and development, and of course the best prices. The ¡¶LTO S-8 is an extremely flexible, ultra-low noise 8-channel console, configured with 4 mono and 2 stereo input channels, each channel is equipped with a variety of key features including a warm, natural sounding EQ, Peak LEDs and PAN/BAL control etc..We would like to thank all the people who made the ¡¶LTO S-8 8-Channel Mixing Console possible, especially to our designers and ¡¶LTO staff. It is their passion for music and professional audio that has made it possible for us to offer you, our most important team member, our continued support. 1 9.WARRANTY...........................................................................176. FOR THE EXPERTS WHO WANT TO KNOW MORE......................14 4. CONTROL ELEMENTS.................................................................33. READY TO START?....................................................................2 8.TECHNICAL SPECIFICATION....................................................16
