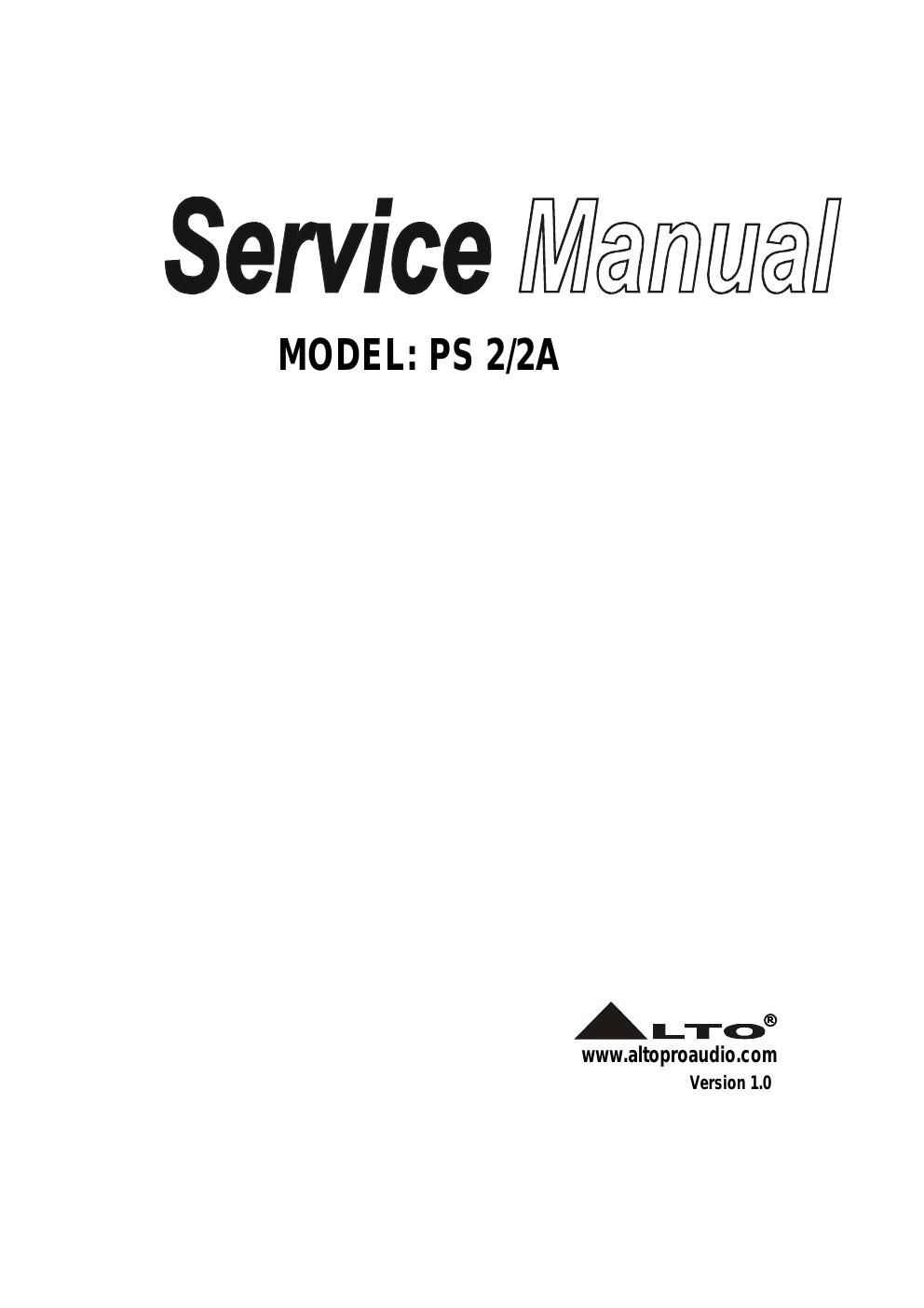

Alto ps 2 ps 2a
This is the 24 pages manual for alto ps 2 ps 2a.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from alto ps 2 ps 2a (Ocr-read)
Page 2
1. Introduction P82
These cabinets is designed for professional stage performance . The special
handle shows unique Italy style.With the accurate crossover point made the
timbre very clean.
lt adopt special horn in polypropylene reinforced. With wide directional angle
90°H i 45°V ( 1kHz - 16kHz), and PS 2TW AES 150Watt PEAK 300Watt .
Matching the 10 6 Ohm 80-160W woofer with 15W 8 Ohm tweeter made the
acoustics of the cabinet clean and the bass strong. All these characters made
it very suitable for any place.
PSZA
These cabinets is designed for professional stage performance . The special
handle shows unique Italy style. With the accurate crossover point made the
timbre very clean.
lt adopt special horn in polypropylene reinforced. With wide directional angle
90°H i45°V ( 1kHz - 16kHz), and PS 2A LOW Output Power 150Watt Class
AB / HIGH Output Power 50Watt Class AB. All these characters made it very
suitable for any place. The main amplifier functions as following:
.One input volume control
.One set of 66.3 stereo MIC inlet
0 One set of balanced outlet
.Clip indicators input signal level
.Overload l] overheat protection
