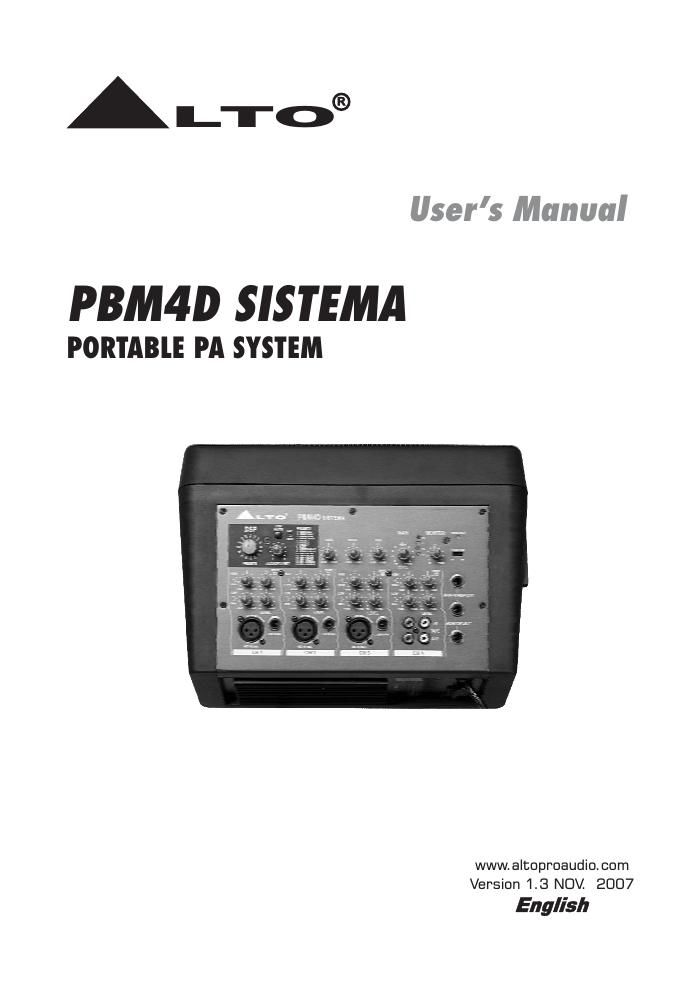

Alto pbm 4d sistema users manual
This is the 17 pages manual for alto pbm 4d sistema users manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from alto pbm 4d sistema users manual (Ocr-read)
Page 1
CAUTION RISK OF ELECTRIC SHOCKDO NOT OPEN IMPORTANT SAFETY INSTRUCTION TO REDUCE THE RISK OF ELECTRIC SHOCK PLEASE DO NOT REMOVE THE COVER OR THE BACK PANEL OF THIS EQUIPMENT. THERE ARE NO PARTS NEEDED BY USER INSIDE THE EQUIPMENT. FOR SERVICE, PLEASE CONTACT QUALIFIED SERVICE CENTERS. WARNING To reduce the risk of electric shock and fire, do not expose this equipment to moisture or rain. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Dispose of this product should notbeplacedinmunicipalwaste and should be separate collection. 11. 12. MovethisEquipmentonlywithacart, stand, tripod, or bracket, specified by the manufacturer, or sold with the Equipment. When a cart is used, use caution when moving the cart / equipment combination to avoid possible injury from tip over. Permanent hearing loss may be caused by exposure to \ extremely high noise levels. The US. Government's Occupational Safety and Health Administration (OSHA) has specified the permissible exposure to noise level. These are shown in the following chart: According to OSHA, an exposure to high SPL in excess of these limits may result in the loss of heat. To avoid the potential damage of heat, it is recommended that Personnel exposed to equipment capable of generating high SPL use hearing protection while such equipment is under operation. This symbol, wherever used, alerts you to the presence of un insulated and dangerous voltages within the product enclosure. These are voltages that may be sufficient to constitute the risk of electric shock or death. This symbol, wherever used, alerts you toimportant operating and maintenance instructions. Please read. Protective Ground TerminalAC mains (Alternating Current)Hazardous Live Terminal ON: Denotes the product is turned on. OFF: Denotes the product is turned off. The apparatus shall be connected to a mains socket outlet with a protective earthing connection. The mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. CAUTION Describes precautions that should be observed to prevent damage to the product. Read this Manual carefully before operation. Keep this Manual in a safe place. Be aware of all warnings reported with this symbol. Keep this Equipment away from water and moisture. Clean it only with dry cloth. Do not use solvent or other chemicals. Do not damp or cover any cooling opening. Install the equipment only in accordance with the Manufacturer's instructions. Power Cords are designed for your safety. Do not remove Ground connections! If the plug does not fit your AC outlet, seek advice from a qualified electrician. Protect the power cord and plug from any physical stress to avoid risk of electric shock. Do not place heavy objects on the power cord. This could cause electric shock or fire. Unplug this equipment when unused for long periods of time or during a storm. Refer all service to qualified service personnel only. Do not perform any servicing other than those instructions contained within the User's Manual. To prevent fire and damage to the product, use only the recommended fuse type as indicated in this manual. Do not short circuit the fuse holder. Before replacing the fuse, make sure that the product is OFF and disconnected from the AC outlet. HOURS X DAY EXAMPLE 8 6 4 3 2 1,5 1 0,5 0,25 or less SPL 90 92 95 97 100 102 105 110 115 Small gig train Subway train High level desktop monitorsClassic music concert Rock concert
Page 2
1 IN THIS MANUAL: 1. INTRODUCTION Thank you for purchasing the amazing portable PA system PBM4D SISTEMA. This system is small enough to fit into any airplane's overhead storage compartment yet being flexible and powerful enough to be used for small gigs and professional multimedia presentations. PBM4D SISTEMA includes a 45+45 watt stereo amplifier, a 5-channel mixer, and 2x5" full range speakers. The chassis is made by moulded polypropylene for shock and moisture protection. Your PBM4D SISTEMA is the ideal tool for: Multimedia Presentations, Weddings, Small Church Functions, Gym, Music Rehearsal, Small Gigs, School Functions, and more . Yo u r P B M 4 D SISTEMA also includes a 24 Bit digital multieffect with 16 Factory Presets. Enjoy your PBM4D SISTEMA and make sure to read this Manual carefully before operation! 2. FEATURES Modern design & Lightweight 2x5" full range speakers 3-band equalizer on input channels 5 Input channels with individual Volume control and 2 bands EQ 3 bands Master EQ Compact moulded polypropylene case 2 RCA Line Inputs 2 RCA Line Outputs Monitor/Headphone output Monitor/Headphone level control 2 powered output (45+45 watt) for optional external speakers 3 XLR microphone Inputs with phantom power(+15V) 1. INTRODUCTION................................................................................1 2. FEATURES.......................................................................................1 4. CONTROL ELEMENTS......................................................................5 5. INSTALLATION & CONNECTION........................................................9 7. BLOCK DIAGRAM..........................................................................12 8. TECHNICAL SPECIFICATIONS...........................................................13 9. WARRANTY..................................................................................14 3. QUICK START..................................................................................3 6. PRESET LIST ...................................................................................11 16-preset digital effect processor
