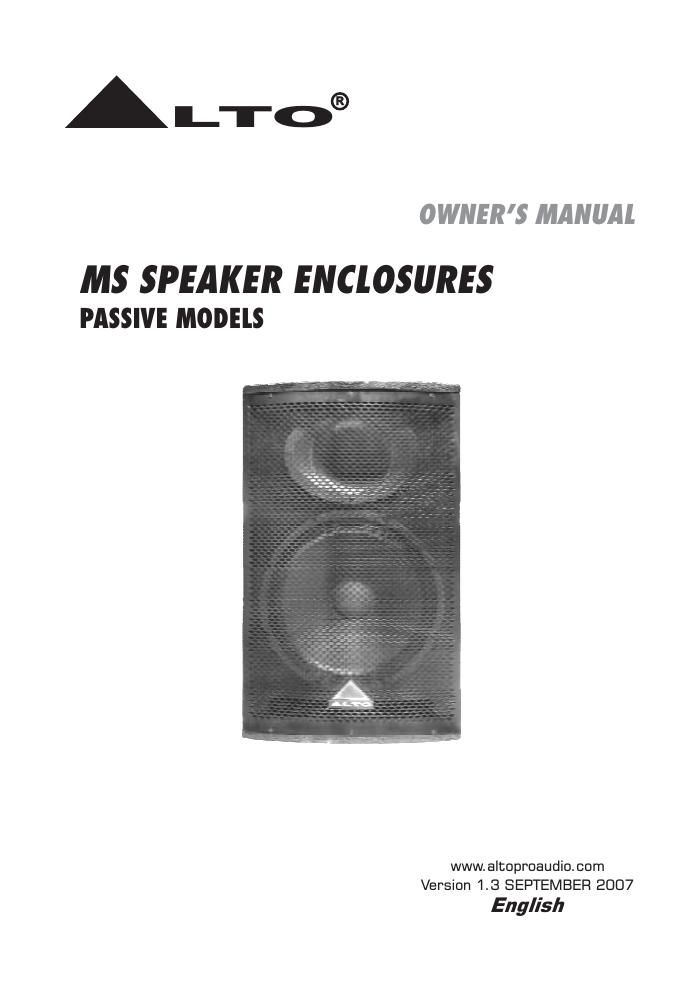

Alto ms speaker enclosures user guide
This is the 14 pages manual for alto ms speaker enclosures user guide.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from alto ms speaker enclosures user guide (Ocr-read)
Page 1
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN IMPORTANT SAFETY INSTRUCTION TO REDUCE THE RISK OF ELECTRIC SHOCK PLEASE DO NOT REMOVE THE COVER OR THE BACK PANEL OF THIS EQUIPMENT. THERE ARE NO PARTS NEEDED BY USER INSIDE THE EQUIPMENT. FOR SERVICE, PLEASE CONTACT QUALIFIED SERVICE CENTERS. WARNING To reduce the risk of electric shock and fire, do not expose this equipment to moisture or rain. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Dispose of this product should notbeplacedinmunicipalwaste and should be separate collection. 11. 12. MovethisEquipmentonlywithacart, stand, tripod, or bracket, specified by the manufacturer, or sold with the Equipment. When a cart is used, use caution when moving the cart / equipment combination to avoid possible injury from tip-over. Permanent hearing loss may be caused by exposure to \ extremely high noise levels. The US. Government's Occupational Safety and Health Administration (OSHA) has specified the permissible exposure to noise level. These are shown in the following chart: HOURS X DAY EXAMPLE According to OSHA, an exposure to high SPL in excess of these limits may result in the loss of heat. To avoid the potential damage of heat, it is recommended that Personnel exposed to equipment capable of generating high SPL use hearing protection while such equipment is under operation. 8 6 4 3 2 1,5 1 0,5 0,25 or lessSPL 90 92 95 97 100 102 105 110 115Small gig train Subway train High level desktop monitorsClassic music concert Rock concert This symbol, wherever used, alerts you to the presence of un-insulated and dangerous voltages within the product enclosure. These are voltages that may be sufficient to constitute the risk of electric shock or death. This symbol, wherever used, alerts you to important operating and maintenance instructions. Please read. Protective Ground TerminalAC mains (Alternating Current)Hazardous Live Terminal ON: Denotes the product is turned on. OFF: Denotes the product is turned off. The apparatus shall be connected to a mains socket outlet with a protective earthing connection. The mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. CAUTION Describes precautions that should be observed to prevent damage to the product. Read this Manual carefully before operation. Keep this Manual in a safe place. Be aware of all warnings reported with this symbol. Keep this Equipment away from water and moisture. Clean it only with dry cloth. Do not use solvent or other chemicals. Do not damp or cover any cooling opening. Install the equipment only in accordance with the Manufacturer's instructions. Power Cords are designed for your safety. Do not remove Ground connections! If the plug does not fit your AC outlet, seek advice from a qualified electrician. Protect the power cord and plug from any physical stress to avoid risk of electric shock. Do not place heavy objects on the power cord. This could cause electric shock or fire. Unplug this equipment when unused for long periods of time or during a storm. Refer all service to qualified service personnel only. Do not perform any servicing other than those instructions contained within the User's Manual. To prevent fire and damage to the product, use only the recommended fuse type as indicated in this manual. Do not short-circuit the fuse holder. Before replacing the fuse, make sure that the product is OFF and disconnected from the AC outlet.
Page 2
IN THIS MANUAL: 1. INTRODUCTION................................................................................................ 1 2. QUICK START - PASSIVE SPEAKER CABINETS..................................................... 2 3. ..................................................................... 5 LTO MS1 SPEAKER MODELLER 4. PANEL DESCRIPTIONS .....................................................................................6 5. WIRE CONNECTIONS........................................................................................ 7 6. TECHNICAL SPECIFICATION............................................................................... 8 7. WARRANTY ....................................................................................................11 1. INTRODUCTION 1 Enjoy your MS passive speaker and make sure to read this Manual carefully before operation! Thank you for your purchasing LTO MS series passive speaker system. This series includes MS series cabinet and LTO MS1 speaker modeller. The MS series speaker cabinets are specifically designed for using in hi-quality performance site and the precise sound reinforcement commercial place. It includes five full-range cabinets (MS12, MS15, MS152, MS153, and MS154) and two subwoofers (MS15S, MS18S). This series uses trapezium configuration which greatly decreases the resonance of the standing wave in the cabinet. The cabinets use hi-density matrix spray-paint technics and the bottom bracket design which makes mounting quickly and flexibly. HF compression driver and vented LF for fully professional performance. The LTO MS1 speaker modeller is designed for using together with MS series passive speaker cabinet. It has built-in 16 EQ curves which are suitable for different applications and are convenient for users to select the presets as need. When the nonprofessionals use it, they also can obtain optimal effects. It uses external power which can effectively decreases the power noise. Not only can it be used with the MS series cabinet, but also can be used as a EQ together with the other sound equipments.
