Alto macro 2400
This is the 38 pages manual for alto macro 2400.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from alto macro 2400 (Ocr-read)

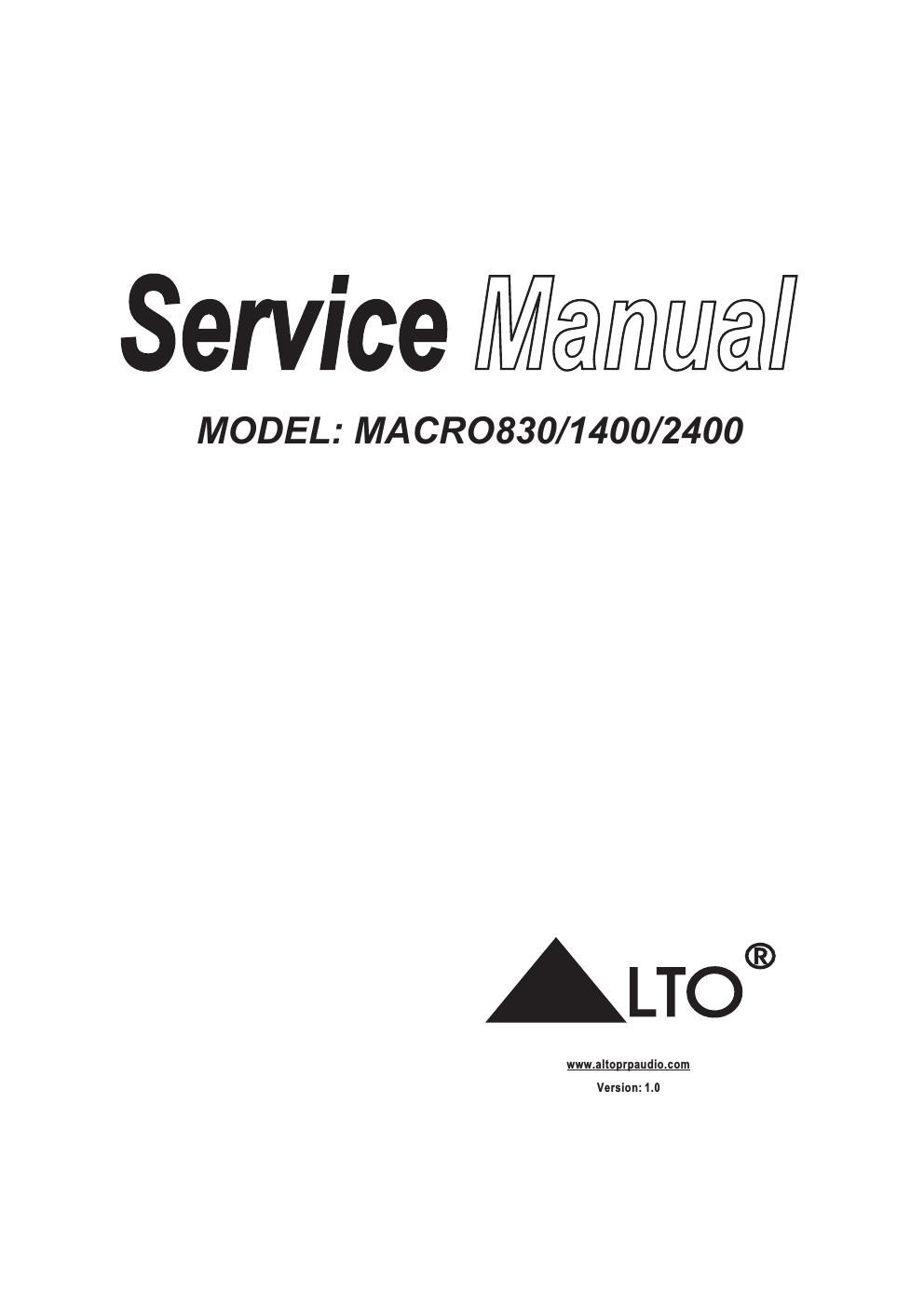

Page 1
Service [Mammal]
MODEL: MA CR0830/1400/2400
Version 1111
Page 2
CONTENTS
1. Specification ............................................ 2-4
2. Block Diagram .......................................... 5-6
3. Schematic Diagram ................................... 7-16
4. Printed Circuit Board ................................. 17-27
5. Wiring Diagram ........................................ 28-30
6. Test Procedure ......................................... 31
7. Electrical Parts List ................................... 32-35
8. Exploded Views ........................................ 36
9. Exploded Views Part List ........................... 37
