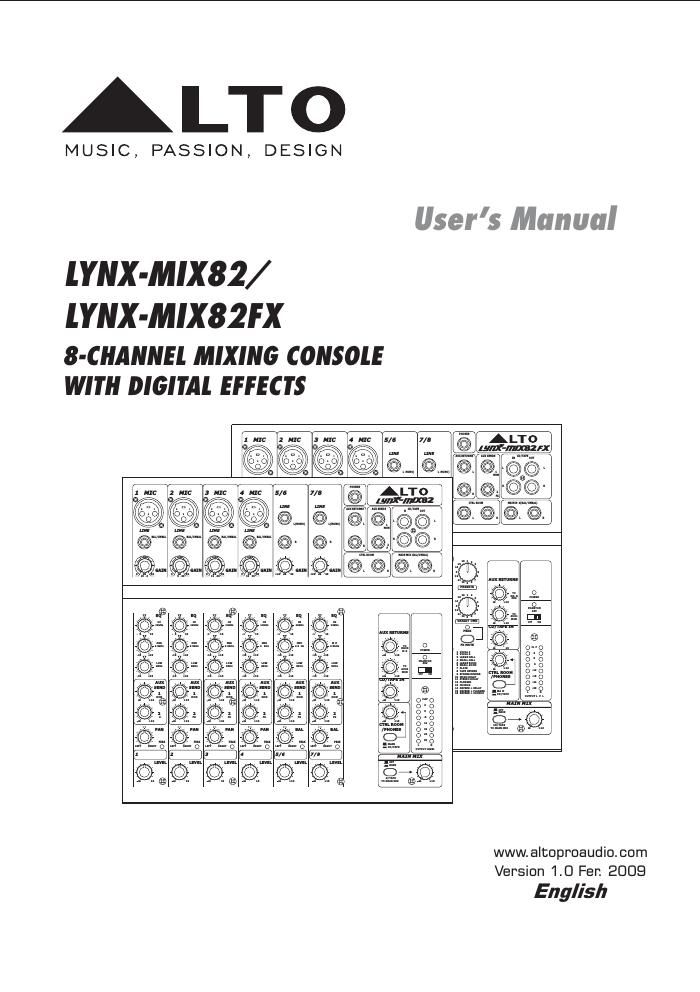

Alto lynx mix82 fx users manual
This is the 19 pages manual for alto lynx mix82 fx users manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from alto lynx mix82 fx users manual (Ocr-read)
Page 1
CAUTION RISK OF ELECTRIC SHOCKDO NOT OPEN TO REDUCE THE RISK OF ELECTRIC SHOCK PLEASE DO NOT REMOVE THE COVER OR THE BACK PANEL OF THIS EQUIPMENT. THERE ARE NO PARTS NEEDED BY USER INSIDE THE EQUIPMENT. FOR SERVICE, PLEASE CONTACT QUALIFIED SERVICE CENTERS. WARNING To reduce the risk of electric shock and fire, do not expose this equipment to moisture or rain. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Dispose of this product should notbeplacedinmunicipalwaste and should be separate collection. 11. 12. MovethisEquipmentonlywithacart, stand, tripod, or bracket, specified by the manufacturer, or sold with the Equipment. When a cart is used, use caution when moving the cart / equipment combination to avoid possible injury from tip over. Permanent hearing loss may be caused by exposure to \ extremely high noise levels. The US. Government's Occupational Safety and Health Administration (OSHA) has specified the permissible exposure to noise level. These are shown in the following chart: According to OSHA, an exposure to high SPL in excess of these limits may result in the loss of heat. To avoid the potential damage of heat, it is recommended that Personnel exposed to equipment capable of generating high SPL use hearing protection while such equipment is under operation. This symbol, wherever used, alerts you to the presence of un insulated and dangerous voltages within the product enclosure. These are voltages that may be sufficient to constitute the risk of electric shock or death. This symbol, wherever used, alerts you toimportant operating and maintenance instructions. Please read. Protective Ground Terminal AC mains (Alternating Current) Hazardous Live Terminal ON: Denotes the product is turned on. OFF: Denotes the product is turned off. The apparatus shall be connected to a mains socket outlet with a protective earthing connection. The mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. CAUTION Describes precautions that should be observed to prevent damage to the product. Read this Manual carefully before operation. Keep this Manual in a safe place. Be aware of all warnings reported with this symbol. Keep this Equipment away from water and moisture. Clean it only with dry cloth. Do not use solvent or other chemicals. Do not damp or cover any cooling opening. Install the equipment only in accordance with the Manufacturer's instructions. Power Cords are designed for your safety. Do not remove Ground connections! If the plug does not fit your AC outlet, seek advice from a qualified electrician. Protect the power cord and plug from any physical stress to avoid risk of electric shock. Do not place heavy objects on the power cord. This could cause electric shock or fire. Unplug this equipment when unused for long periods of time or during a storm. Refer all service to qualified service personnel only. Do not perform any servicing other than those instructions contained within the User's Manual. To prevent fire and damage to the product, use only the recommended fuse type as indicated in this manual. Do not short circuit the fuse holder. Before replacing the fuse, make sure that the product is OFF and disconnected from the AC outlet. HOURS X DAY EXAMPLE 8 6 4 3 2 1,5 1 0,5 0,25 or less SPL 90 92 95 97 100 102 105 110 115 Small gig train Subway train High level desktop monitorsClassic music concert Rock concert IMPORTANT SAFETY INSTRUCTION
Page 2
1 IN THIS MANUAL: 1. INTRODUCTION........................................................................1 2. FEATURES...............................................................................1 3. QUICK START...........................................................................4 4. CONTROL ELEMENTS...............................................................5 5. INSTALLATION & CONNECTION................................................11 6. APPENDIX.............................................................................13 7. PRESET LIST.........................................................................13 8. BLOCK DIAGRAM...................................................................14 9. TECHNICAL SPECIFICATIONS....................................................15 10. WARRANTY.........................................................................16 1. INTRODUCTION 2. FEATURES Thank you for purchasing the LTO LYNX-MIX82(FX) 8-channel mixing console with 24-bit digital multi-effect. It is just one of the many Alto products that a talented, multinational Team of Audio Engineers and Musicians have developed with their great passion for music. Your LYNX-MIX82(FX) is a remarkable compact mixing desk that does not find many equals in the market today. With 4 microphone and 2 stereo Line-level inputs for small live performances, small studio recording and general PA applications, your LYNX-MIX82(FX) also includes a 24-Bit digital multi- effect with 16 Factory Presets . There is a three bands EQ on all input channels and separate Main Mix and Control Room outputs for operation with different volume settings. Use it for small GIGs and RECORDING. Your LYNX-MIX82(FX) also is a flexible tool for your Multi-media presentations. Enjoy your LYNX-MIX82(FX) and make sure to read this Manual carefully before operation! 4 MIC input channels with gold plated XLR and balanced LINE input 2 stereo input channels with balanced TRS jacks Ultra-low noise discrete MIC pre-amps with +48V Phantom power Extremely high headroom offering e xtra dynamic range Balanced inputs for optimal signal integrity W arm, natural 3-band EQ on each channel Built-in 24 bits digital effects processor(F or LYNX-MIX82FX Model) P eak LED on each channel 2 AUX sends pre channel for e xternal effects and monitoring Main output, Control room and headphone outputs 2- Track inputs assignable to main mix, control room/headphone outputs Highly accurate 8-segment bar graph meters
