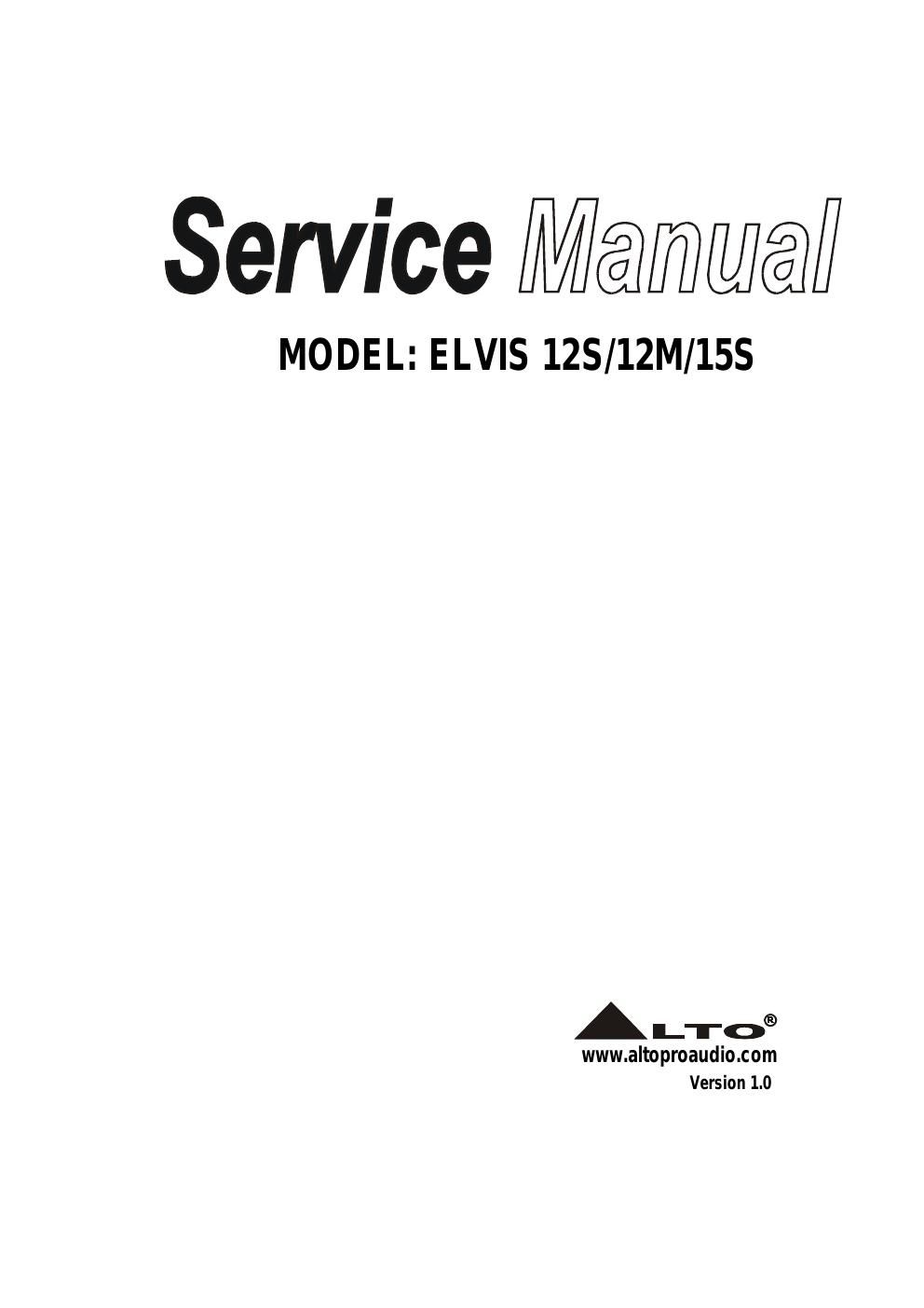

Alto elvis 12m service manual
This is the 26 pages manual for alto elvis 12m service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from alto elvis 12m service manual (Ocr-read)
Page 1
CONTENT 1. Introduction…………………………......………\ …………………………….…….1 2. Specification……………………......………………\ ………………………….…...2 3. Block Diagram……………………………......…………\ ………………….……....34. Schematic Diagram…………………………………......……\ ……………….…...5 5. PCB Layout..............................................................\ ............................................7 6. Exploded View & Mechanical Parts List………….......……………….…..10 7. BOM…..................................................................………………............……….16
Page 2
1. Introduc tion T hese cabinet s is designed for professional stage performance .Using density Particle Board and high quality carpet for the body of the cabinet made it more durable .The special handle shows unique Italy style. With the accurate crossover poi nt made the timbre very clean. ES12M adopt special horn in polypropylene reinforced. With wide directional angle 80°±10°(1KHZ -16KHZ) and 180W AES/360W Peak power. Matching the ELVIS 12S/15S(SUB WOOFER) with ELVIS 12/15 made the acoustics of the cabinet cle an and the bass strong. All these character s made it very suitable for any place.
