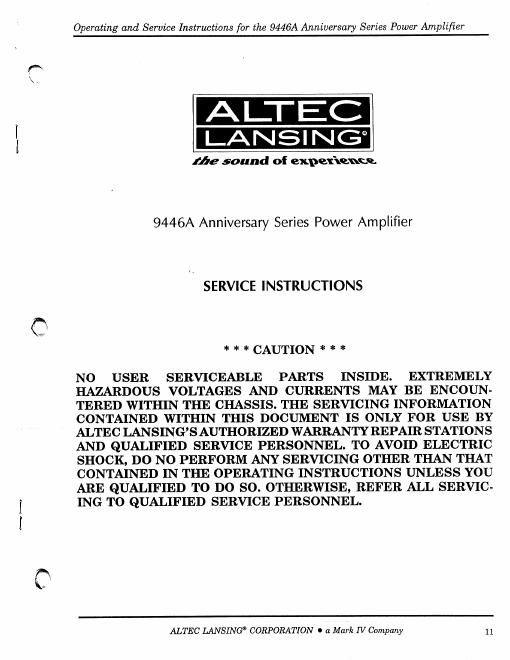

Operating and Service Instructions for the 9446A Anniversary Series Power Amplifier
LANSING"
tfie sound of expefuzxxuz.
ALTEC
-
9446A Anniversary Series Power Amplifier
SERVICE INSTRUCTIONS
* * * CAUTION * * *
NO USER SERVICEABLE PARTS INSIDE. EXTREMELY
HAZARDOUS VOLTAGES AND CURRENTS MAY BE ENCOUN-
TERED WITHIN THE CHASSIS. THE SERVICING INFORMATION
CONTAINED WITHIN THIS DOCUMENT IS ONLY FOR USE BY
ALTEC LANSINGS AUTHORIZED WARRANTY REPAIR STATIONS
AND QUALIFIED SERVICE PERSONNEL. TO AVOID ELECTRIC
SHOCK, DO NO PERFORM ANY SERVICING OTHER THAN THAT
CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU
ARE QUALIFIED TO DO SO. OTHERWISE, REFER ALL SERVIC-
ING TO QUALIFIED SERVICE PERSONNEL.
